MECHANICAL
01–10–10
Drive Plate (ATX), Flywheel (MTX) Disassembly Note
1. Hold the crankshaft using the SST.
2. Remove the bolts in several passes.
End Of Sie

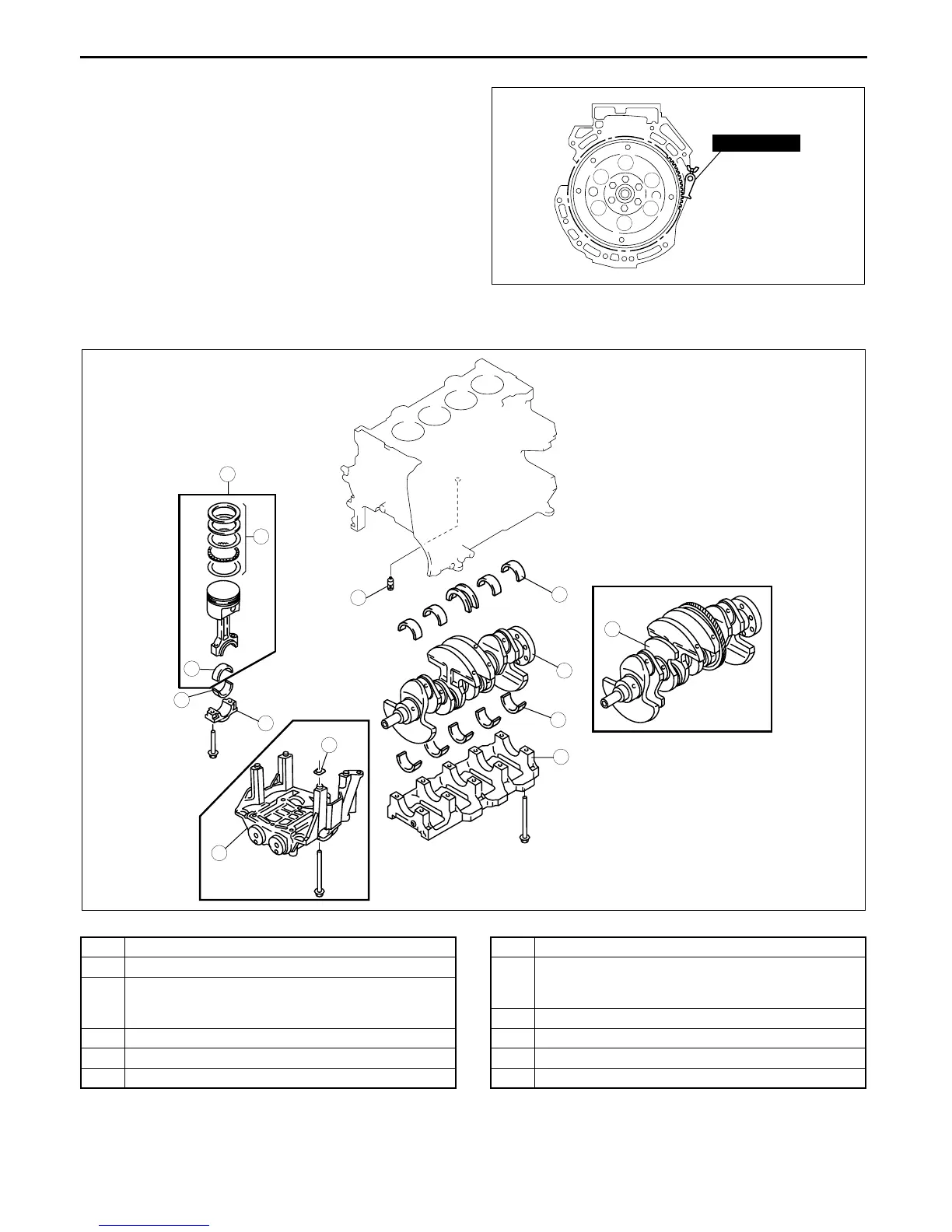

CYLINDER BLOCK (II) DISASSEMBLY
E5U011002000E07
1. Disassemble in the order indicated in the table. .
1
2
3
4
5
6
49 E011 1A0
B3E0110E051
9
8
7
5
4
3
1
2
10
6
11
12
L3
L3
10
E5U110ZE7S07
1 Balancer unit
2 Adjustment shim
3 Connecting rod cap
(See 01–10–11 Connecting Rod Cap Disassembly
Note.)
4 Lower connecting rod bearing
5 Connecting rod, Piston component
6 Piston ring
7 Upper connecting rod bearing
8 Main bearing cap
(See 01–10–11 Main Bearing Cap Disassembly
Note.)
9 Lower main bearing, thrust bearing
10 Crankshaft
11 Upper main bearing, thrust bearing
12 Oil jet valve
