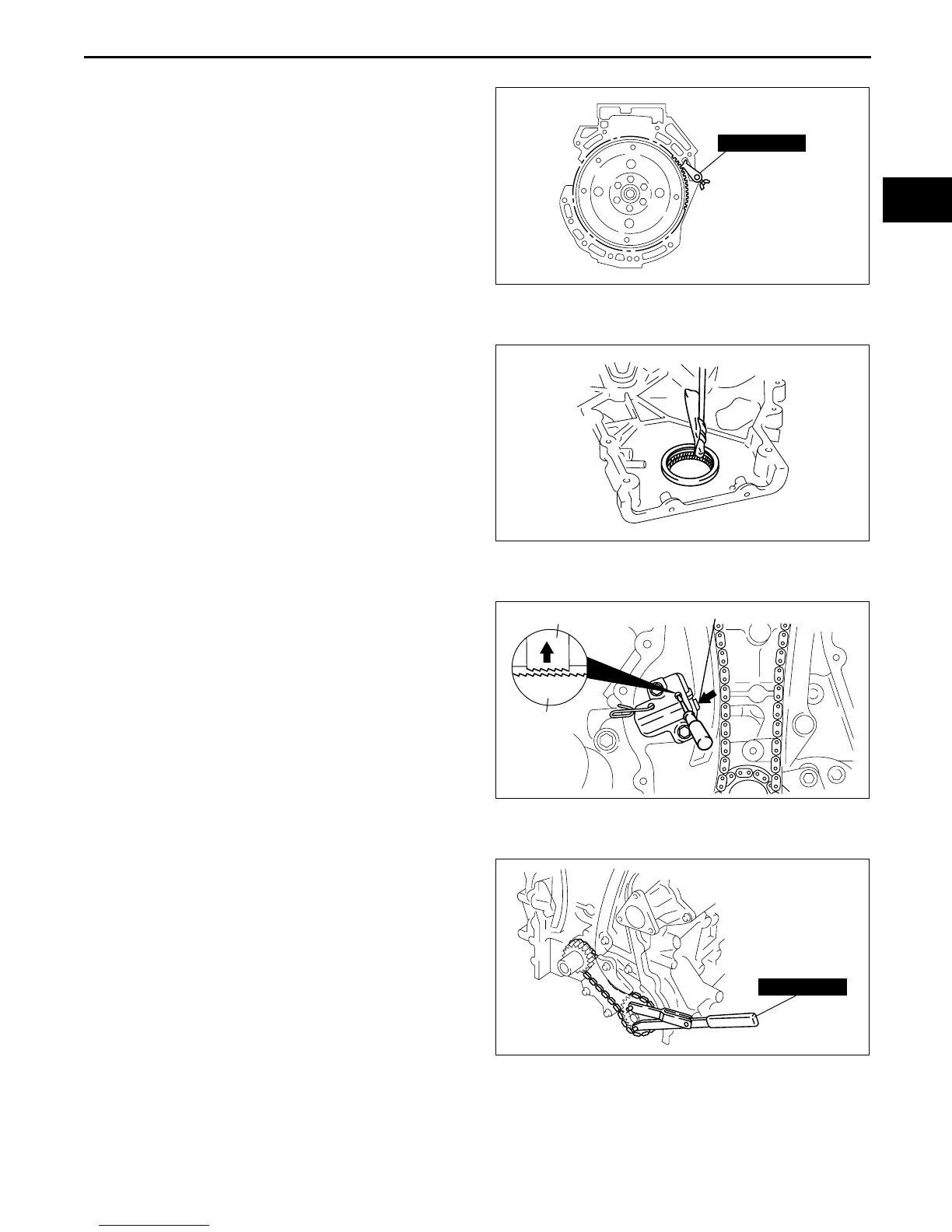

Crankshaft Pulley Lock Bolt Disassembly Note
1. Install the SST to the ring gear to lock the
crankshaft against rotation.
Front Oil Seal Disassembly Note
1. Remove the oil seal using a screwdriver.
Chain Tensioner Disassembly Note
1. Unlock the chain tensioner ratchet using a
suitable screw driver or equivalent tool.
2. Slowly press the tensioner piston.
3. Hold the chain tensioner piston with a 1.5 mm
{0.06 in} wire or paper clip.
Oil Pump Sprocket Disassembly Note
1. Hold the oil pump sprocket using the SST.
End Of Sie
49 E011 1A0
D3U110ZE4003
E6U110ZWB044
TENSIONER PISTON
RATCHET
RACK
C3U0110W098
49 G032 354
B3E0110E054
