MECHANICAL
01–10–36
Engine Workshop Manual LF L3 (1866–1U–05H)
Revised 12/2005 (Ref. No. R145/05)

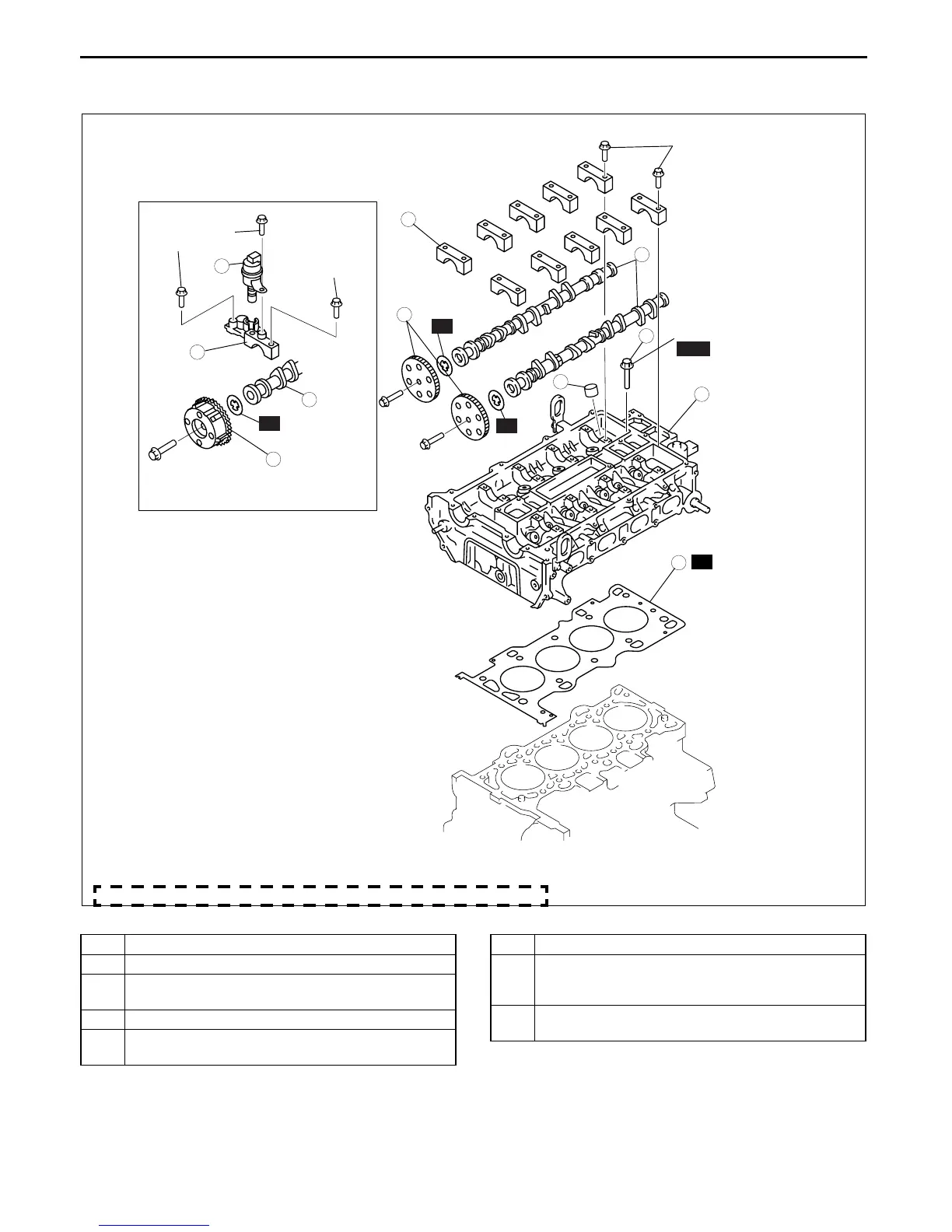

CYLINDER HEAD (II) ASSEMBLY
E5U011002000E11
1. Assemble in the order indicated in the table.
.
1
2
3
5
6
6
8
7
5
7
R
4
5.0—9.0 N·m
{51.0—91.7 kgf·cm,
44.3—79.5 in·lbf}+
14—17
3—11
{30.6—112 kgf·cm,
26.6—97.3 in·lbf}+
13—17 {1.4—1.7, 9.6—12.5}+
43—47 {4.4—4.7, 31.8—34.6}+
88°—92°+
88°—92°
{1.43—1.73,
10.4—12.5}
N·m {kgf·m, ft·lbf}
SST
8.0—11.5 N·m
{81.5—117 kgf·cm
70.8—101in·lbf}
5.0—9.0 N·m
{51.0—91.7 kgf·cm,
44.3—79.5 in·lbf}+
14—17
{1.43—1.73,
10.4—12.5}
R
R
R
WITH VARIABLE VALVE TIMING MECHANISM
*
*
*
*: IF WASHER IS NOT INSTALLED TO THE ENGINE, INSTALL A NEW WASHER.
E5U110ZECL02
1 Cylinder head gasket
2 Cylinder head
3 Cylinder head bolt
(See 01–10–37 Cylinder Head Bolt Assembly Note)
4 Tappet
5 Camshaft
(See 01–10–37 Camshaft Assembly Note)
6 Camshaft cap
7 Camshaft sprocket, variable valve timing actuator
(See 01–10–37 Camshaft Sprocket, Variable Valve
Timing Actuator Assembly Note)
8 Oil control valve (OCV) (With variable valve timing
mechanism)
