MECHANICAL
01–10–35
01–10
Engine Workshop Manual LF L3 (1866–1U–05H)

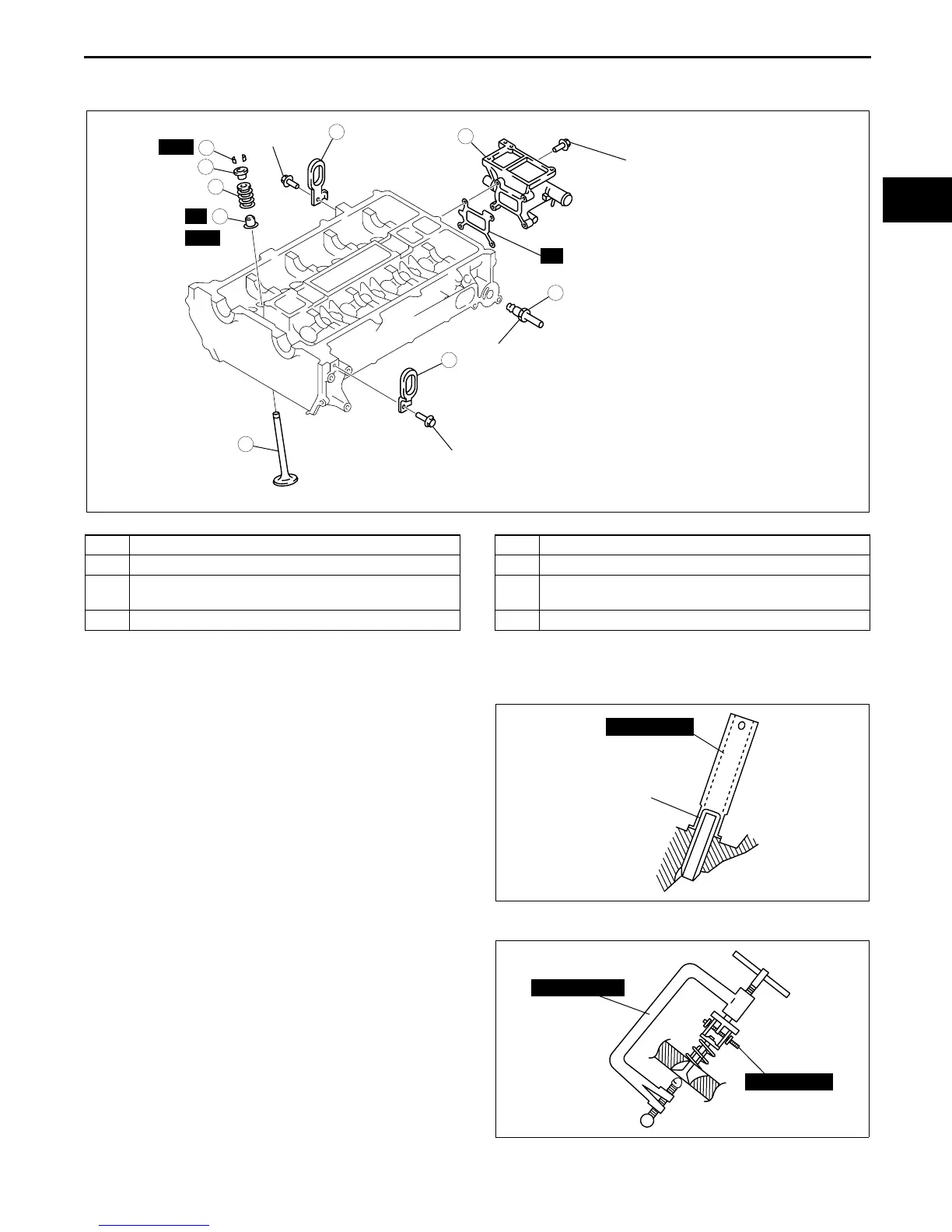

CYLINDER HEAD (I) ASSEMBLY
E5U011002000E10
1. Assemble in the order indicated in the table..
Valve Seal Assembly Note
1. Press the valve seal onto the valve guide by hand.
2. Lightly tap the SST using a plastic hammer.
Valve Keeper Assembly Note
1. Install the valve keeper using the SSTs.
End Of Sie
8
8
7
5
4
3
1
2
6
SST
SST
R
R
42—48 {4.3—4.8,
31.0—35.4}
42—48 {4.3—4.8, 31.0—35.4}
56—60 {5.8—6.1,
41.3—44.2}
8.0—11.5 N·m {81.6—117.2
kgf·cm, 70.9—101.7 in·lbf}
N·m {kgf·m, ft·lbf}
B3E0110E130
1 Water outlet
2 EGR pipe
3 Valve seal
(See 01–10–35 Valve Seal Assembly Note)
4Valve
5Valve spring
6 Upper valve spring seat
7 Valve keeper
(See 01–10–35 Valve Keeper Assembly Note)
8 Engine hanger
VALVE
SEAL
49 T032 302
B3E0110E123
49 B012 0A2
49 0636 100B
B3E0110E124
