Mazda 6 - Rear Crossmember

REAR SUSPENSION
R13
R
REAR CROSSMEMBER
A6E741628400T01
Outline
• The rear crossmember main frame is made from a steel pipe, improving strength without increasing weight.
• To reduce the noise from the suspension system to the body, rubber mounts are used at the four connecting
points of ther ear crossmember to the body.
• The construction of the rear crossmember mounting bushings are same as that of the front crossmember
mounting bushings.

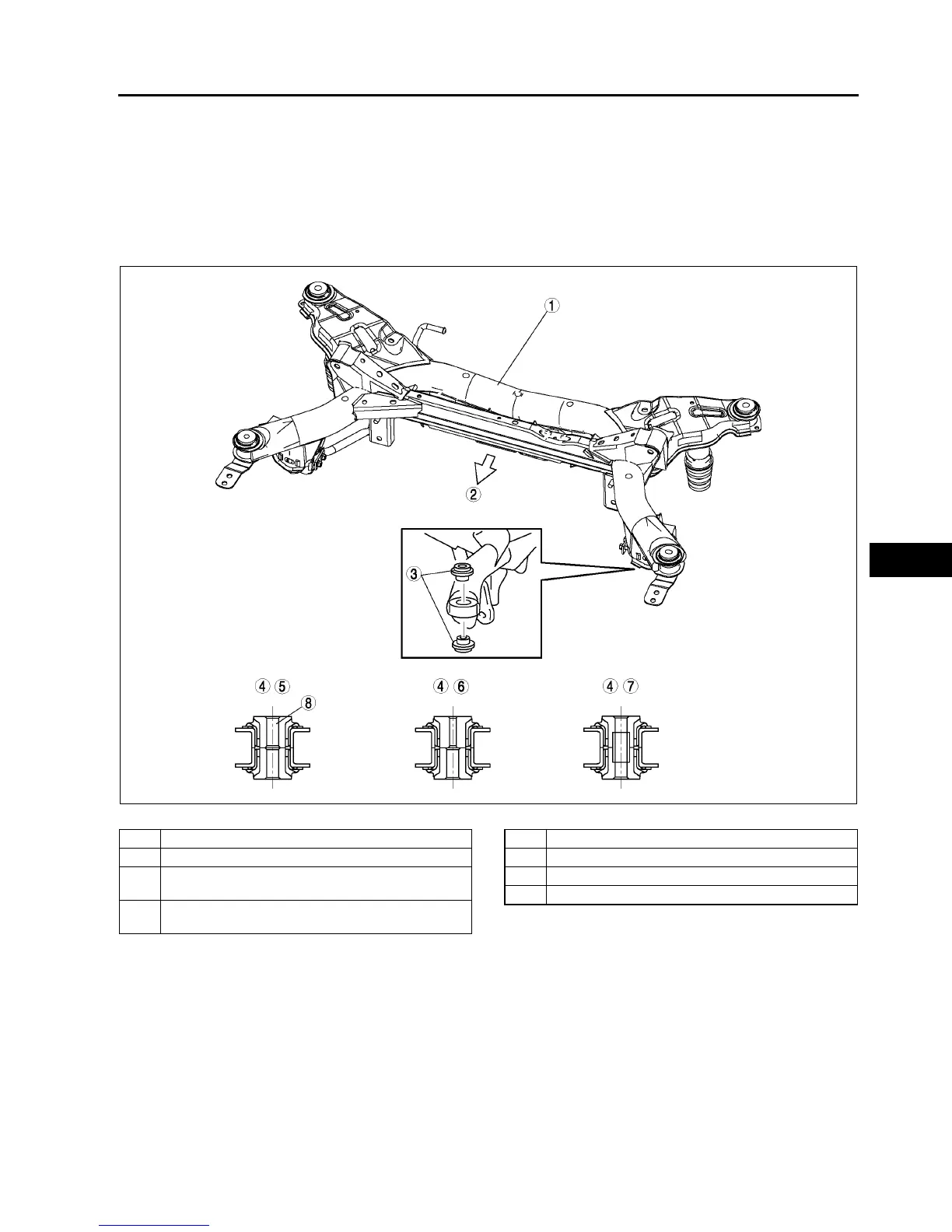

Structural View
.
End Of Sie
A6E7416T005
1 Rear crossmember main frame
2Front
3 Two-piece structure crossmember mounting
bushings
4 Crossmember mounting bushings cross-sectional
view
5 Crossmember mounting bushings (LF)
6 Crossmember mounting bushings (RF)
7 Crossmember mounting bushings (LR and RR)
8 Oval hole
