Mazda 6 - Curtain Air Bag Module

T94
AIR BAG SYSTEM
CURTAIN AIR BAG MODULE
A6E813000171T01
Function
• During a lateral collision to the vehicle, the air bag operates (deploys) after receiving an operation signal from
the SAS unit, defusing impact to the side of the head of the driver and other passengers (passenger-side and
rear outboard-seated passenger).
Construction
• The curtain air bag modules are equipped along the roof edge between the A and B pillars.
• The curtain air bag module is composed of the inflator, pipe, bag cover, and air bag.
• When the curtain air bag deploys, the A-pillar trim and headliner is spread apart by argon gas generated from
the inflator, inflating the air bag.
.
Operation
Air bag module deployment operation
• Refer to SAS UNIT Air Bag Module and Pre-tensioner Seat Belt Deployment Operation. ( See T89 SAS
UNIT.)
Inflator operation
• The inflator operation is the same as the side air bag module. Refer to SIDE AIR BAG MODULE. ( See T93
SIDE AIR BAG MODULE.)
End Of Sie

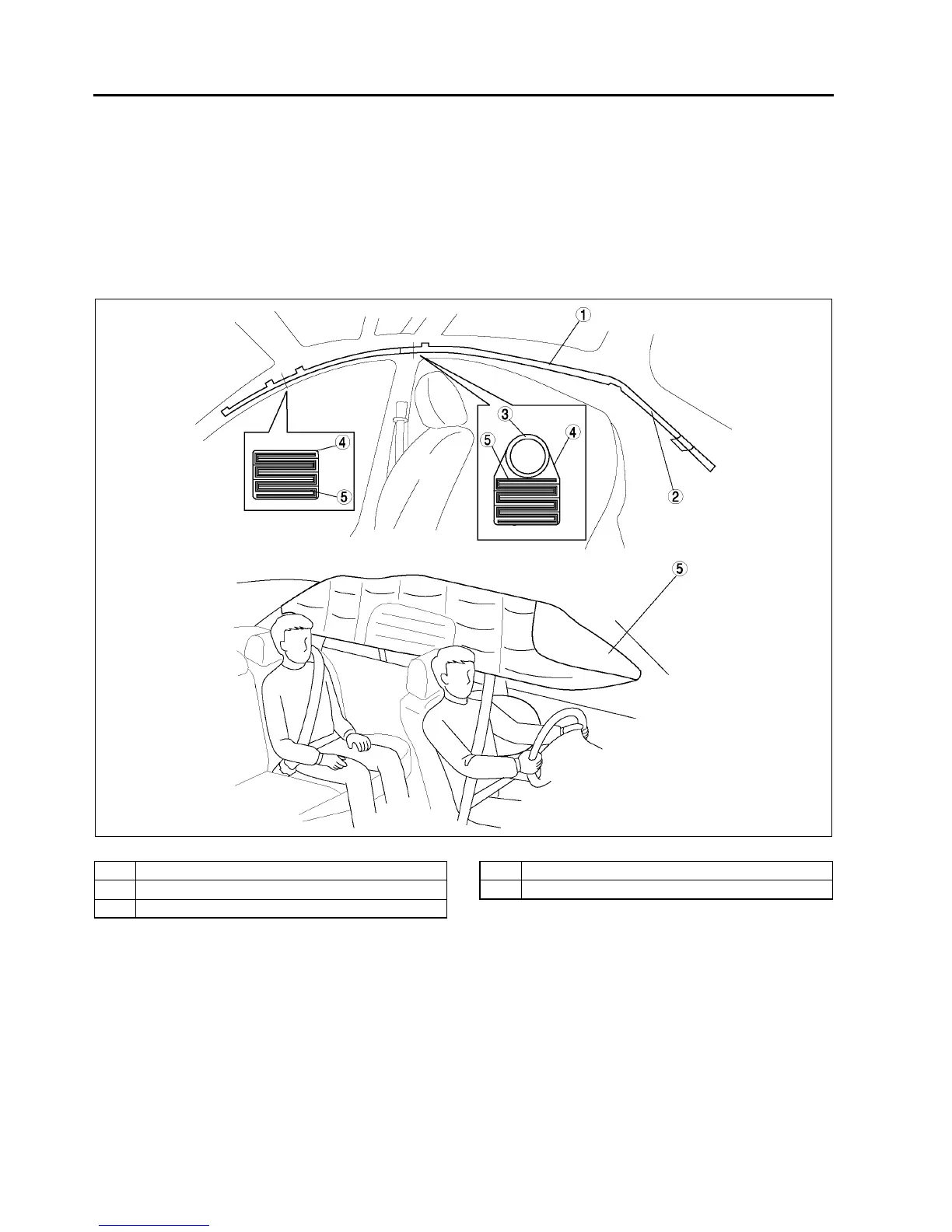

A6E8130T004
1 Curtain air bag module
2Inflator
3Pipe
4 Bag cover
5 Air bag
