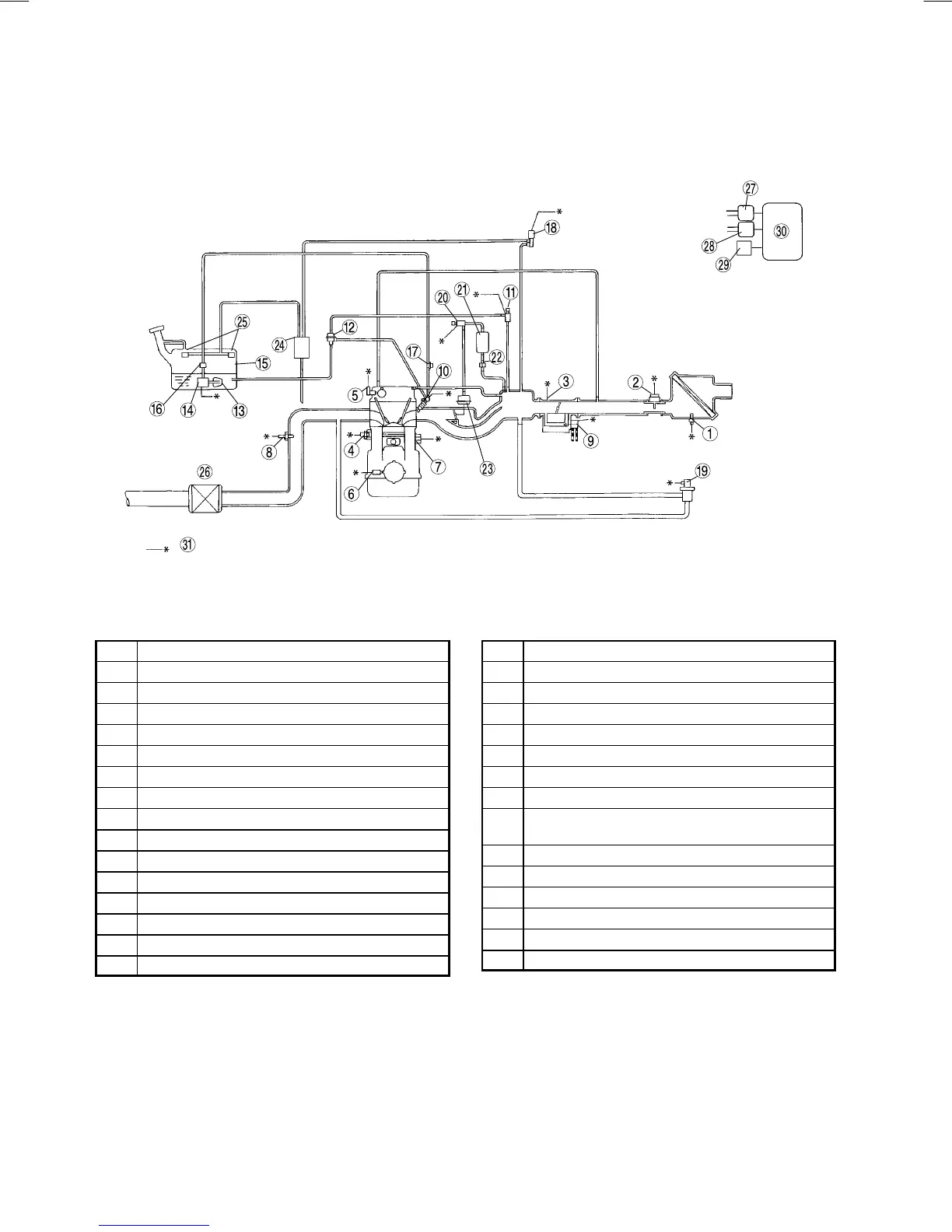

CONTROL SYSTEM DIAGRAM
:
1 IAT sensor
2 MAF sensor
3 TP sensor
4 ECT sensor
5 CMP sensor
6 CKP sensor
7 Knock sensor
8 HO2S (integrated with O2S heater)
9 IAC valve
10 Fuel injector
11 PRC solenoid valve
12 Pressure regulator
13 Fuel filter (lowĆpressure)
14 Fuel pump
15 Fuel tank
16 Fuel filter (highĆpressure)
17 Pulsation dumper
18 Purge solenoid valve
19 EGR valve
20 VICS solenoid valve
21 VICS vacuum chamber
22 VICS check valve (oneĆway)
23 VICS actuator
24 Charcoal canister
25 Rollover valve (evaporative gas check valve
(twoĆway) integrated)
26 TWC
27 Ignition coil No.1
28 Ignition coil No.2
29 Generator
30 PCM
31 To PCM
