EMISSION SYSTEM
OUTLINE
D The emission system is the same as that of the current 323 (BJ) FP engine model. (Refer to 323 Training
Manual 3327-10-98G.) A comparison of major parts for the PREMACY FP engine model and the 323 (BJ) FP
engine models is as follows:
: Applicable
Ċ: Not applicable
Item
PREMACY FP
323 (BJ) FP
Remark
Item
PREMACY FP
323 (BJ) FP
Remark
Rollover valve Same as 323 (BJ) FP engine model
Evaporative gas check
valve (twoĆway)
Same as 323 (BJ) FP engine model
Charcoal canister Same as 323 (BJ) FP engine model
Evaporative gas check
valve (oneĆway)
Ċ Same as 323 (BJ) FP engine model
Purge solenoid valve Same as 323 (BJ) FP engine model
PCV valve Same as 323 (BJ) FP engine model
TWC Same as 323 (BJ) FP engine model
STRUCTURAL VIEW

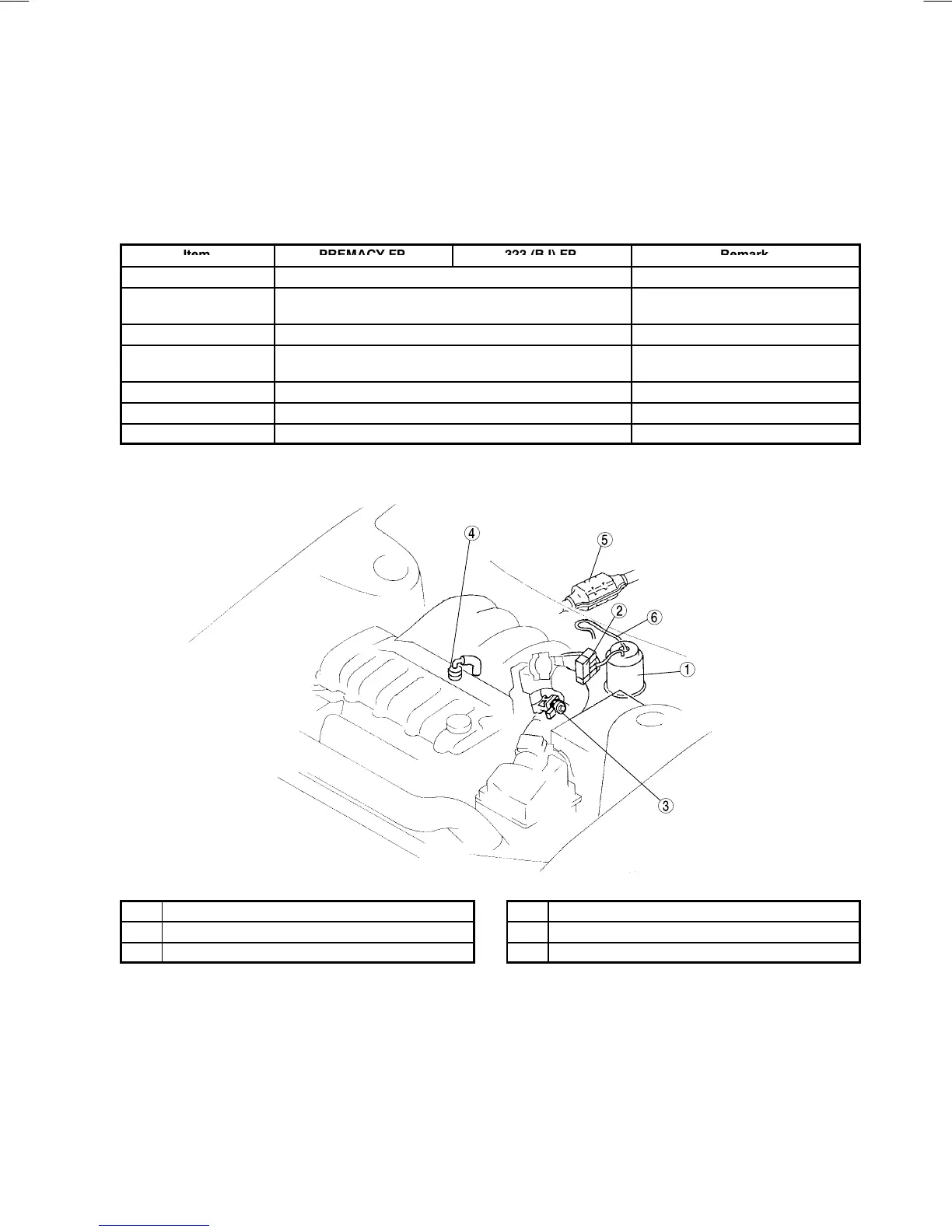

Engine Room Side
1 Charcoal canister
2 Purge solenoid valve
3 EGR valve
4 PCV valve
5 TWC
6 From fuel tank
