Form No.3351-1A-01A
F1-10
FUEL SYSTEM
OUTLINE
D The fuel system is the same as that of the current 323 (BJ) FP engine model. (Refer to 323 Training Manual
3327-10-98G.) A comparison of major parts for the PREMACY FP engine model and the 323 (BJ) FP engine
models is as follows:
: Applicable
Item
PREMACY FP
323 (BJ) FP
Remark
Item
PREMACY FP
323 (BJ) FP
Remark
Fuel tank Same as 323 (BJ) FP engine model
Quick release
connector and plastic
fuel hose
Same as 323 (BJ) FP engine model
Fuel pump Same as 323 (BJ) FP engine model
Fuel filter
(highĆpressure)
Same as 323 (BJ) FP engine model
Fuel injector Same as 323 (BJ) FP engine model
Pressure regulator Same as 323 (BJ) FP engine model
PRC solenoid valve Same as 323 (BJ) FP engine model
Pulsation damper Same as 323 (BJ) FP engine model

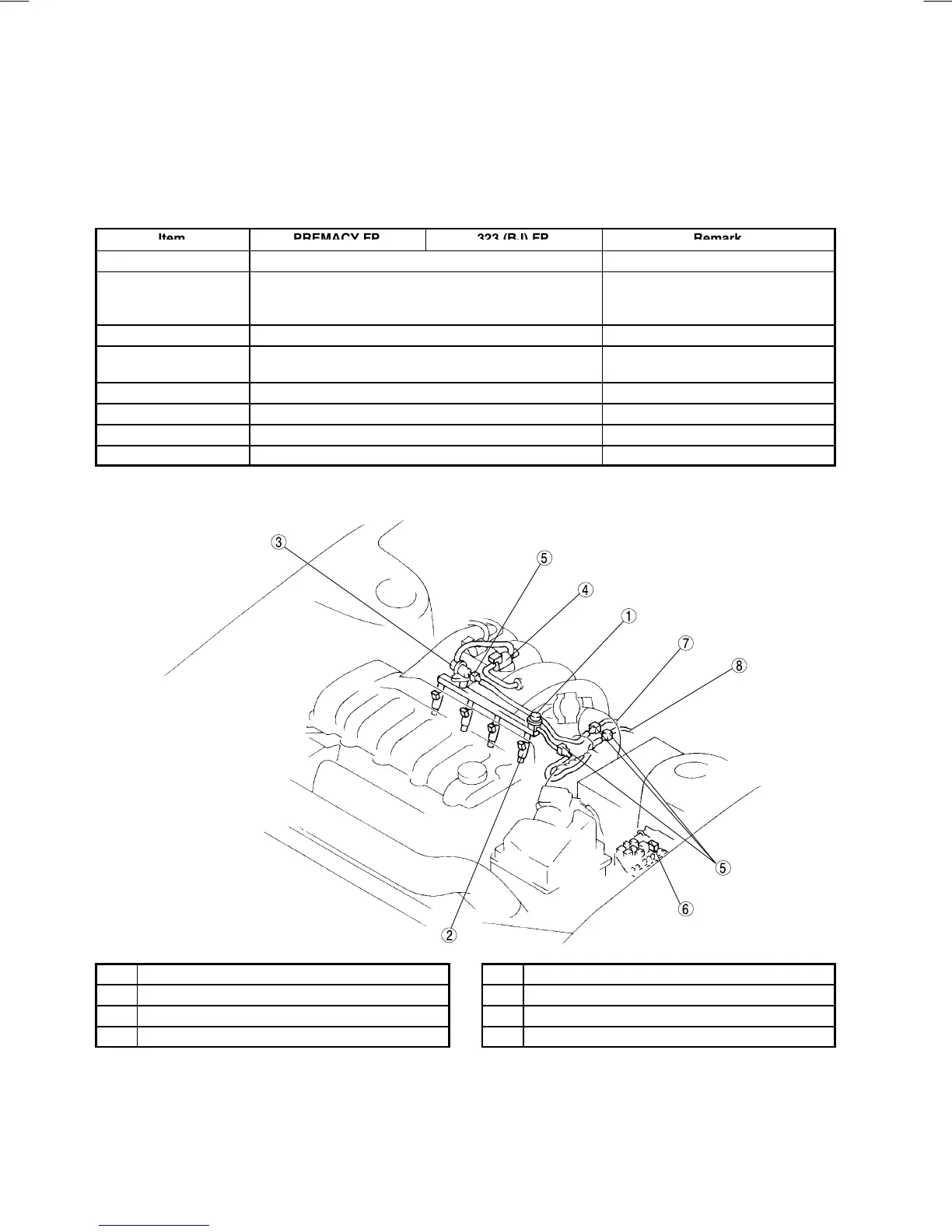

STRUCTURAL VIEW
Engine Room Side
1 Pulsation damper
2 Fuel injector
3 Pressure regulator
4 PRC solenoid valve
5 Quick release connector
6 Fuel pump relay
7 To fuel tank
8 From fuel tank
