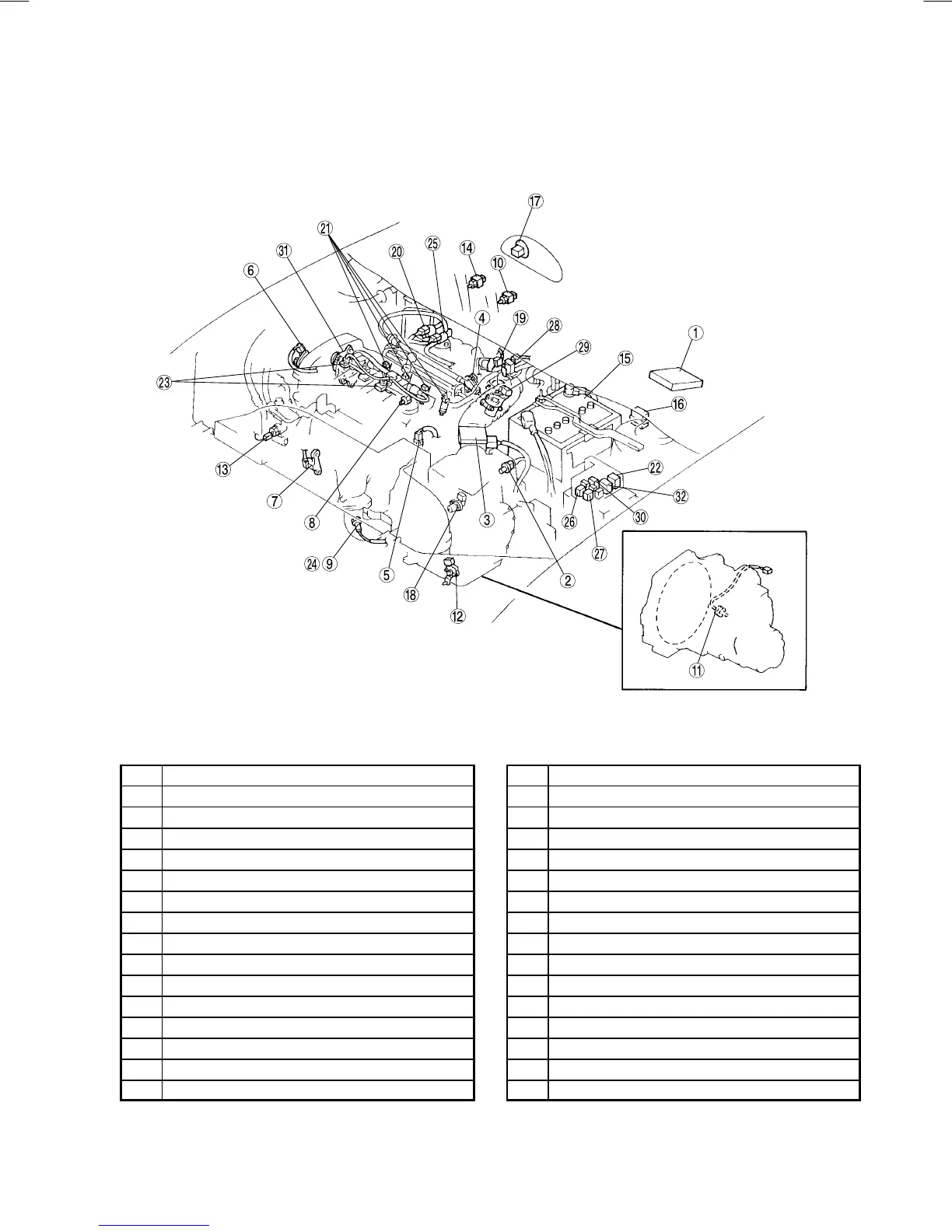

STRUCTURAL VIEW
1 PCM
2 IAT sensor
3 MAF sensor
4 TP sensor
5 ECT sensor
6 CMP sensor
7 CKP sensor
8 Knock sensor
9 HO2S (integrated with HO2S heater)
10 Clutch switch (for MTX)
11 Neutral switch (for MTX)
12 TR switch (for ATX)
13 PSP switch
14 Brake switch
15 Battery
16 DLC
17 VSS (for MTX)
18 VSS (for ATX)
19 IAC valve
20 VICS solenoid valve
21 Fuel injector
22 Fuel pump relay
23 Ignition coil
24 O2S heater (integrated with HO2S)
25 PRC solenoid valve
26 Cooling fan relay
27 Condenser fan relay
28 Purge solenoid valve
29 EGR valve
30 A/C relay
31 Generator
32 Main relay
