Mazda premacy - Intake Air System; Outline; Structural View

Form No.3351-1A-01A
F1-8
INTAKEĆAIR SYSTEM
OUTLINE
D The intakeĆair system is the same as that of the current 323 (BJ) FP engine model (Refer to 323 Training
Manual 3327-10-98G.) A comparison of major parts for the PREMACY FP engine model and the 323 (BJ) FP
engine models is as follows:
: Applicable
Ċ: Not applicable
Item
PREMACY FP
323 (BJ) FP
Remark
Item
PREMACY FP
323 (BJ) FP
Remark
FreshĆair duct Same as 323 (BJ) FP engine model
Resonance chamber Same as 323 (BJ) FP engine model
Air cleaner Same as 323 (BJ) FP engine model
Throttle body Same as 323 (BJ) FP engine model
Air valve Ċ Same as 323 (BJ) FP engine model
IAC valve Same as 323 (BJ) FP engine model
Intake manifold Same as 323 (BJ) FP engine model
Dynamic chamber Same as 323 (BJ) FP engine model
VICS solenoid valve Same as 323 (BJ) FP engine model

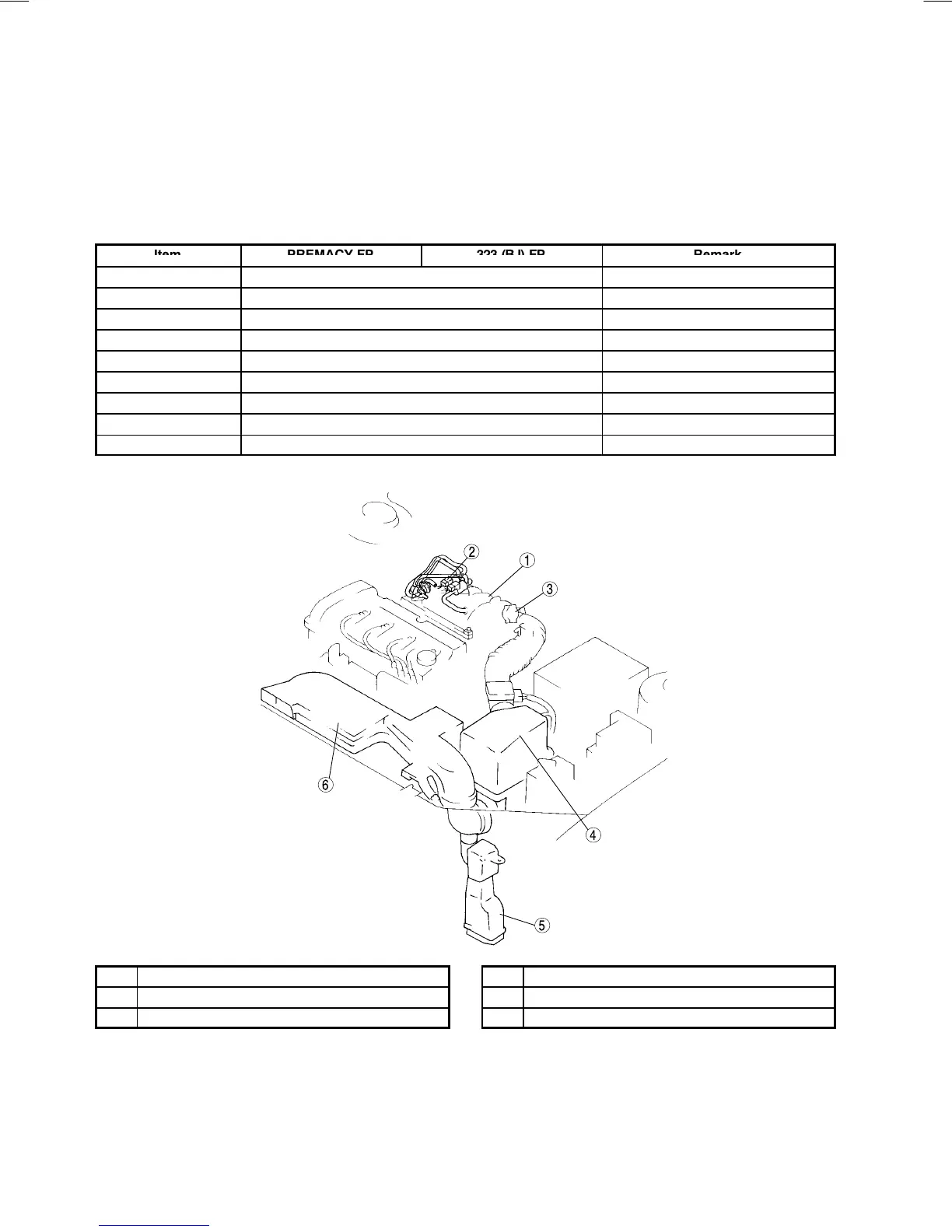

STRUCTURAL VIEW
1 Intake manifold
2 VICS solenoid valve
3 Throttle body
4 Air cleaner
5 Resonance chamber
6 FreshĆair duct
