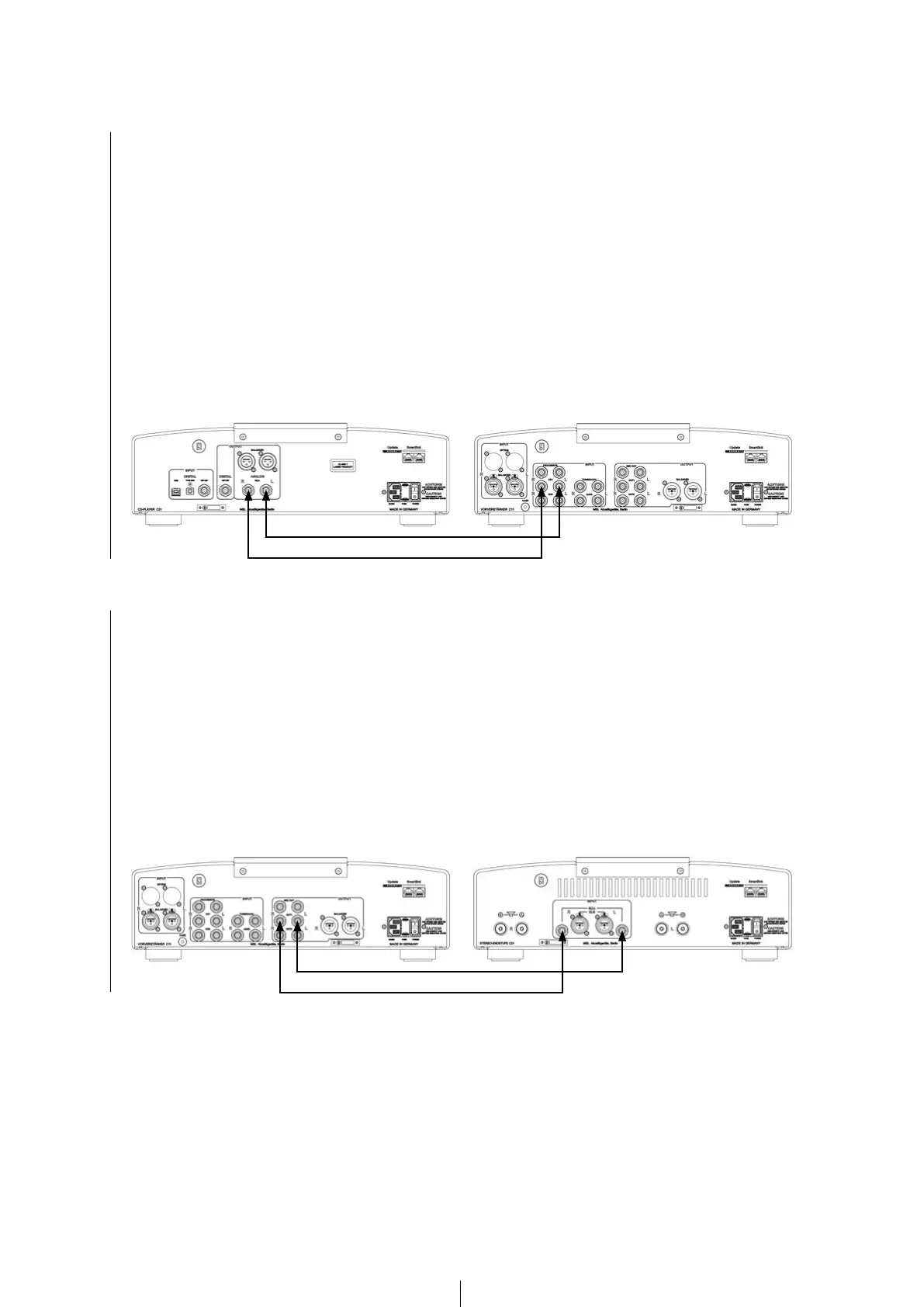

3.2.1 WIRING THE CD-DAC C31 WITH THE PREAMPLIFIER C11
source end securely to the CD-DAC in
the pair of sockets labelled RCA in the Output group of connections. If the cable features
a drawing of a signal direction arrow, secure the cable end in the socket of the CD-DAC
whose arrow is pointing away from the CD-DAC.
CD1 or
whichever input you desire. Please ensure that the same channels are connected together

3.2.2 WIRING THE PREAMPLIFIER C11 WITH THE STEREO
POWER AMPLIFIER C21

the pair of sockets labelled OUT 1

RCA. Please ensure that the same

C31
C11
C11
C21
CD-DAC C31
Preamplier C11
Preamplier C11
Stereo Power Amplier C21
