10
2. Part Name

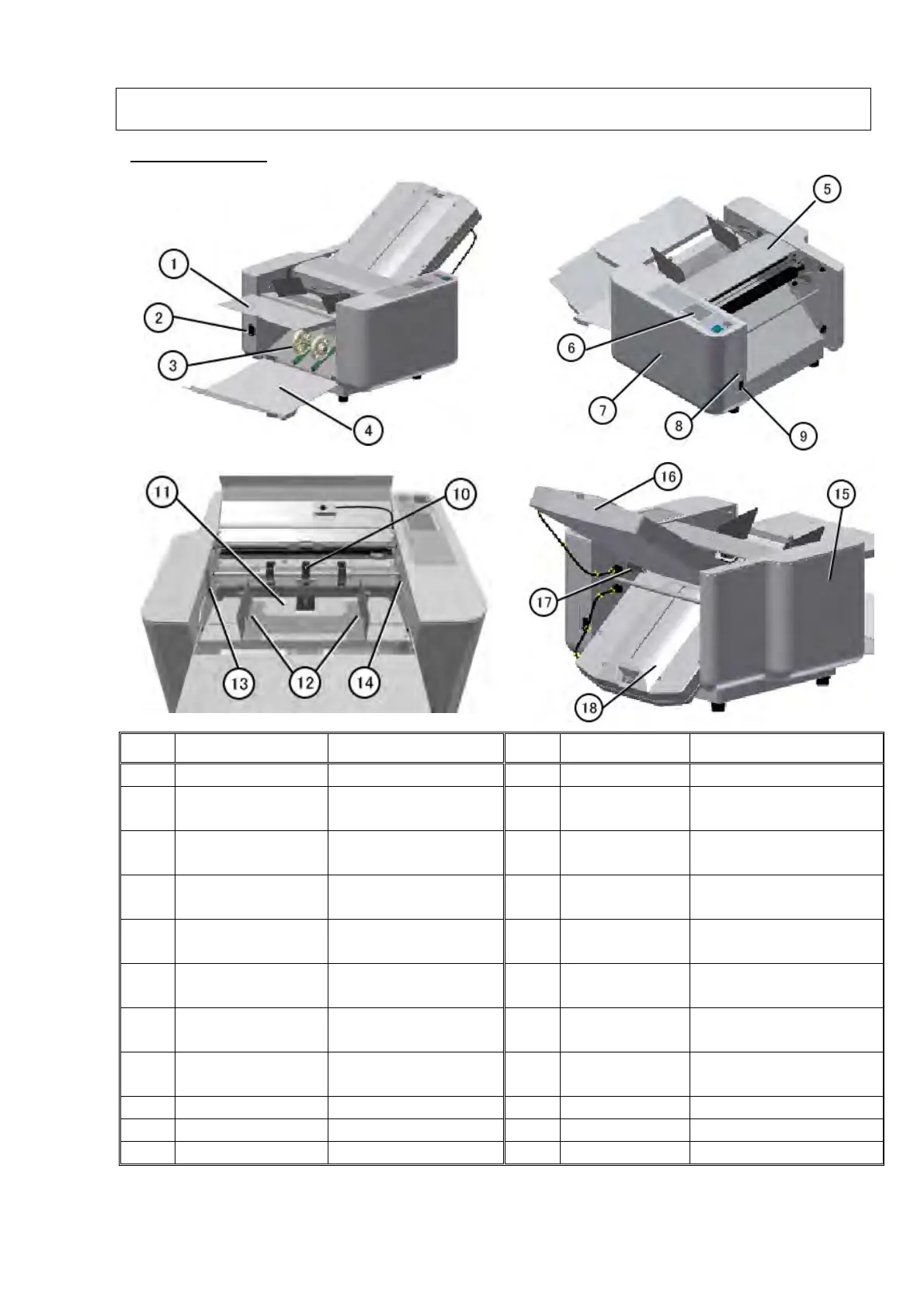

2-1 : Appearance
No. Name Function No. Name Function
1 Auxiliary table For supporting larger paper 11 Paper feed table For loading paper
2 Inlet For connecting the power
cable
12 Paper guide For prevent slant paper feeding
3 Paper ejection roller Arranges and ejects folded
paper
13 Paper feed pressure
lever
For adjusting paper feed
pressure
4 Paper ejection table For stacking folded paper 14 Separator pressure
lever
For adjusting separator pressure
5 Safety cover The machine stops when this
cover is opened.
15 Left side cover For protecting mechanical parts
6 Control panel For setting operation of
machine
16 Folding table 1 For performing the first fold
7 Right side cover For protecting against
mechanical/electrical parts
17 Folder roller setting
lever
For removing and setting the
folder roller
8 Breaker For protecting against
overcurrent
18 Folding table 2 For performing the second fold
9 Power switch For turning on/off the power
10 Paper feed roller Feeds one sheet of paper
To Next Page
