11

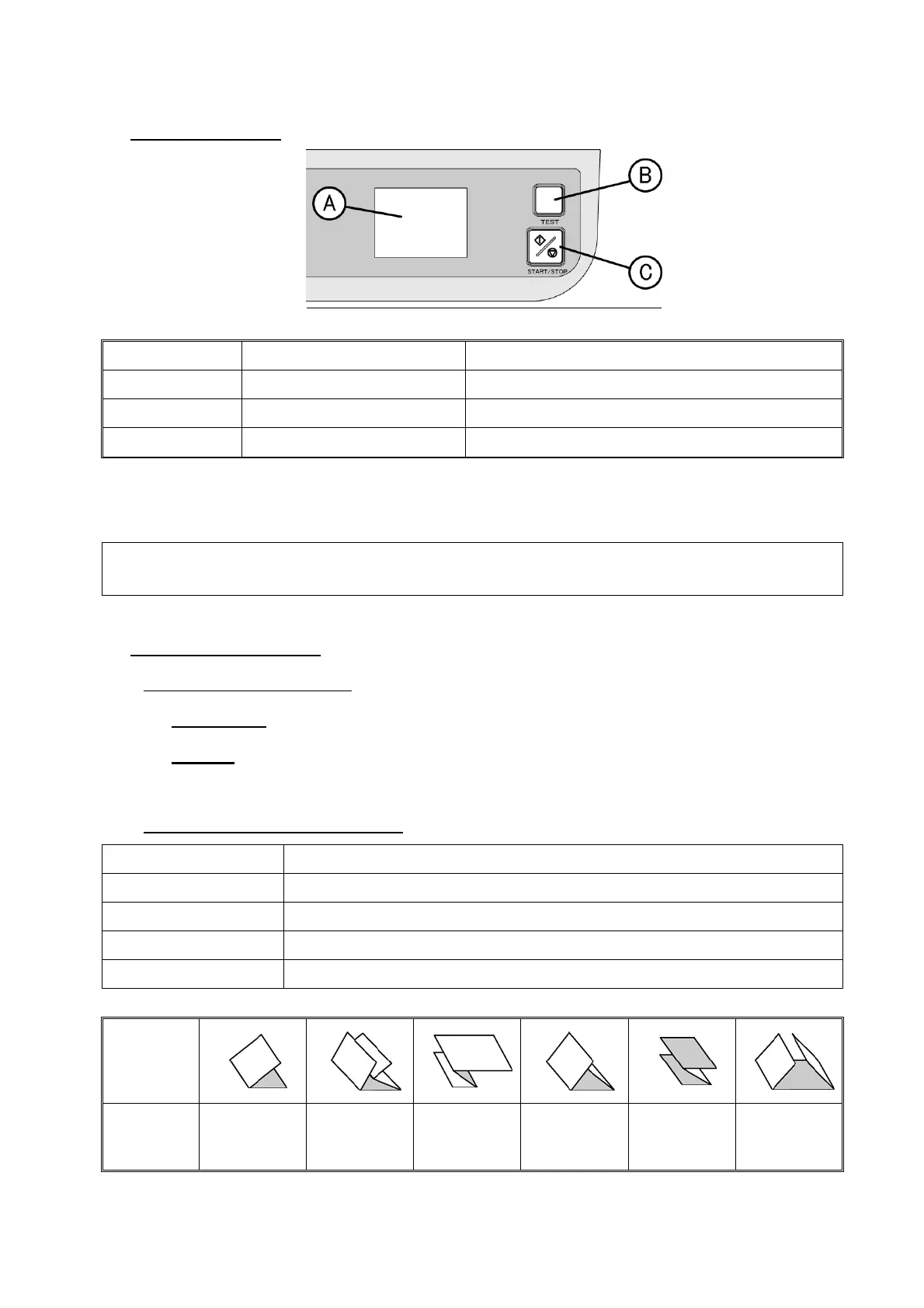

2-2 : Control panel
Number Name Function
A Color LCD Touch panel To enter operation command and display
B “TEST” key To perform test folding (two sheet without count)
C
“
START/STOP” key
To start and stop the machine
3. Matters That Require Particular Attention
3-1 : Definition of terms
3-1-1 : Explanation of mark
Caution
！
........... Matters that require attention
Hint
！
................... Matters that are good to know
3-1-2 : Term/Fold type description
Term Description
Jam Paper is stuck inside the machine.
Double feed Two or more sheets of paper are fed together.
Slip Paper is not fed due to slippage.
Fan out Separate stuck sheets of paper by letting air in between them
Chart
Fold type Single fold
Double
parallel fold
Fold-out fold Letter fold Zigzag fold Gate fold
The shaded parts in the illustrations show the upper side of the paper placed on the paper feed table.
