7. Assembly
Due to the weight of the heavy individual parts, the help of a second person is recommended! Not only can the heavy parts injure you
when tipping over, but the product itself might be damaged.

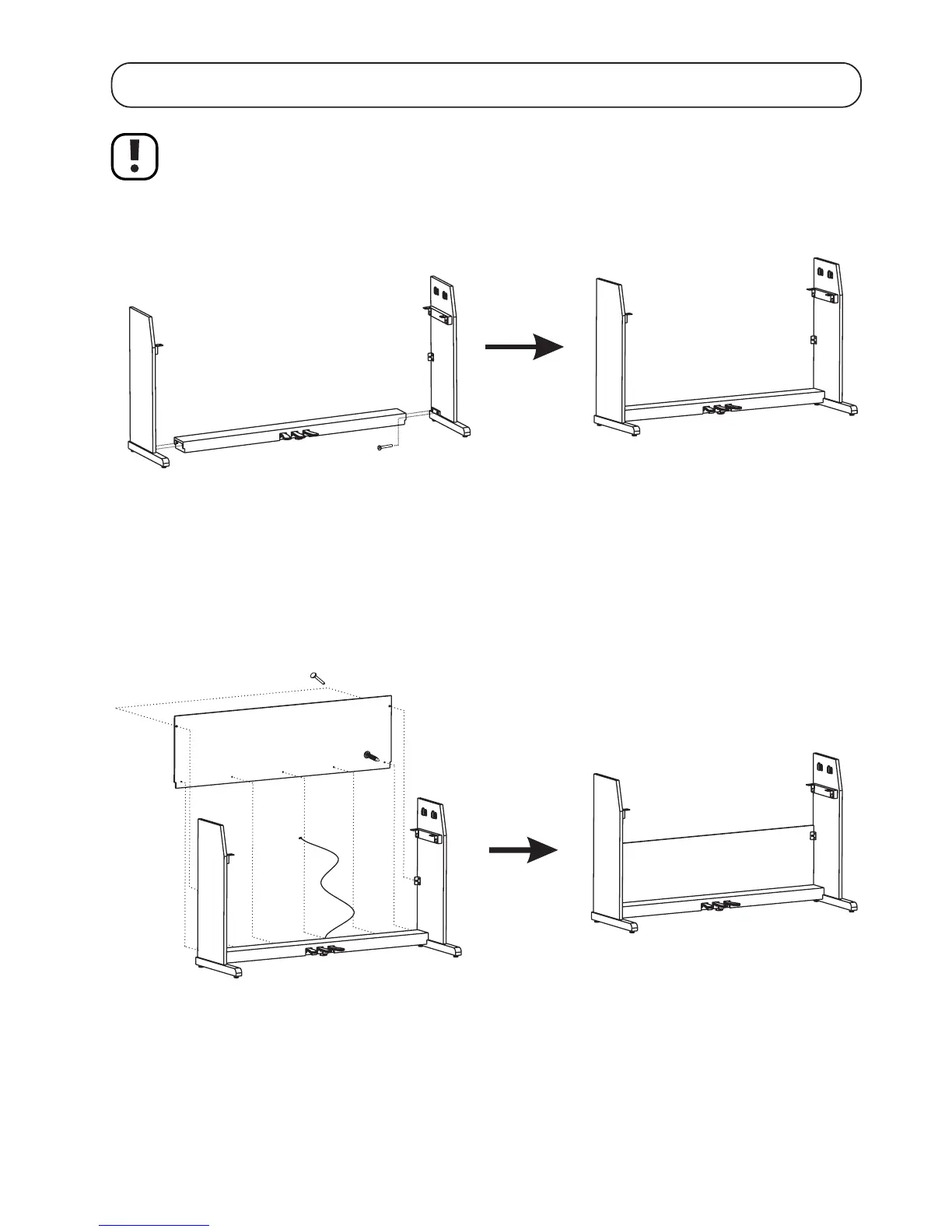

a) Assembling the side panels and the pedal box
Needed screws: 4 screws Ø 6mm x 30mm
Assemble the two side panels and the pedal box as illustrated using the 4 screws (Ø 6mm x 30mm). Do not tilt the side panels. Do not use force
when screwing together the parts.
b) Attaching the rear panel
Needed screws: 5 screws Ø 4mm x 15mm
2 screws Ø 6mm x 12mm
Attach the rear panel to the pedal box using five screws (Ø 4mm x 15mm) and to the two side panels using 2 screws (Ø 6 mm x 12 mm).
