McAfee NS Series - Page 17

4

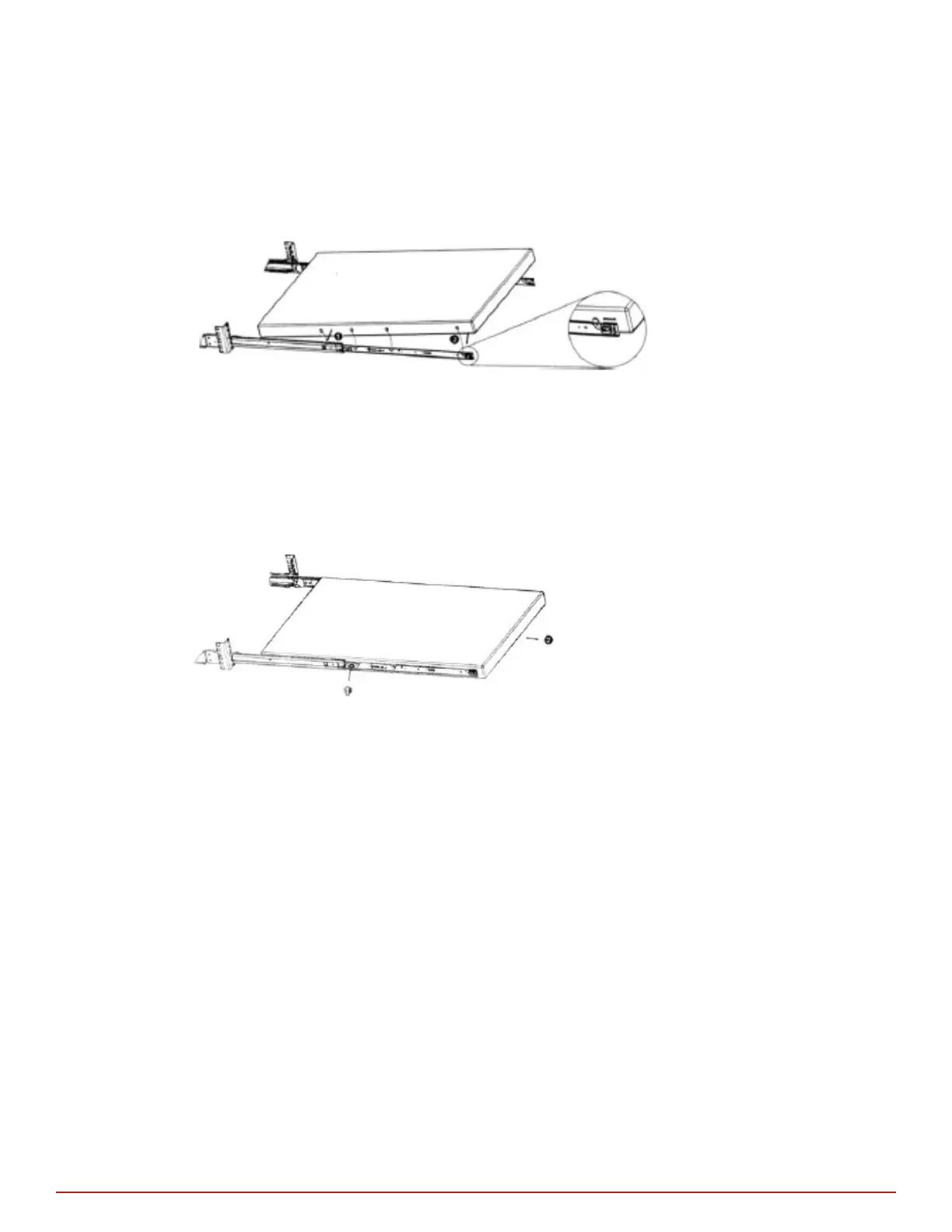

Mount chassis unit into mounted cabinet sections.
a
Guide the chassis unit into the pre-installed cabinet sections. Allow the pre-installed inner members to
slide into the outer members until they lock in place.
b
Depress the QD latch on both sides and continue to push the chassis unit in until fully closed.
5
Secure the chassis unit through the rack rails.
a
With the chassis unit in fully closed position, secure using two truss head screws.
b
Drive the screws through the inner member ange and through the rack rails. The screws thread directly
to the cabinet slide members. Tighten the screws.
Setting up the Sensor
Install the slide rails and rack mount the Sensor
4
McAfee Network Security Platform
17
