NS-series physical description
The high-port density NS-series Sensor is designed for high bandwidth links. This section gives a physical
description of the NS-series Sensor.
Contents
Components of an NS-series Sensor
Sensor LEDs
Components of an NS-series Sensor
Correlate the pictures with the information following it to understand the components of an NS-series Sensor.

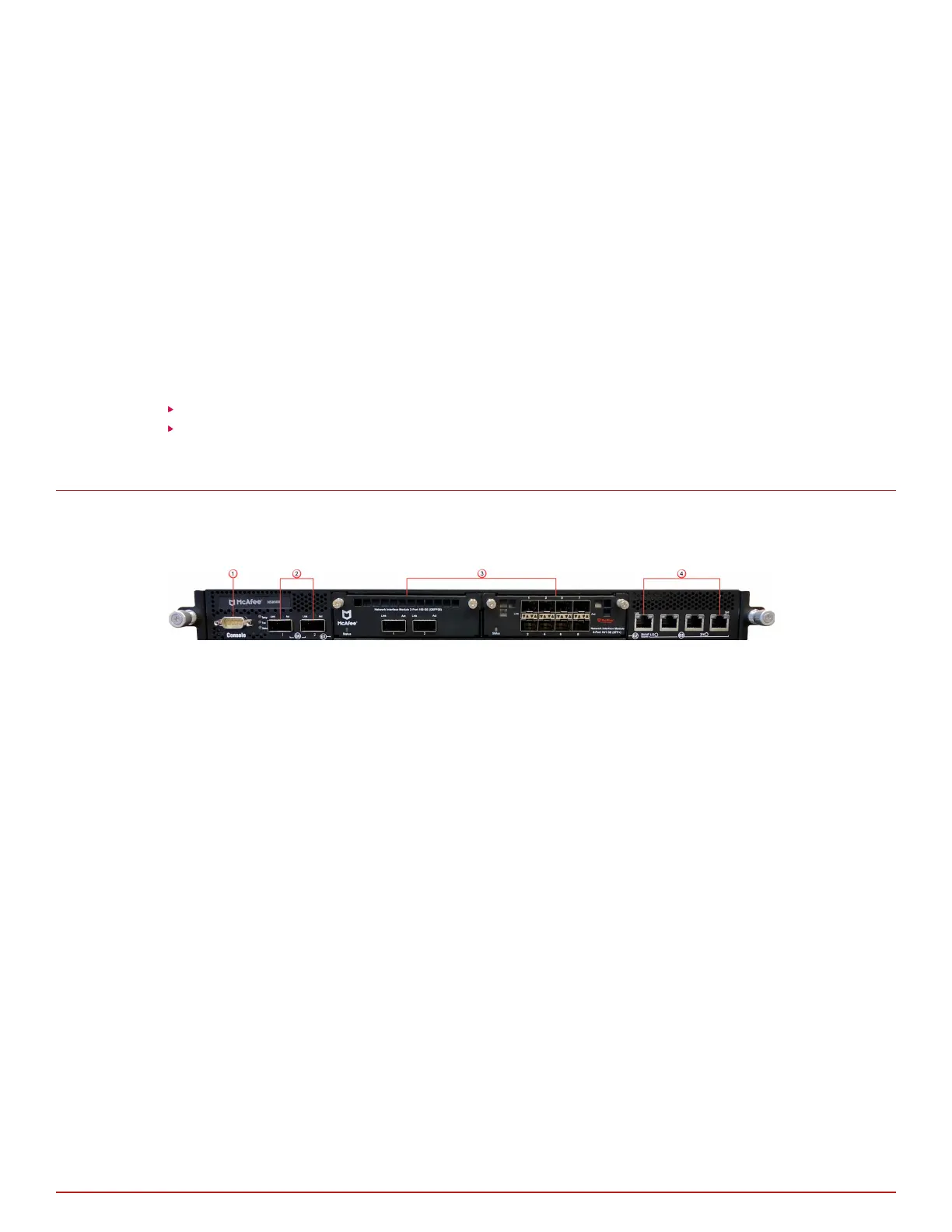

Figure 2-1 Sensor front panel
1
Console port (1)
2
QSFP28 100/QSFP+ 40 Gigabit Ethernet ports (2)
3
Two slots for I/O modules (Any combination of the interface modules can be used)
• QSFP28 100/QSFP+ 40 Gigabit Ethernet ports (2)
• QSFP+ 40 Gigabit Ethernet ports (4)
• QSFP+ 40 Gigabit Ethernet ports (2)
• SFP/SFP+ 1/10 Gigabit Ethernet Monitoring ports (8)
• RJ-45 10/100/1000 Mbps Ethernet Monitoring ports (6)
• RJ-45 100/1000/10000 Gigabit Ethernet Monitoring ports (4)
• 1/10 Gigabit Ethernet Monitoring ports (4)
4
RJ-45 100/1000/10000 Mbps Ethernet Monitoring ports (4)
