CONDENSER SECTION
EVAPORATOR SECTION
1
2
3
4
6
7
5
11
8
9
10
14
12
12
13
15
16
HT HP SHV
HT HP SCL
LT LP SM
LT LP SHV
1. High Pressure Switch
2. Low Pressure Switch
3. Discharge Service Valve
4. Suction Service Valve
5. Discharge Check Valve
6. Service Port, (High Side)
7. Service Port, (Low Side)
8. Pressure Transducer (SPT)
9. Thermal Expansion Valve (TXV)
10. Liquid Line Sight Glass
11. Pressure Transducer (DPT)
12. Filter Drier Service Valve
13. Filter Drier
14. Liquid Line Solenoi d Valve
15. Receiver Tank
16. Fusible Plug

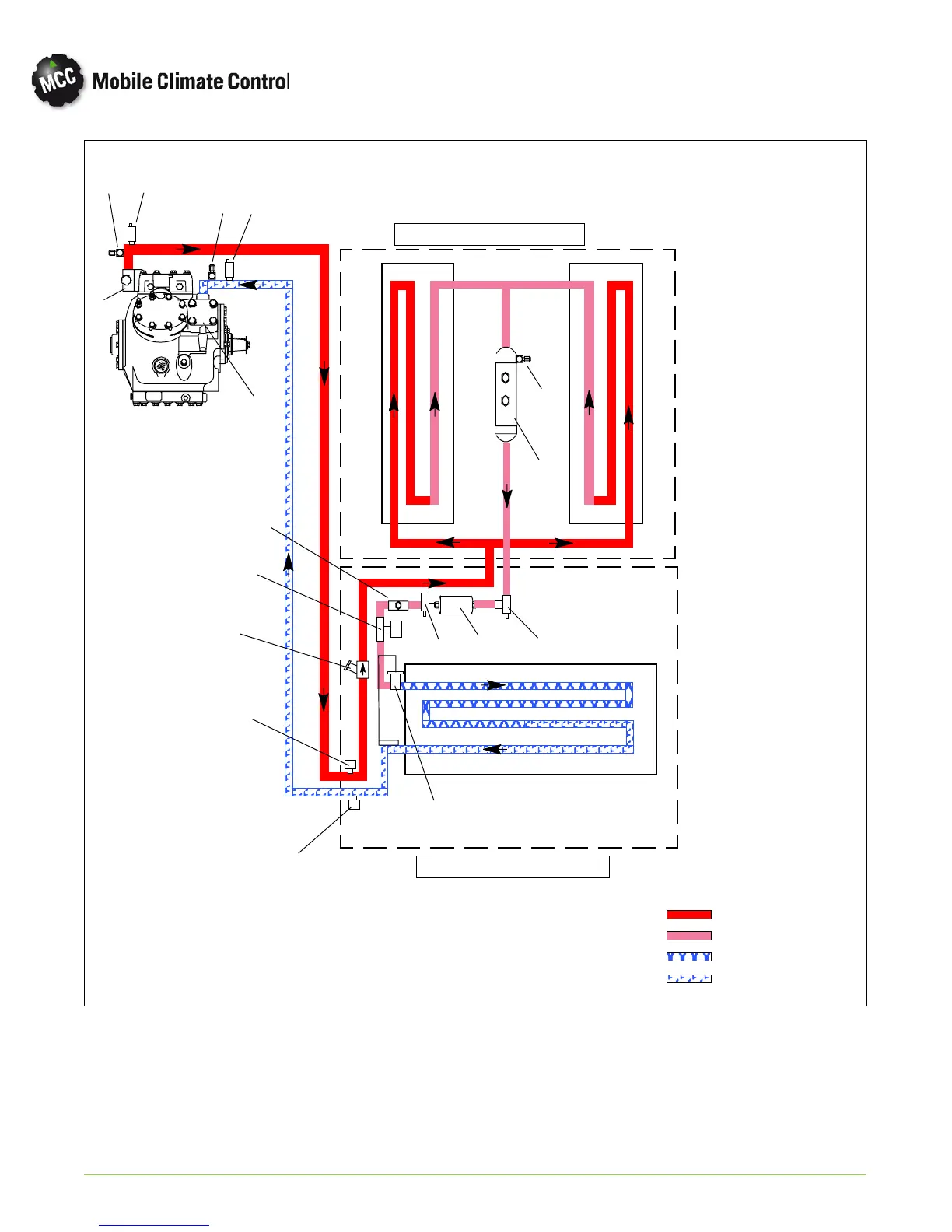

Figure 1-2 Refrigerant Flow Diagram
