2.5.2 Coolview Screen Layout
a. Inputs and Mode Indicator- Coo lview displays “real time” status of the items shown in Figure 2-10.
HVAC
Mode/
Blower Status
Temperature
Sensors
(Real Time)
Pressure
Transducers
(Real Time)
Heat Valve
Status
System
Status
HVAC
Set Point

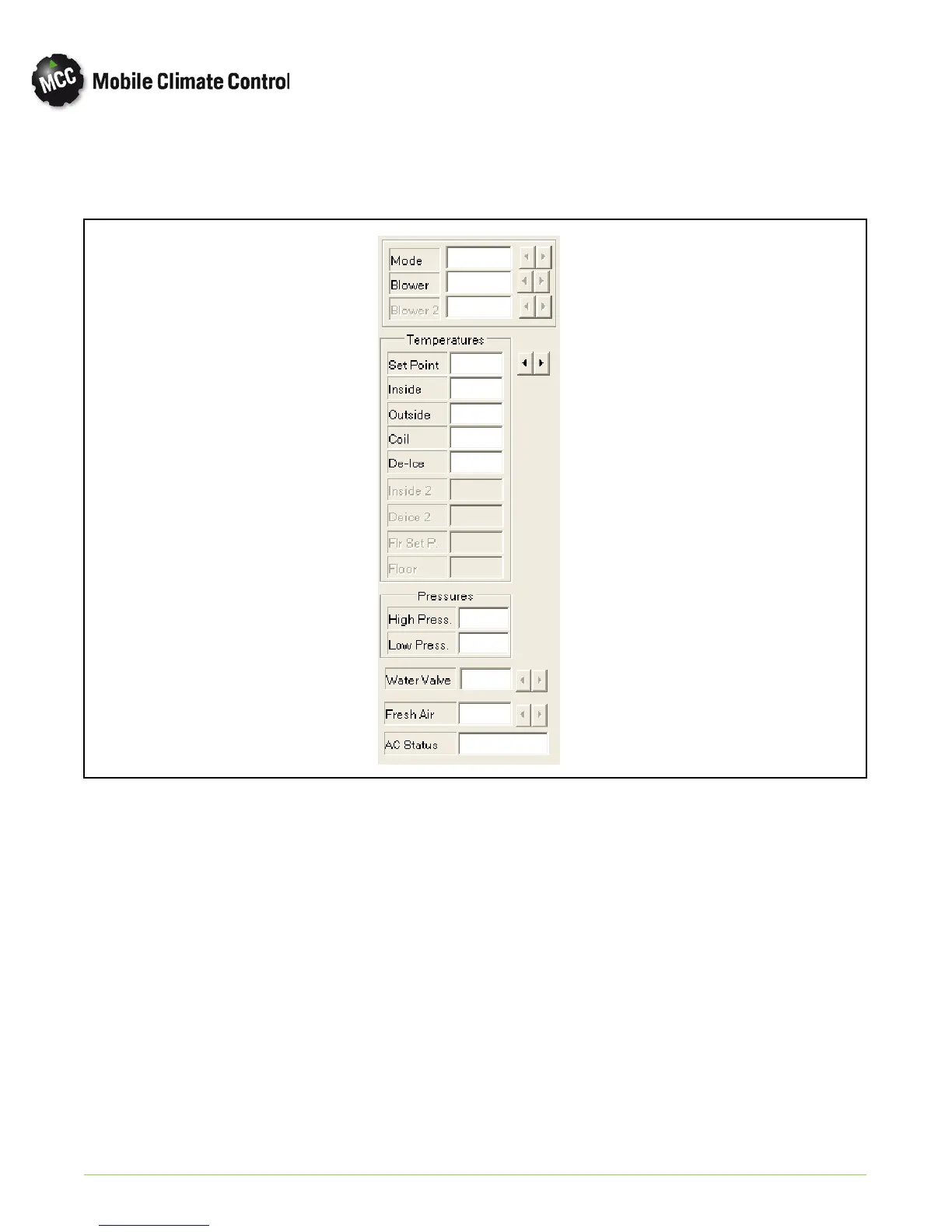

Figure 2-10 MCC Eco NG Coolview Inputs and Mode (VIEW Tab)
