2.5.3 Eco NG Display Pin out Description
Pin 1
Pin 10
Pin out
Pin Function Pin Function
1 Power 6 J1939H
2 Dimmer 7 J1939 L
3 5V Output 8 J1939 Shield
4 Ground 9 Ground
5RS‐485(Pos) 10 RS‐485(Neg)

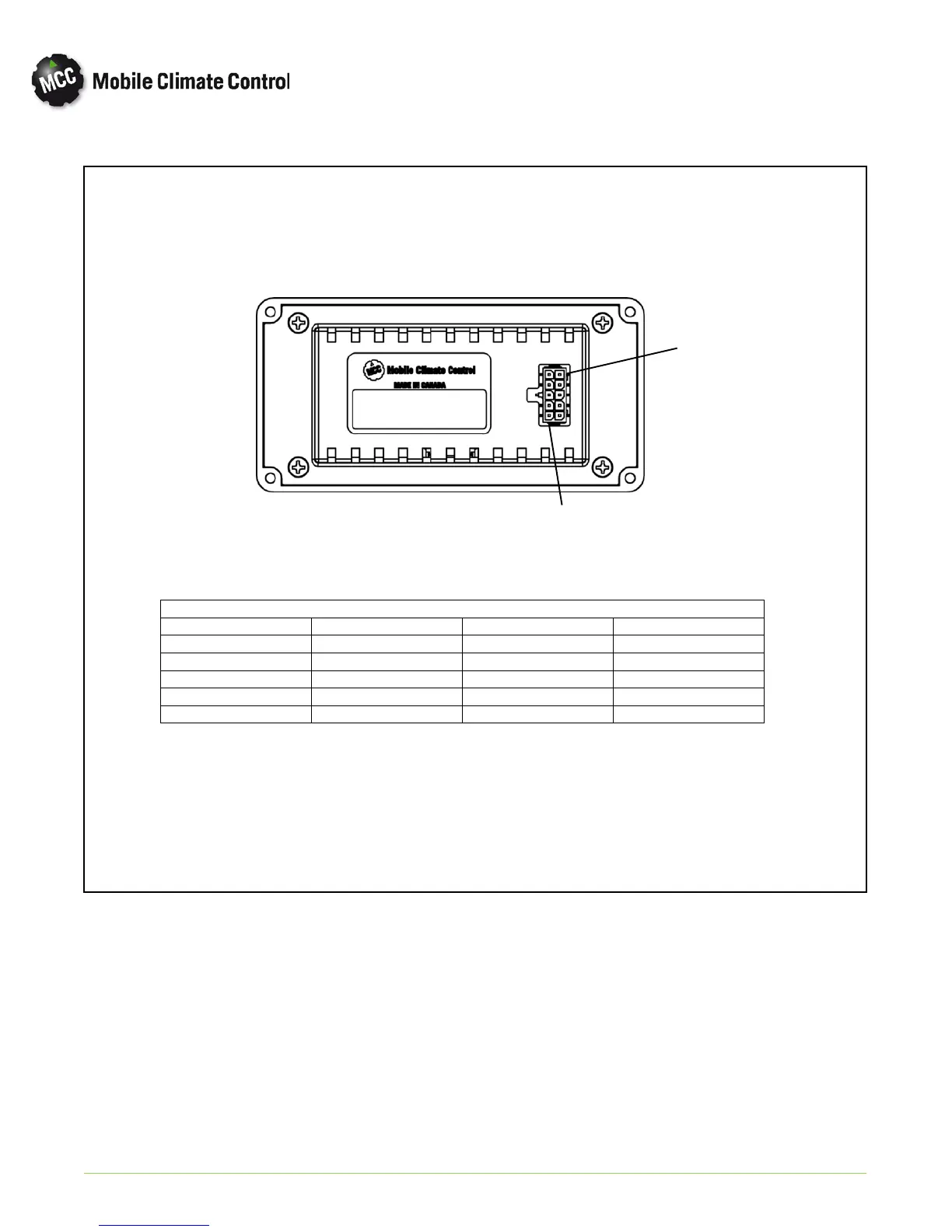

Figure 2-16 MCC Eco NG Display Pin out
