ASSEMBLY

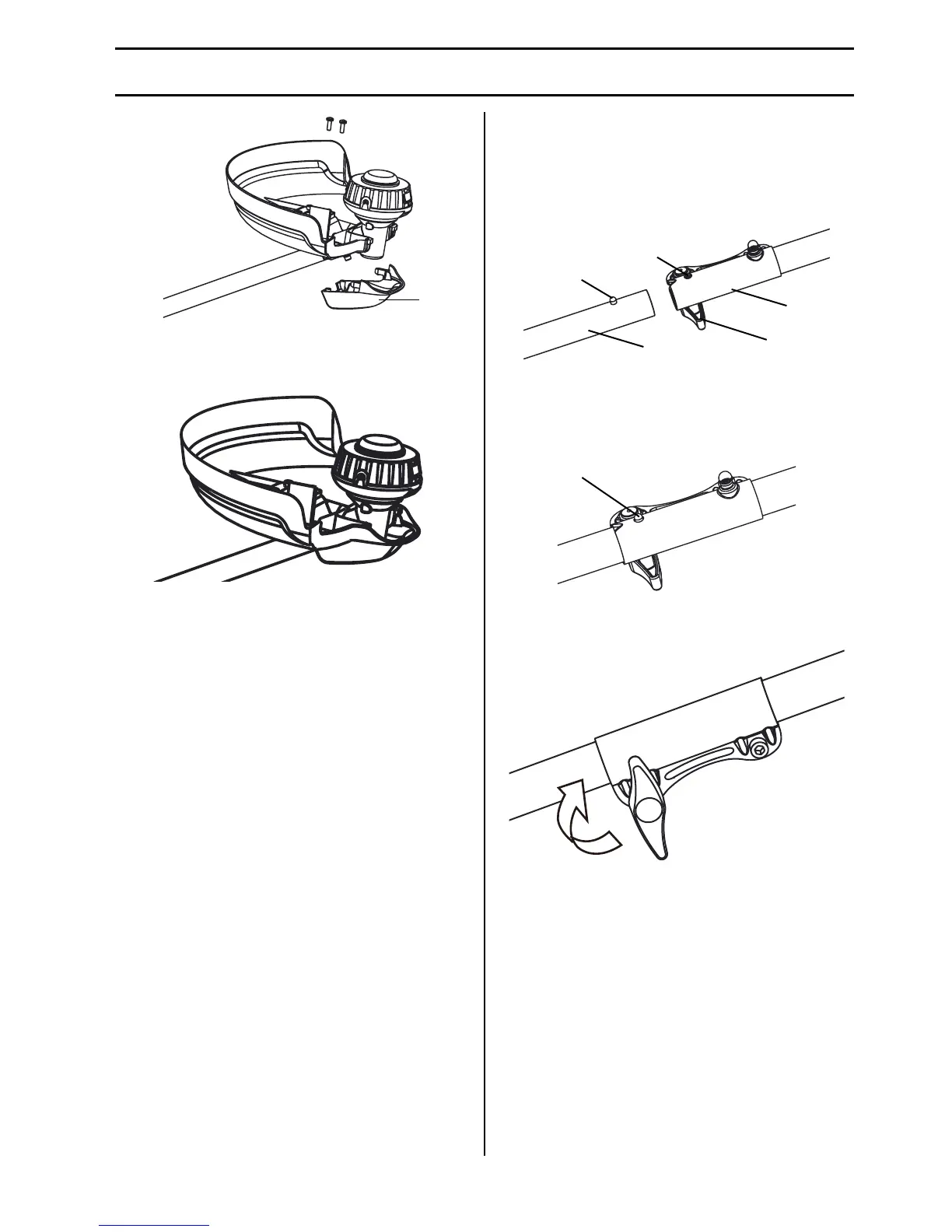

• Insert the screws into the guard, fastening the the
guard cap in place.
NOTE: The torque of screws is 1.0-1.6 Nm.
Shaft assembly
The attachment connects to the power head by means
of a coupler device.
• Set the unit on a at, level surface.
• Loosen the knob (a) on the coupler (b).
a
b
c
d
e
• Push in the release button (c) located on the
lower shaft (d). Align the release button with the
positioning hole and slide the two shafts together.
Rotate the lower shaft until the button (c) locks into
the positioning hole.
c
• Tighten the knob securely.
NOTE: If the button does not release completely in
the positioning hole, the shafts are not locked into
place. Slightly rotate from side to side until the button
is locked into place.
c
