McHale W2020 Round Bale Wrapper
59

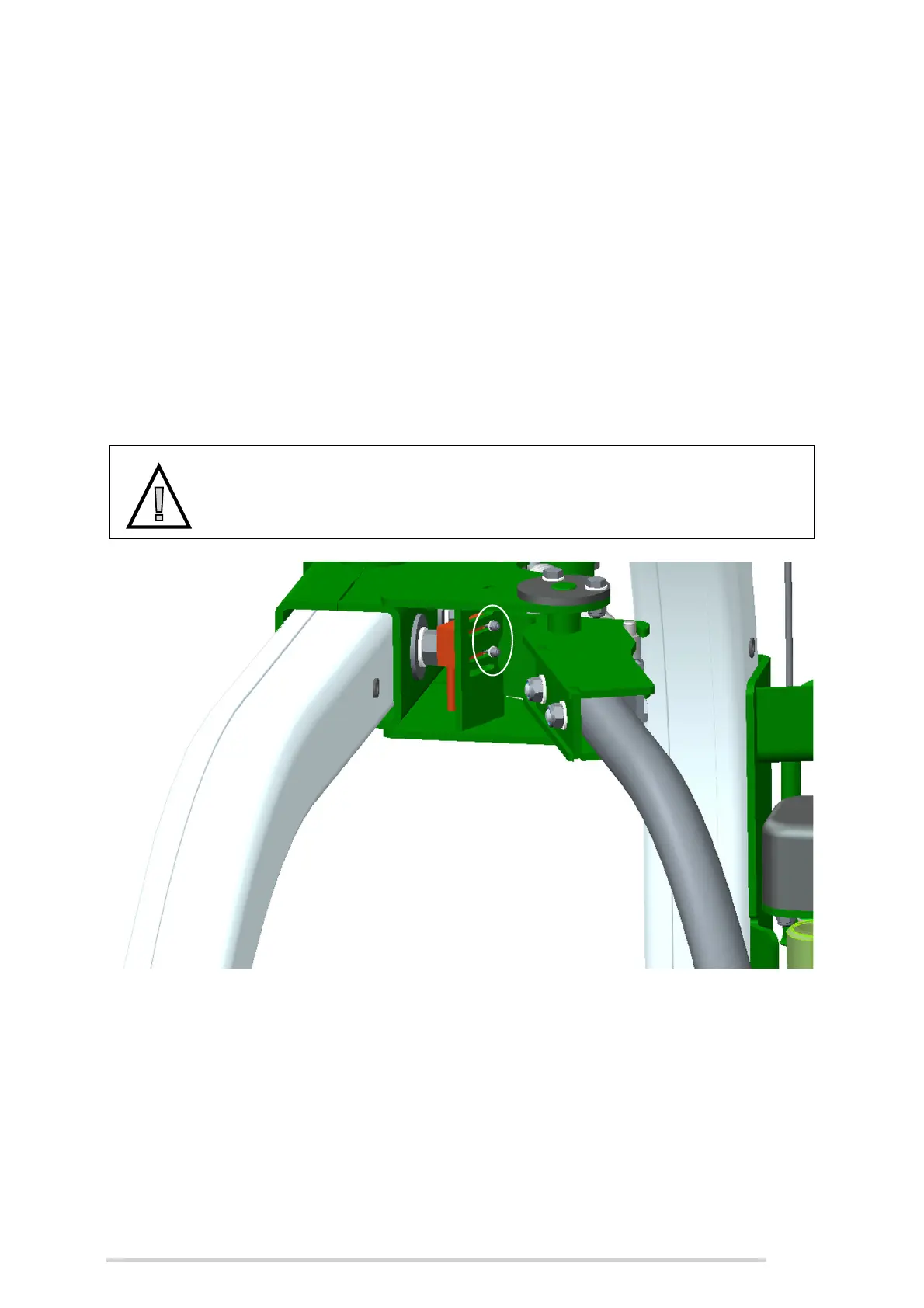

9.8 Trip arm switch
The trip arm switch will need to be properly adjusted if it ever needs replacement or has
been moved for any reason. This may be adjusted as follows:
1. Loosen two M4 bolts just enough to move switch.
2. Ensure arm is in the correct working position.
3. Move switch against tab until plunger is protruding 1 - 2 mm outside the main
switch body.
4. Tighten the two M4 bolts.
NOTE: Switch must be set correctly to ensure proper functioning of trip arm.
Do not bypass circuit in any way.
CAUTION: Switch must be set correctly for trip arm to function
Switch must be set correctly to ensure proper functioning of trip arm. Do
not bypass circuit in any way.
