McHale W2020 - Dispenser Height Adjustment

McHale W2020 Round Bale Wrapper
60
9.9 Dispenser height adjustment

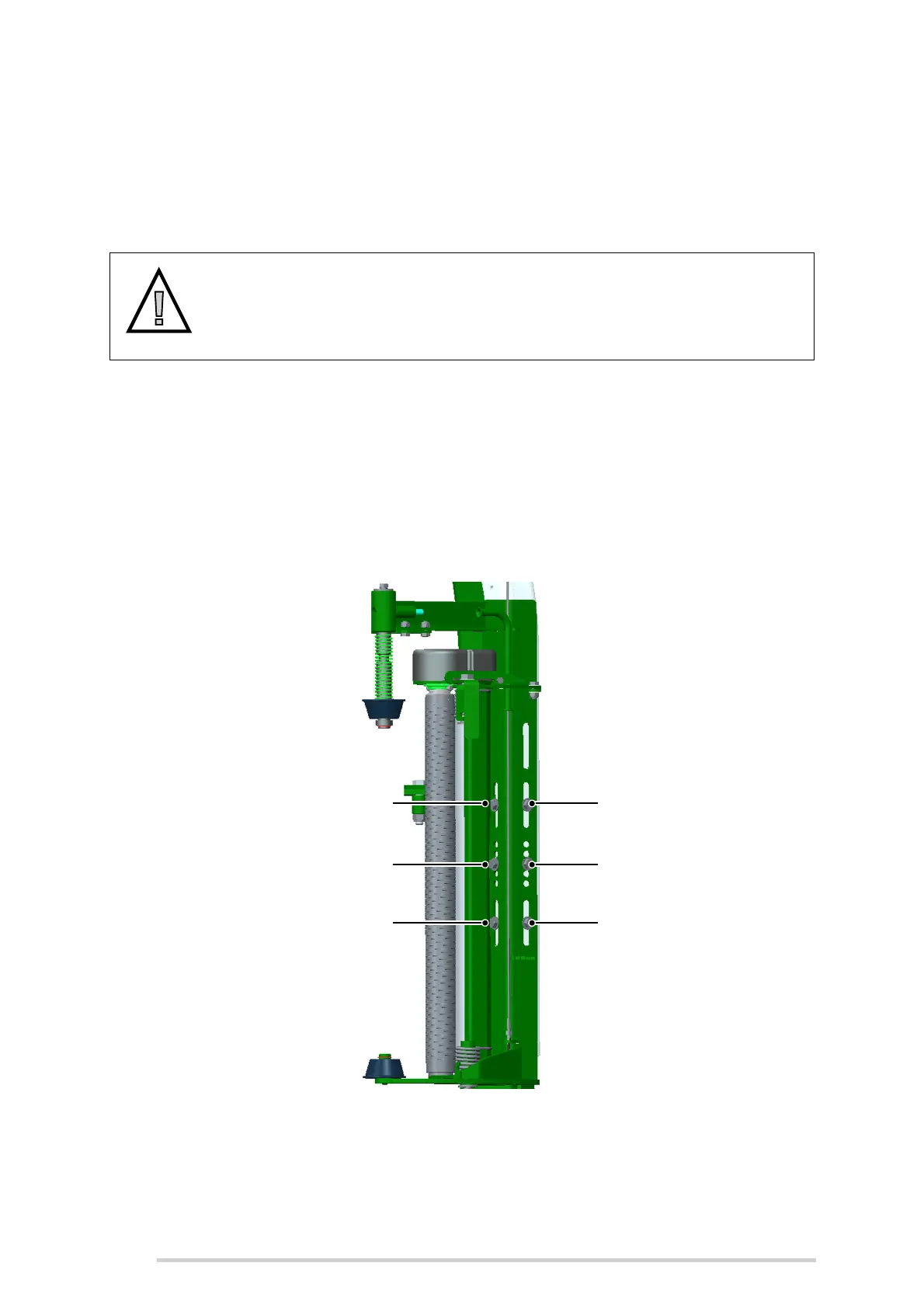

The plastic film needs to be applied around the centre of the bale to ensure optimum
coverage. To adjust this the dispenser may need to be adjusted up or down as
necessary.
1. Remove the two centre bolts and washers.
2. Slacken the top and bottom sets of bolts back a few threads, but do not remove
them as they support the full weight of the dispenser unit.
3. There are three height positions for the dispenser unit. Move the dispenser up
or down as required. Insert the centre bolts when the required height has been
selected.
4. Tighten all bolts fully.
5. Ensure both dispensers are set at the same height adjustment.
CAUTION: Do not adjust the dispenser too low!
Do not adjust the dispensers too low as there is a danger they may
touch the chassis.
Ensure both dispensers are set at the same height adjustment.
