CHECK INFO TELL-TALE
The CHECK INFO tell-tale illumination indicates
that a message regarding additional tell-tale
information is displayed on the alphanumeric display of
speedometer. Dependant of the message displayed, a
buzzer may accompany the message.
Move the coach to a safe parking area to view the
message displayed on the alphanumeric display of
speedometer. After the message has been recorded,
the operator can press the TRIP button to dismiss the
message. The CHECK INFO tell-tale will remain
illuminated, but the message will not appear in the
alphanumeric display of speedometer until the system
re-broadcasts the signal.
The tell-tale information displayed on the
alphanumeric display of speedometer are
FAST IDLE,
BACKUP ALARM, Digital Wheel End Sensor (WHL END),
TAG LOCK, SHOW MODE
and ALTERNATOR NOT GEN.
The following Starter Diagnostic messages will
display when the
ENGINE START switch is pressed but
a condition is preventing the engine from cranking:
FRONT MODE SW, REAR RUN SW, TURN ON IGN,
SELECT NEUTRAL and STARTER LOCKOUT.

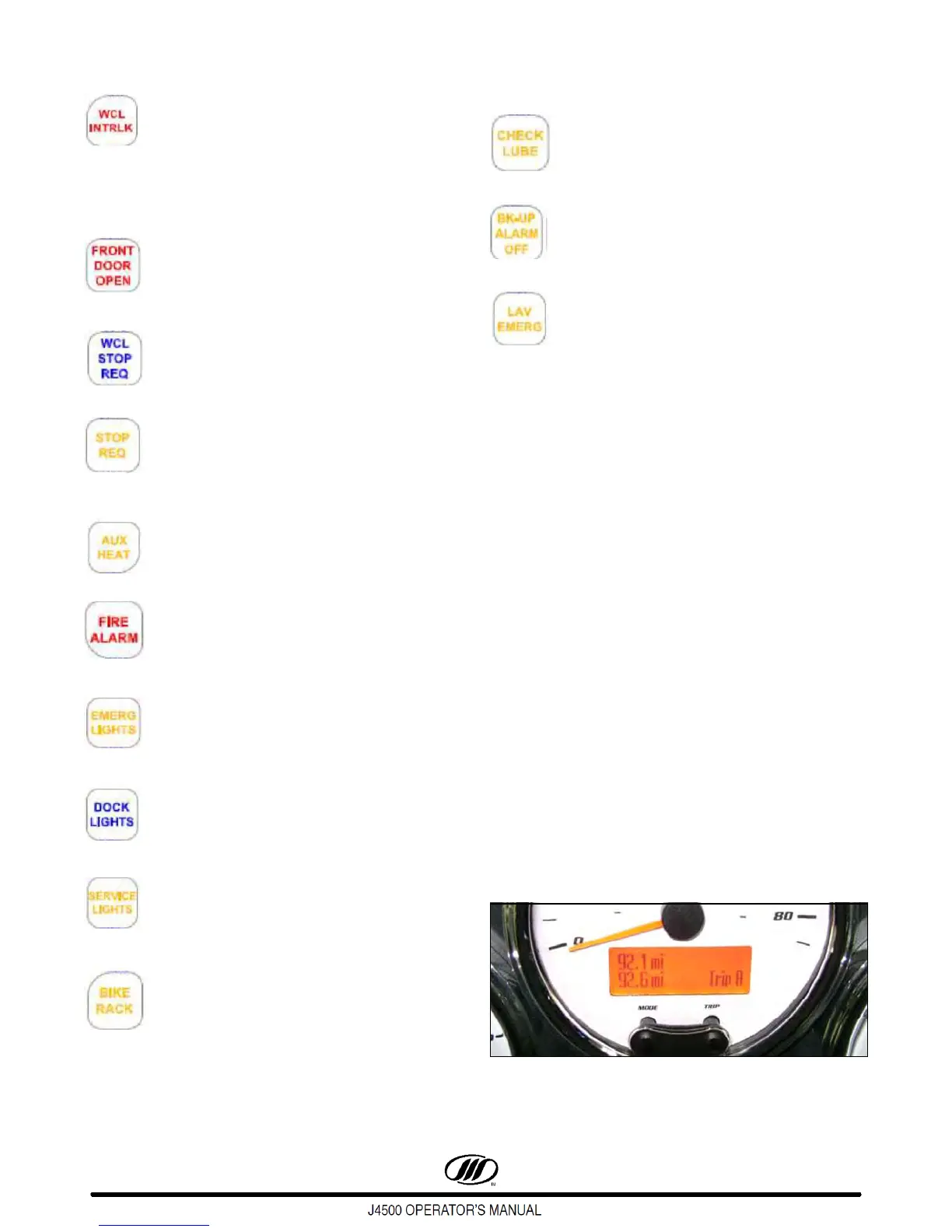

Figure 14. Alphanumeric Display
WCL Interlock (Red) - Tell-tale illuminates
when the wheelchair lift interlock is
activated. The wheelchair interlock system,
when activated, disables the transmission
shift and throttle, sets the park brake
solenoid, and begins engine fast idle.
Front Door Open (Red) - Tell-tale light
illuminates when the entrance door is open.
WCL Stop Request (Blue) - Illuminates
when a passenger in the wheelchair area
presses the stop button.
Stop Request (Yellow) - Tell-tale lights
when a passenger presses the stop
request button.
Aux. Heat (Yellow) - Illuminates when the
auxiliary heater has been activated.
Fire Alarm (Red) - Illuminates when the
temperature sensors sense heat from a fire
in the engine compartment.
Emergency Lights (Yellow) - Tell-tale is
disabled.
Dock Lights (Blue) - Tell-tale is disabled.
Service Lights (Yellow) - Tell-tale
indicates engine compartment. light is ON.
Bike Rack (Yellow) - Tell-tale is disabled.
Check Lube (Yellow) - Tell-tale is
disabled.
Back-up Alarm Off (Yellow)- Tell-tale is
disabled.
Lavatory Emergency (Yellow)- Tell-tale
illuminates when a passenger presses the
emergency button in the lavatory.
