12 - SERVICE AND MAINTENANCE
Take care when inspecting or servicing the coach to avoid being injured. Some components
may be hazardous if handled improperly. Poor maintenance could also lead to malfunctions,
which could cause personal injury or damage to the coach.

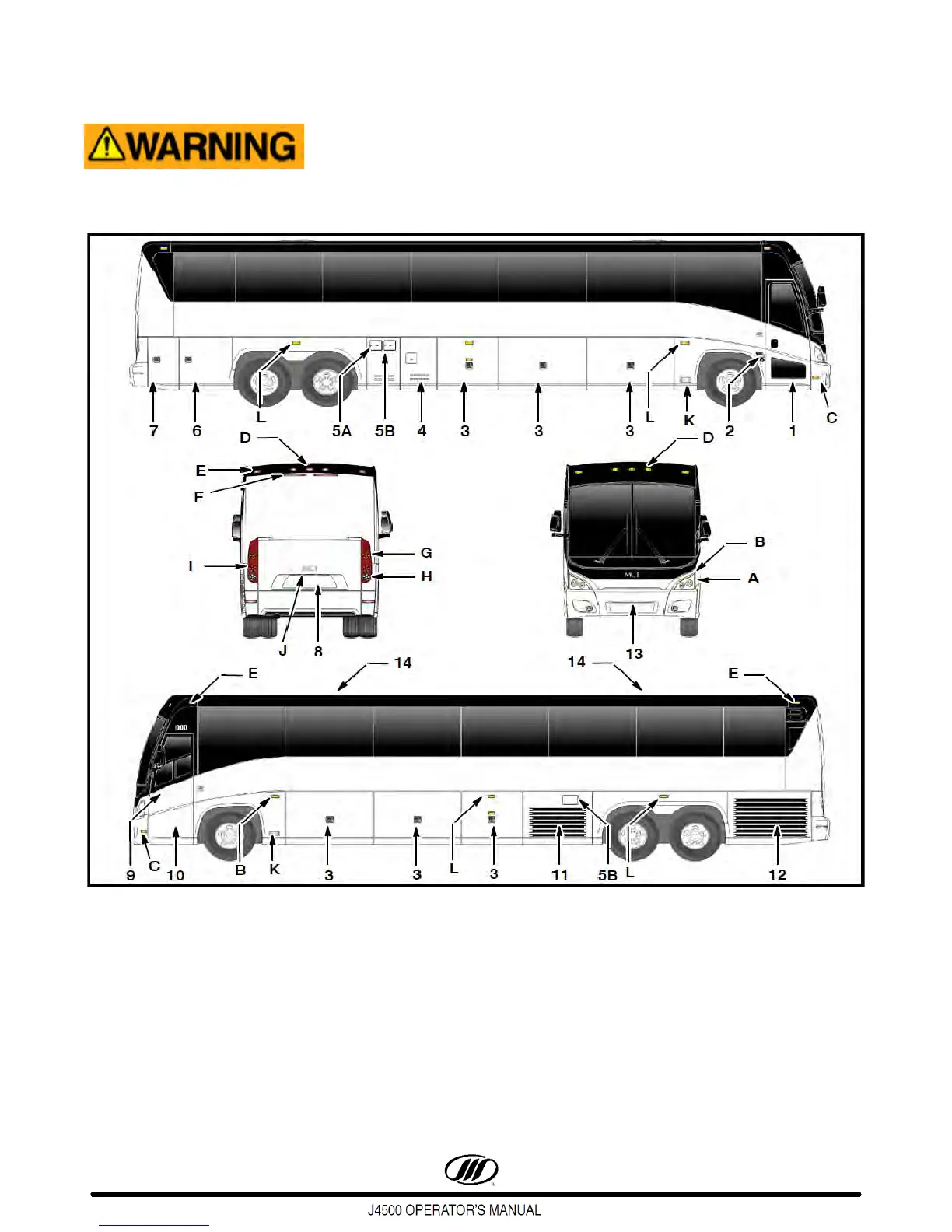

Figure 86. Exterior Components
EXTERIOR COMPONENTS
1. Entrance Door
2. Entrance Door Exterior Switch
3. Baggage Compartment
4. Battery Compartment
5. A. Diesel Exhaust Fuel (DEF) Tank Filler Door
B. Diesel (ULSD) Fuel Tank Filler Door
6. Wheelchair Lift Compartment
7. Rear Side Service Compartment
8. Rear Engine Service Compartment
9. Front Junction Box
10. Front Service Compartment
11. A/C Condenser Compartment
12. Radiator Compartment
13. Spare Tire Compartment
14. Roof Hatch
