25June 2016
4 - STEERING COLUMN & FLOOR-MOUNTED CONTROLS

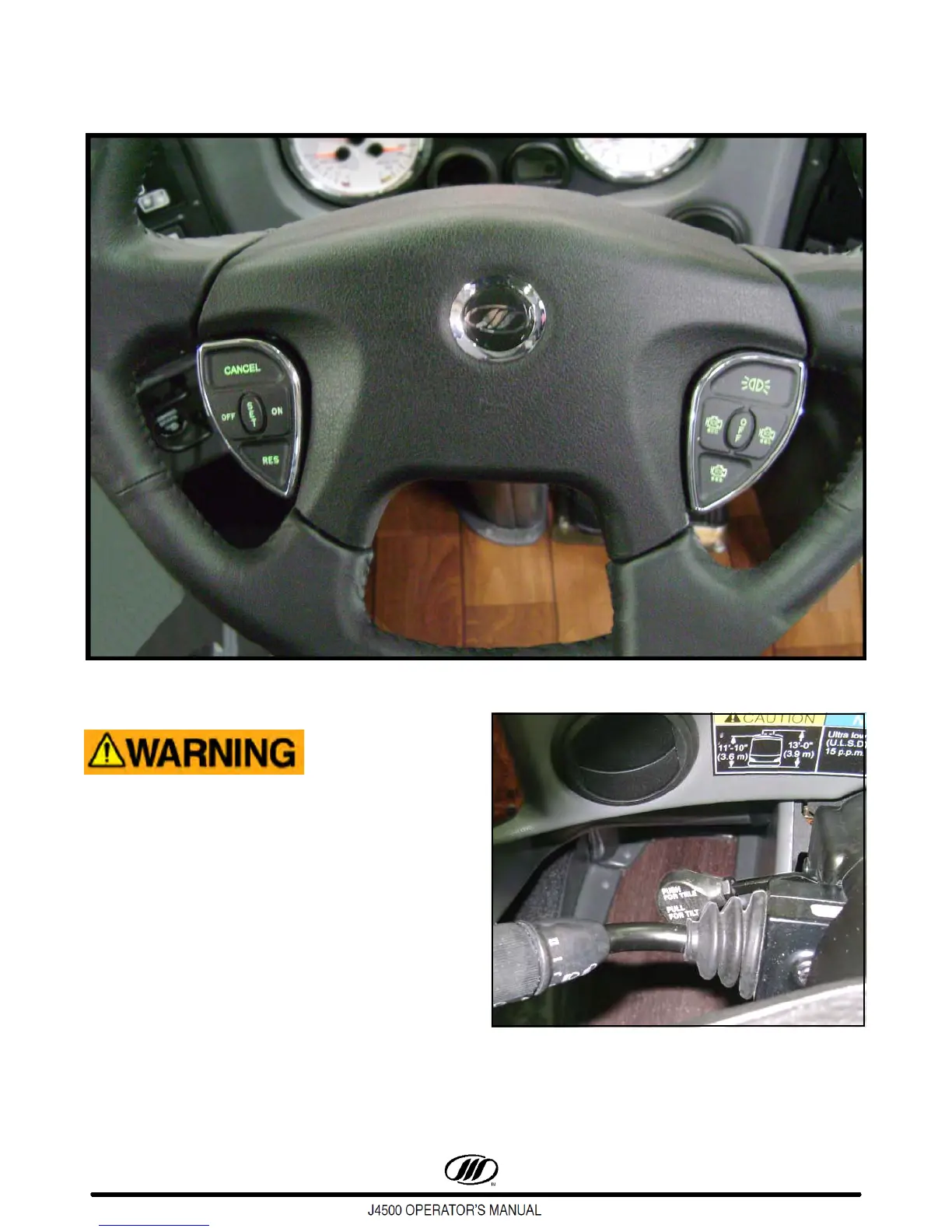

Figure 24. Steering Wheel
STEERING COLUMN
Ensure that the column is firmly locked
before driving. Do not adjust the steering
column while driving; steering control could
be lost.
The tilt and telescoping steering column has a
molded polyurethane steering wheel with fingertip
cruise and engine brake controls.
The tilt/telescoping control lever is on the LH side
of the steering column. Pull on the adjustment lever
and tilt the steering wheel to the desired position. Push
on the adjustment lever and raise or lower the
assembly as necessary. Release the lever to lock.
Ensure that the column is securely latched.
Figure 25. Tilt / Telescoping Control Lever
