MCi J4500 - Manual Lift Operation and Seating

June 201636
TO STOW LIFT (IN):
1. Press STOW button until lift stops (retracts
fully).
2. Release the cabin door by placing the LOCK/
UNLOCK switch at the end of the heat duct to
UNLOCK.
The cabin door must be closed before the lift
key is switched OFF. This action controls both
the pneumatic door locks as well as providing
power to the lift.
3. Press POWER switch to OFF.
4. Store hand-held pendant in lift storage clip.
5. Remove pin from lower door hinge. Insert pin in
storage clip.
6. Close door.
7. Turn wheelchair lift key switch on the lower, LH
switch pane to OFF.
MANUAL WHEELCHAIR LIFT OPERATION
In case of an electrical or other malfunction,
passengers may be unloaded by manually operating
the lift. The manual bypass valves and hand pump are
located in the side service compartment directly to the
rear of the w/c compartment.
Manual operation should only be used for
unloading passengers during a malfunction.
DO NOT use the manual operation feature to
load passengers.
Refer to the BRAUN manual provided with your
coach and the decal on wheelchair lift door
( Figures 44 and 45 ) for information on manual
wheelchair lift operation.

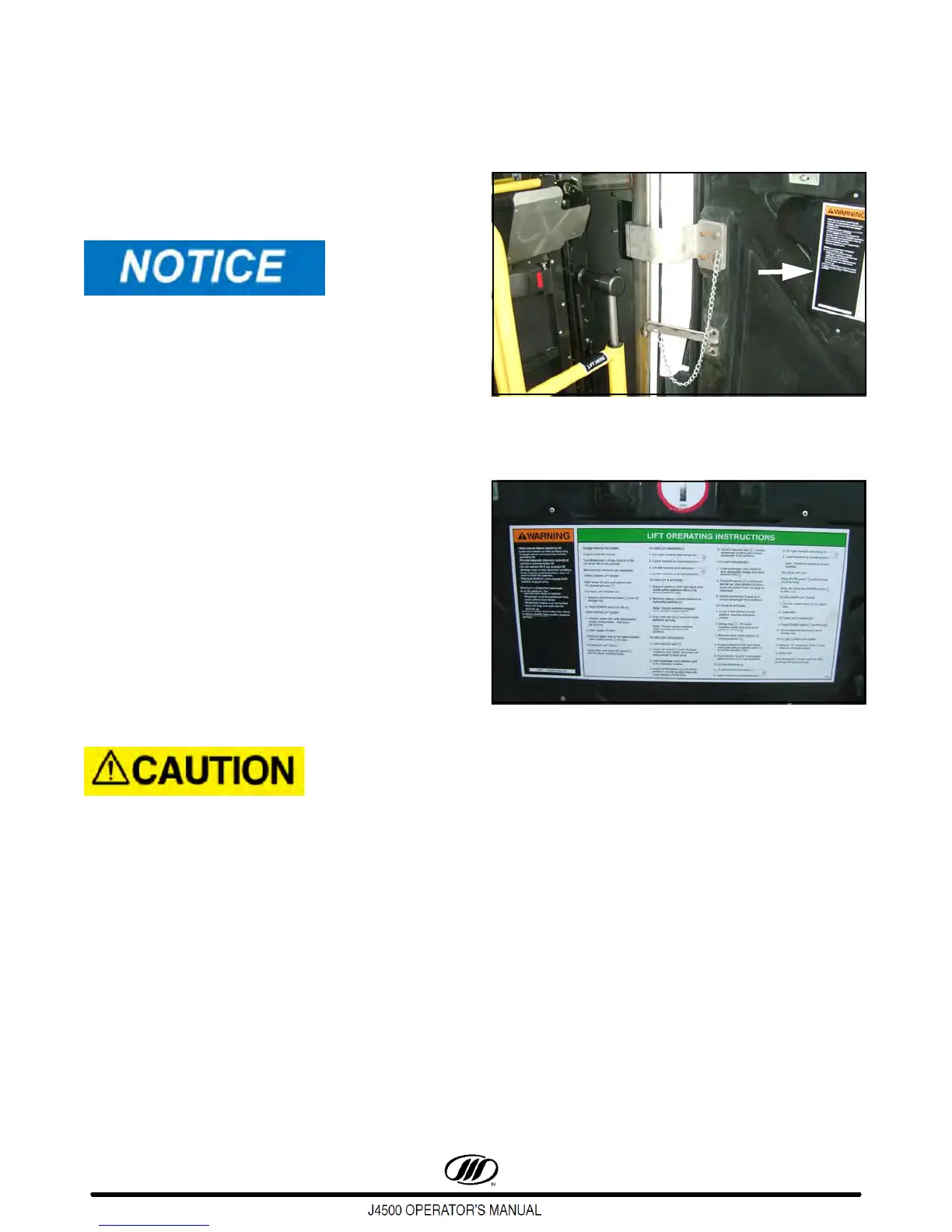

Figure 44.
Figure 45.
