RH TELL-TALE CLUSTER

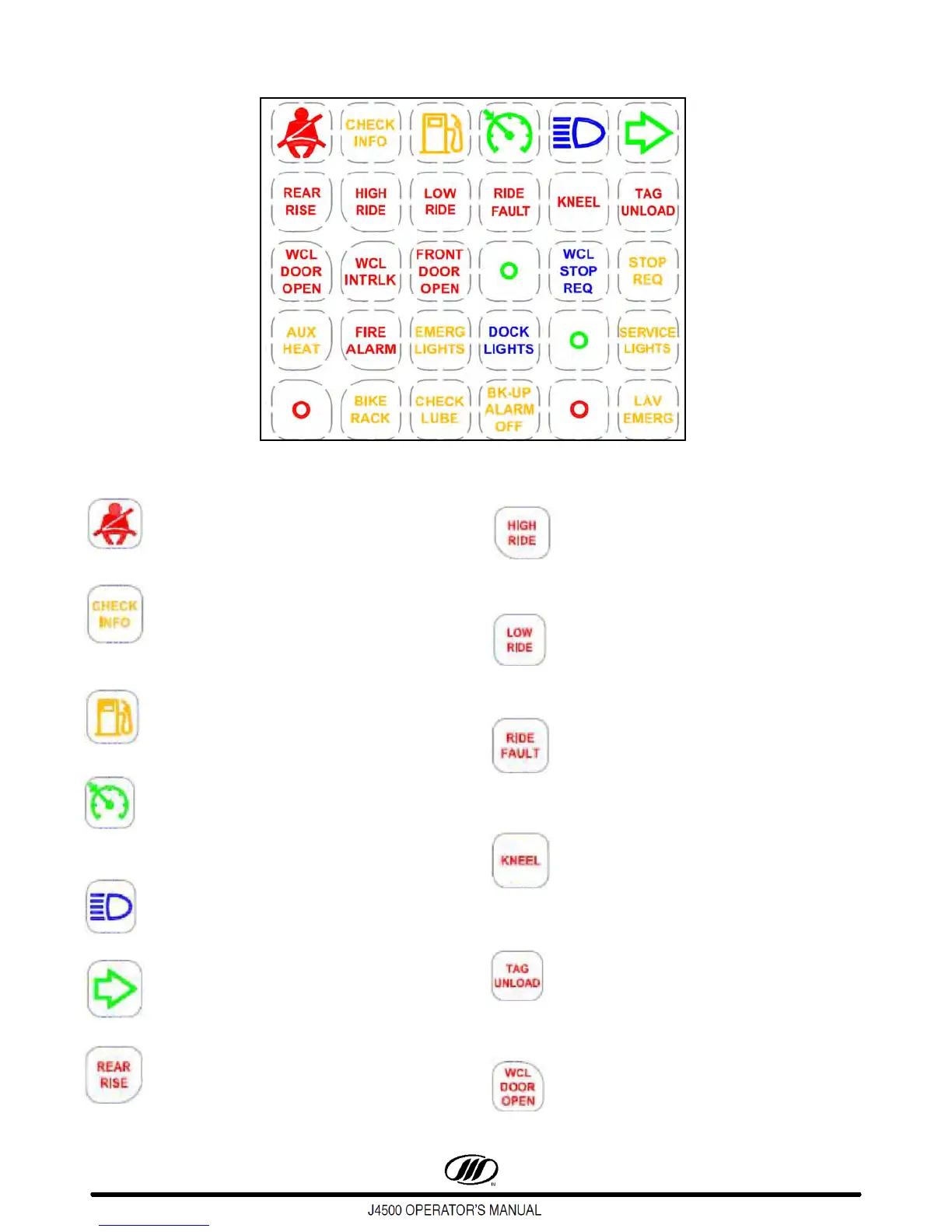

Figure 13. RH Tell-tale Cluster
Driver Seat Belt (Red) - Tell-tale lights
when park brake is released and the
driver's seat belt is not buckled.
Check Info (Yellow) - Tell-tale indicates
message on alphanumeric display of
speedometer. Refer to next page for further
information.
Low Fuel (Yellow) - Tell-tale will illuminate
when fuel level is below 12 percent
(approx.) left in the tank.
Cruise Enabled (Green) - Tell-tale
indicates that the cruise control is
activated.
High Beams (Blue) - Hi-beam tell-tale will
illuminate when the main headlamps are on
HIGH intensity.
Right Turn Indicator (Green)
Rear Rise (Red) - Tell-tale illuminates and
a buzzer sounds when the Rear Rise
switched is pressed.
High Ride (Red) - Tell-tale will illuminate
and a buzzer sounds when the coach is in
transition and is maintained in HIGH RIDE.
Low Ride (Red) - Tell-tale flashes when
the coach is in transition to and is
maintained in LOW RIDE.
Ride Fault (Red) - Tell-tale illuminates
when a fault has occurred in the MDSS.
Report problem to maintenance personnel.
Kneel (Red) - Tell-tale flashes and a
buzzer sounds when the coach is kneeling
or recovering. When kneel is reached, the
lamp stays on and the buzzer stops.
Tag Unload (Red) - Tell-tale Illuminates
when the tag axle is unloaded.
WCL Door Open (Red) - Tell-tale will
illuminate indicating door ajar or
unlocked condition.
