MCi J4500 - Daily Inspections and Checks; Exterior Inspection Procedures; Interior Components Checklist

3June 2016

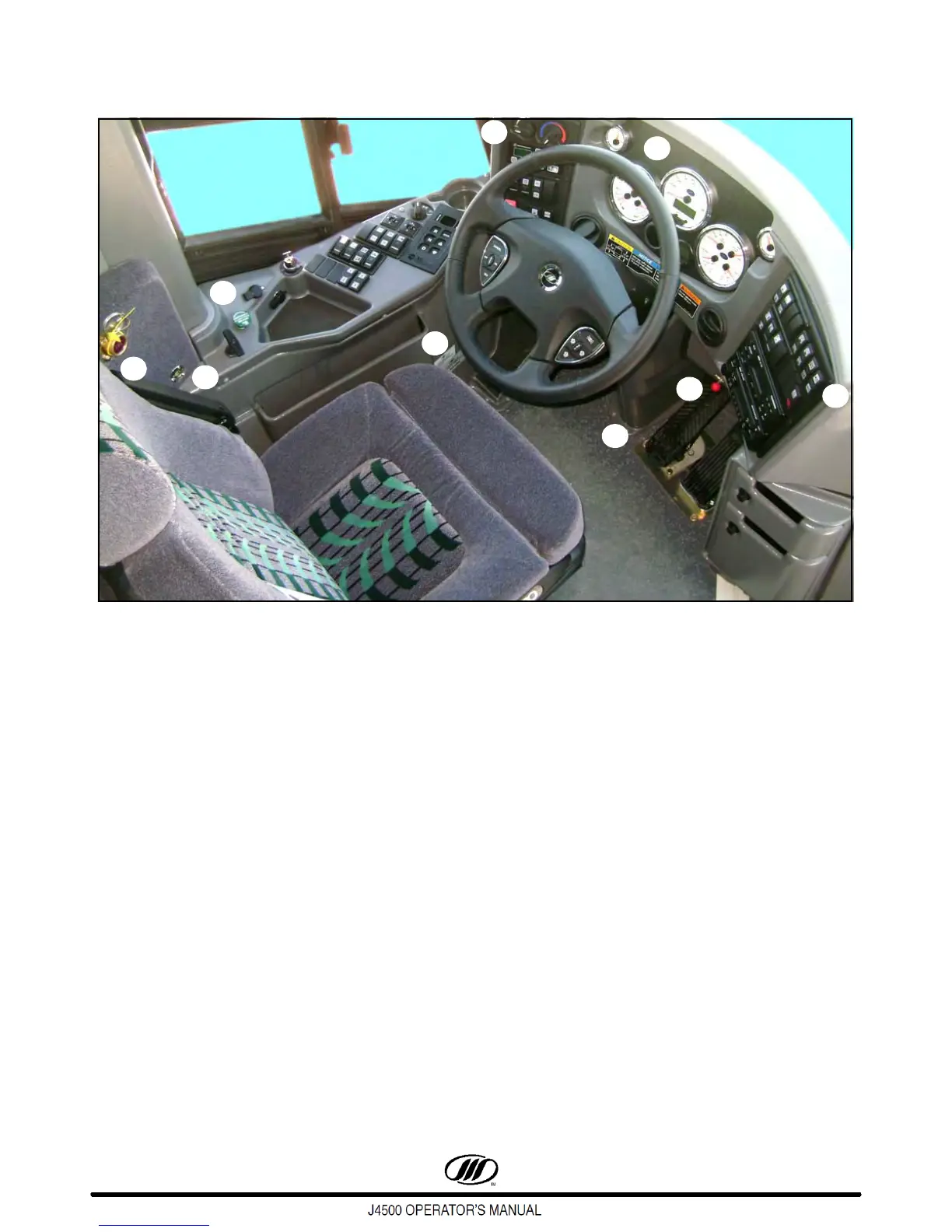

Figure 3. Driver’s Area
1. Instrument Panel
• System Gauges
• LH Tell-tale Cluster
• RH Tell-tale Cluster
• Driver’s Vents
2. Lower, LH Console
• Cup Holder
• Headlight Switch
• Mirror Controls
• Pushbutton Shift Selector
• Switches
• Wheelchair Master Switch ( Optional )
• 12 Volt Power Source
• Anti-Slip Pad
• Emergency Park Brake Release
• Front Service Compartment Door
Release
3. LH Switch Panel
• Driver’s Fan Control
• Driver’s Heat Control
• Micromate Control Panel
• Switches
4. RH Switch Panel
• Switches
• Audio and Video System Controls
5. Steering Column
• Steering Wheel with Switch Pods
• Electric Horn
• Smart Stick Control, featuring Turn
Signals, Air Horn, Headlamp Dimmer,
Windshield Wipers and Washer
• Tilt and Telescoping Control Lever
6. Entrance Door Override Valve
7. Amerex Fire Suppresion System Manual Fire
Button
8. Microphone Receptacle
9. Certification and Emission Control Plate
1
2
3
4
5
6
7
8
9
