65June 2016

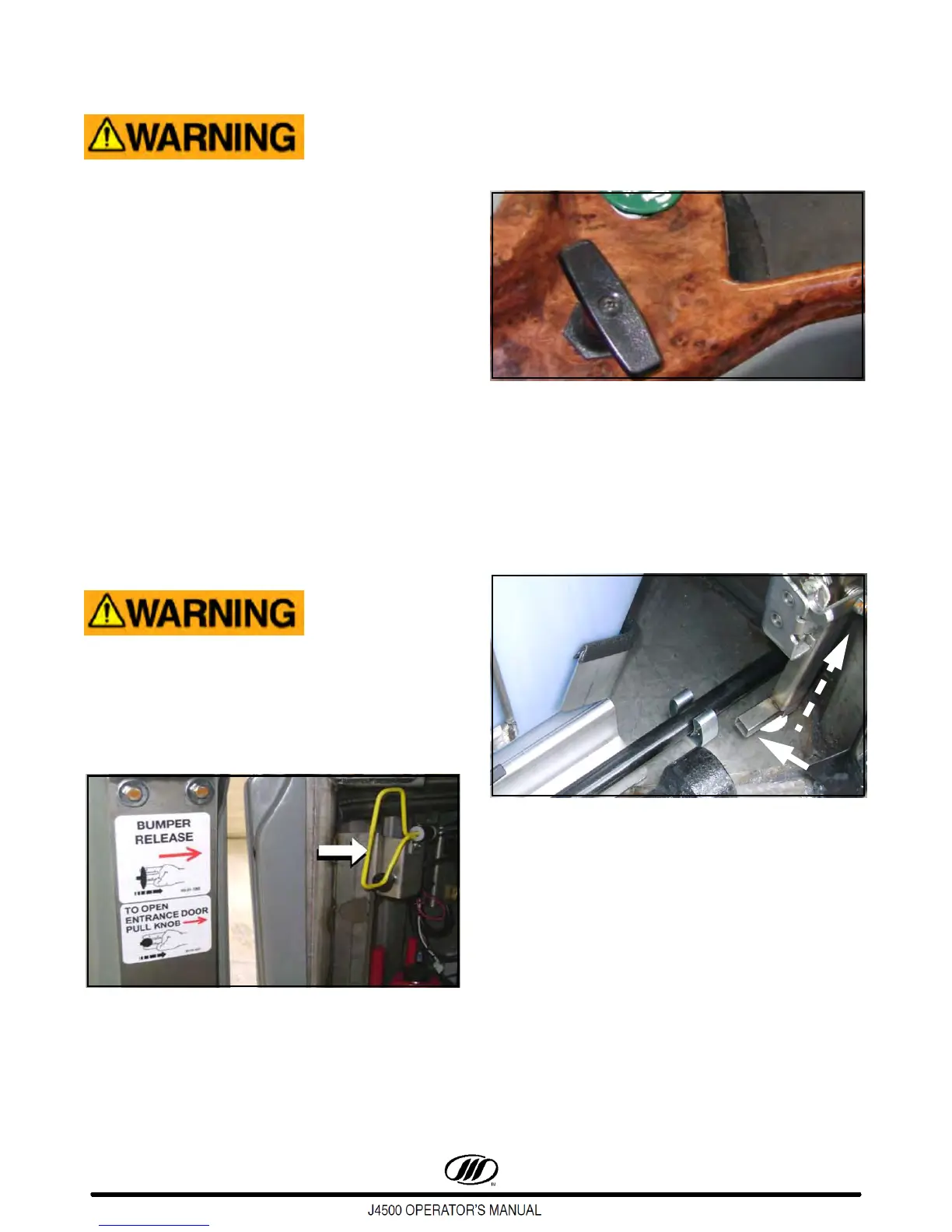

COMPARTMENT ACCESS ( Figure 86 )
Stand clear when opening the rear engine
door as it swings upwards when released to
open.
Turn OFF the engine enable switch any time
the engine compartment is opened.
Engine Compartment
The engine service compartment door release is in
the rear, curbside, side service compartment.
Condenser Compartment
The latch is located in the roadside, fuel fill door.
Radiator Compartment
Open with a handle located on the road side of the
rear engine compartment.
Spare Tire Compartment
Ensure sufficient clearance prior to releasing
the spare tire compartment door
.
The bumper release handle is in the roadside front
service compartment (Figure 88.).
Figure 88. Bumper Release Handle
Front Service Compartment
A t-handle, located at the rear of the drivers lower,
LH console, is utilized to release the front service
compartment door.
Figure 89. T-handle
In addition, there is a provision for release of the
front service compartment door, beside the windshield
washer reservoir. This allows the compartment door
release to be operated from outside the coach. Push
upwards on mechanism, through the hole opening, to
release compartment door latch ( Figure 90 ).
Figure 90.
