June 201664

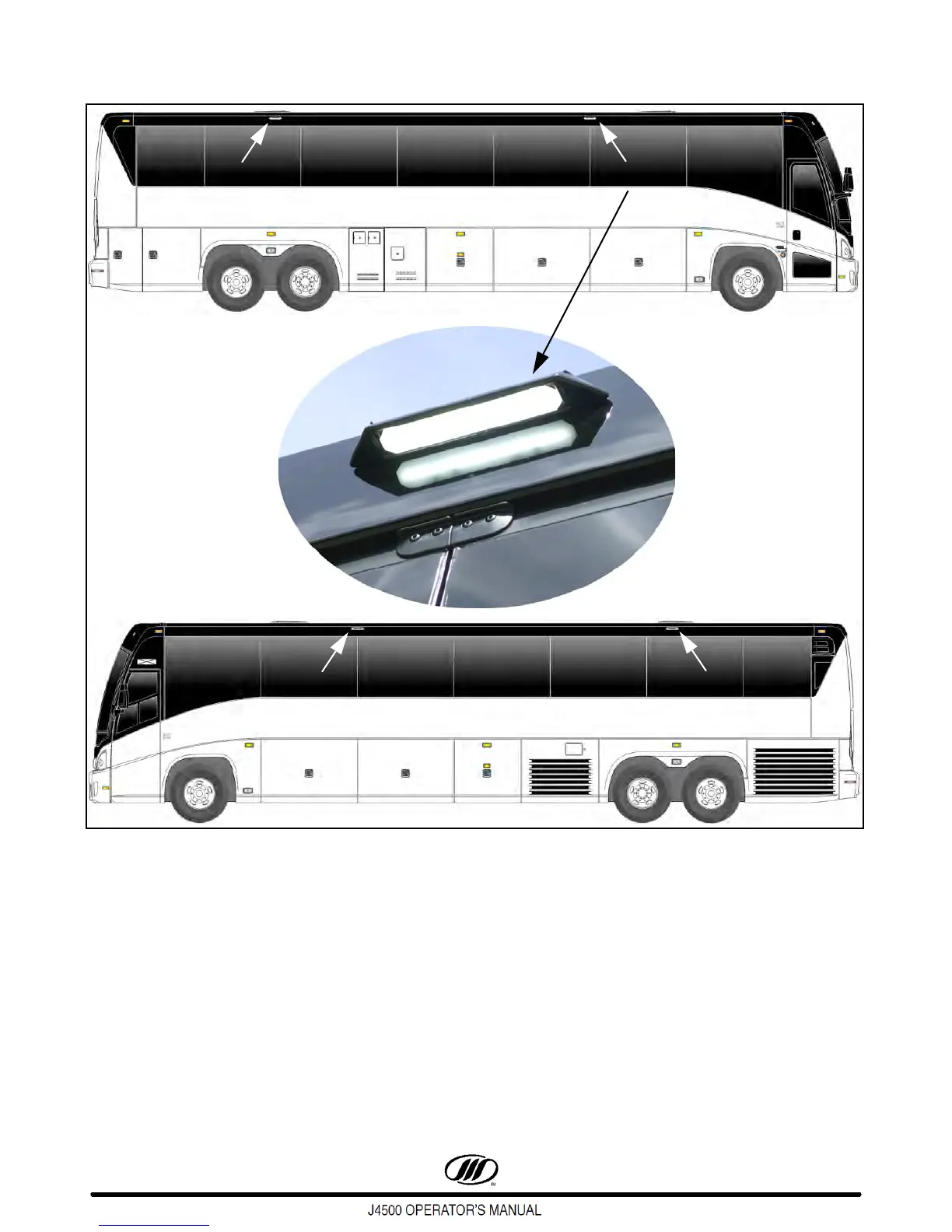

Figure 87. Drip Rail Curb Light
EXTERIOR LIGHTING ( Figure 86 )
a. Headlights
b. Multi-function LED (sweep style),
Directional Light / Hazard Light / Daytime
Running Light
c. Reflectors
d. Identification Light
e. Marker Light
f. Supplemental Stop Light
g. LED Directional Light
h. LED Backup Light
i. LED Stop Light
j. License Plate Light
k. LED Cornering Light
l. Directional Light
m. Drip Rail Curb Light - Lights on both
sides of the coach automatically illuminate when
the entrance door is opened or when Reverse is
selected on the PBSS. Corresponding side of
coach illuminates when the turn signal is pressed,
and the coach speed is less than 2.5 mph / 4 km.
