MCi J4500 - Engine Bay and Components Equipped with DD16 Engine

June 201672

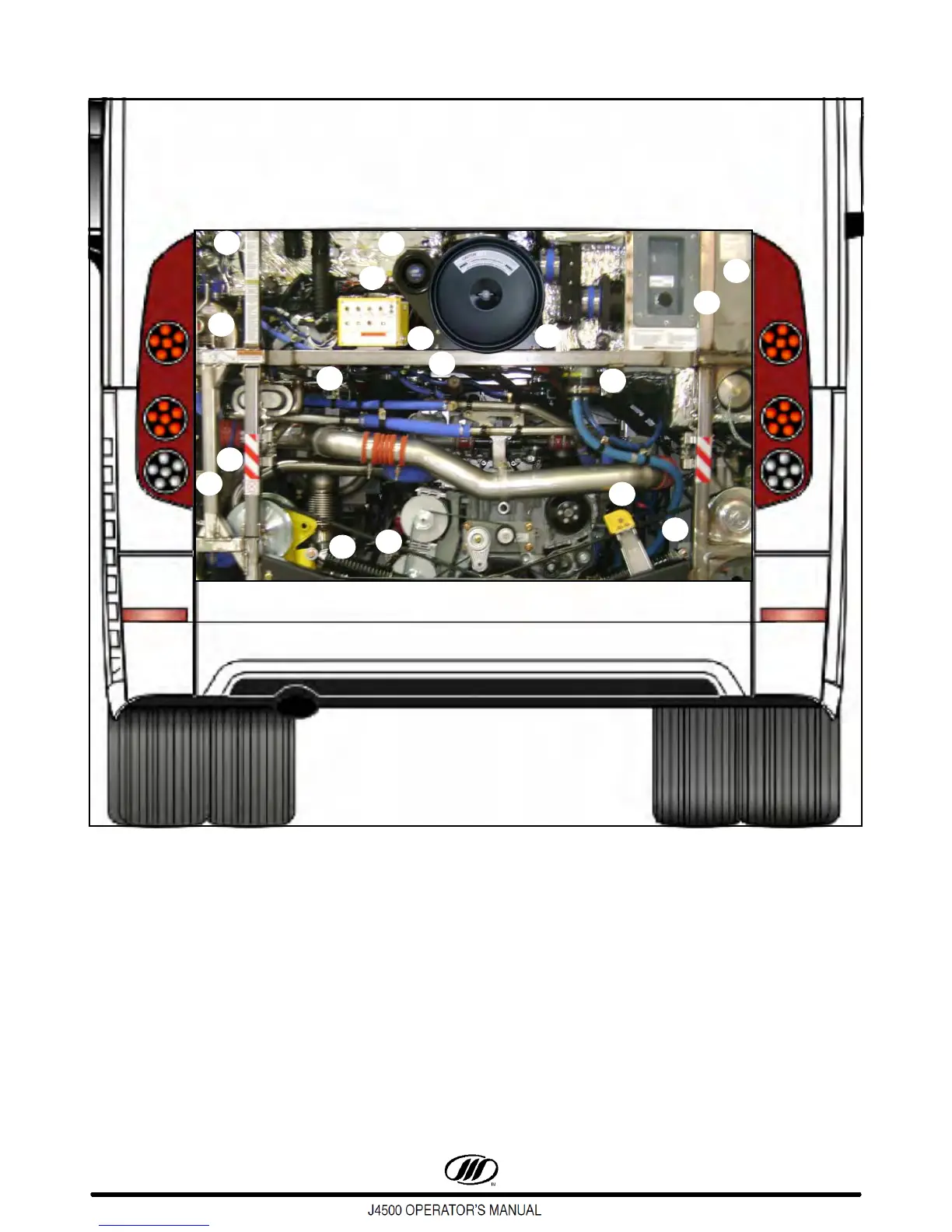

Figure 104. Engine Bay and Components equipped with DD16 Engine.
1. Coolant Fill, 15 psi Rad Cap
2. Remote Electrical Control Box
3. Back-up Alarm
4. Air Filter
5. Power Steering Reservoir
6. Lavatory Service Valves
7. Dual Denso Alternator
8. Coolant Level Sight Glass
9. A/C Belt
10. Fan Belt
11. Aux Heater
12. Engine Oil Fill Tube ( 2 locations )
13. Filter Minder
14. Gear Box Filler Tube
15. Radiator Door Handle location
16. Transmission Oil tube
17. Coach Nameplate ( VIN, Model Year, Date )
