13. Grab the top of the platform and apply enough
force to pull down platform to horizontal
position, ensuring that it engages on the pin of
the handrail assembly.

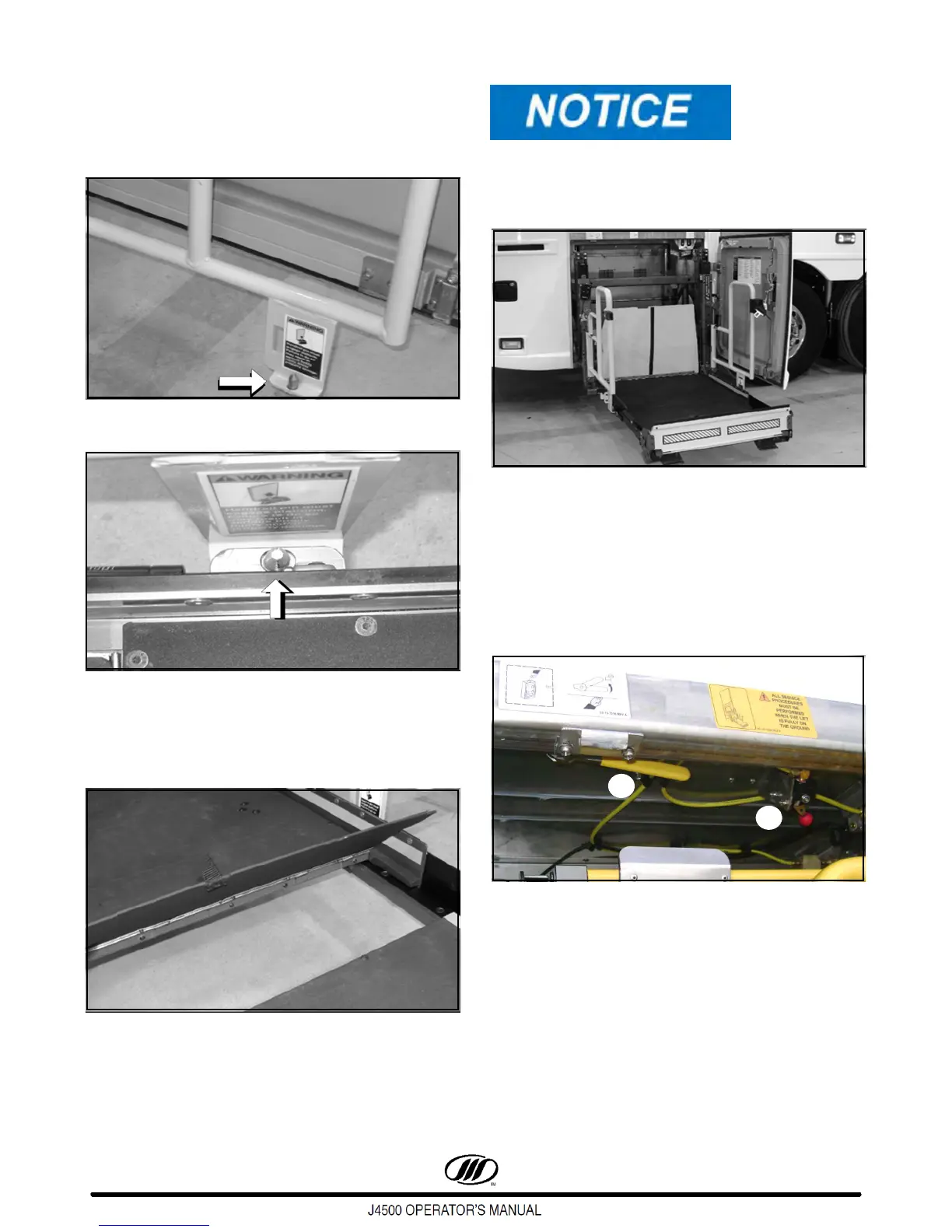

Figure 37.
Figure 38.
14. Grip outer barrier and pull outer platform out
fully, ensuring the center transition plate
engages (locks) outer platform.
Figure 39.
The platform will not raise or lower unless the
outer barrier is in the vertical and locked
position.
Figure 40.
15. Exhaust the door locks and actuating cylinder
on the cabin door by placing the air dump valve
to the release position ( Figure 41 ).
16. Reach into the compartment and push the
manual latch handle upwards to release the
cabin door ( Figure 41 ).
Figure 41.
1. Latch handle location
2. Air dump valve
