McIntosh C2700 User Manual

12
USB 35%
DSD256
IR Sensor receives
commands from a
Remote Control
STANDBY/ON Push-button
with indicator, switches the
C2700 ON or OFF (Standby)
and resets the microprocessors
VOLUME Control allows ad-
justment of the listening level
for both channels. Also used
to change the various TRIM
and SETUP Functions
Connection for low impedance
dynamic headphones, for private
listening
MUTE Push-button mutes
the audio from the Loud-
speakers and Headphones
INPUT Control used to
select a source for listening
and recording. The control is
also used to enter the TRIM
or SETUP Modes and select
the various functions
Meter indicates the
Right Channel Output
of the Preamplifier
Meter indicates the
Left Channel Output
of the Preamplifier
OUTPUT 1 and 2 Push-buttons
with indicators, switch the
Preamplifier Outputs 1 and 2
On or Off
INFORMATION DISPLAY indicates
the Sources, Volume, other Audio
Settings, Operational Functions and
Setup Mode Settings

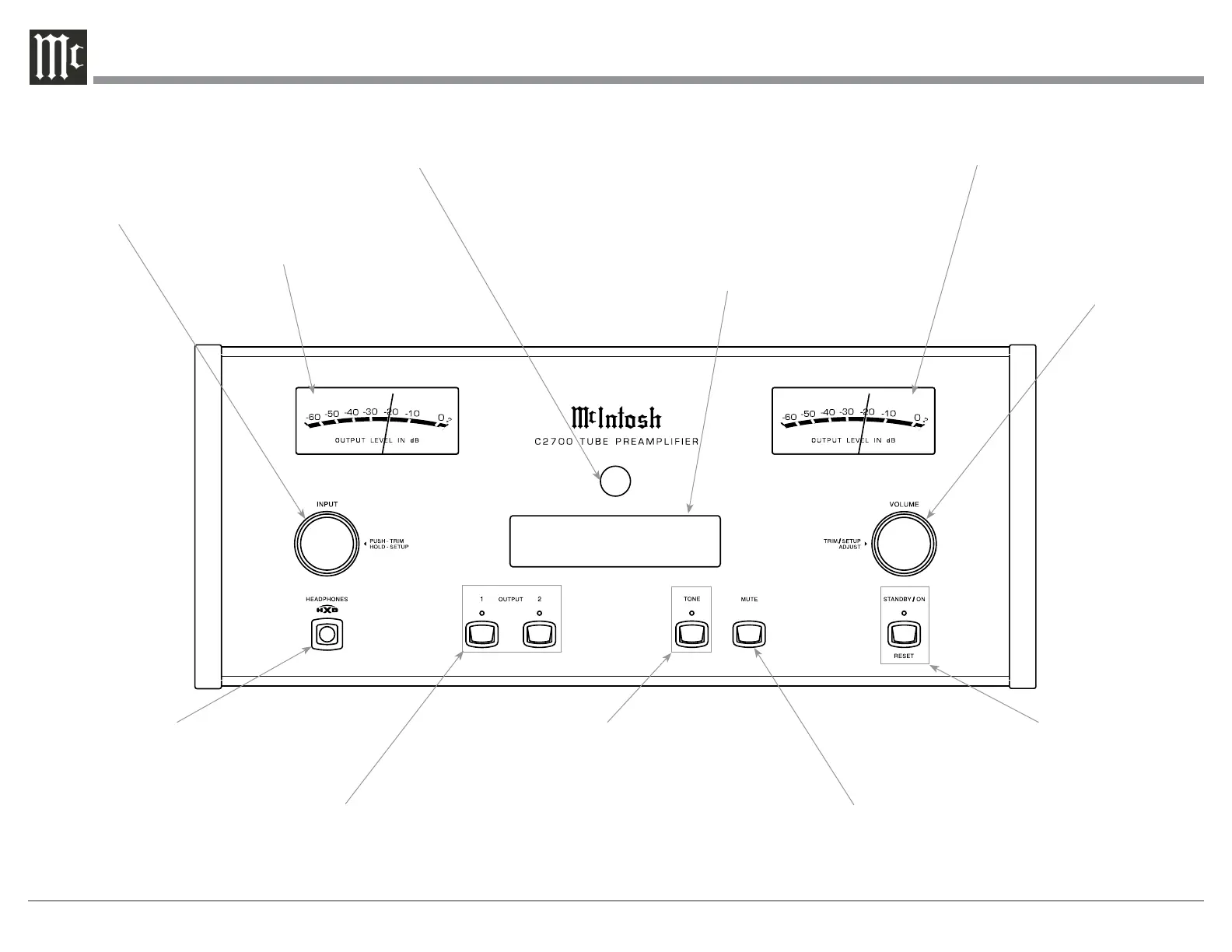

Front Panel Displays, Controls, Push-buttons and Jack
TONE Push-button with indicator,
push to activate the Tone Control
Circuitry for the current Input
Source

McIntosh C2700 Specifications

General

Preamplifier Type	Vacuum Tube
Number of Channels	2
Total Harmonic Distortion	0.08%
Signal to Noise Ratio	100dB
Outputs	3 (2 Balanced + 1 Unbalanced)
High Level Inputs	6
Frequency Response	20Hz to 20kHz +0, -0.5dB
Digital Audio Inputs	2 Optical, 2 Coaxial
Vacuum Tubes	6 12AX7A, 2 12AT7
Dimensions	17-1/2" (44.45cm) width x 7-5/8" (19.4cm) height x 18" (45.7cm) depth
Rated Output Voltage	2.5V Unbalanced, 5V Balanced
Maximum Output Voltage	16V Balanced, 8V Unbalanced
Phono Inputs	1 MC, 1 MM
Output Impedance	100 ohms Unbalanced, 200 ohms Balanced
Headphone Output	Yes
Type	Preamplifier
Gain	15dB (High Level), 40dB (MM), 60dB (MC)
