C2800
Connecting Components
The C2800 has the ability to automatically switch power On/Off to Source Components via the Power
Control connections. The Data Port Connections allow for the remote operation of basic functions using
the C2800 Remote Control HR085. With an external sensor connected to the C2800, remote control
operation of the system is possible from another room and/or when the C2800 is located in a cabinet with
the doors closed.

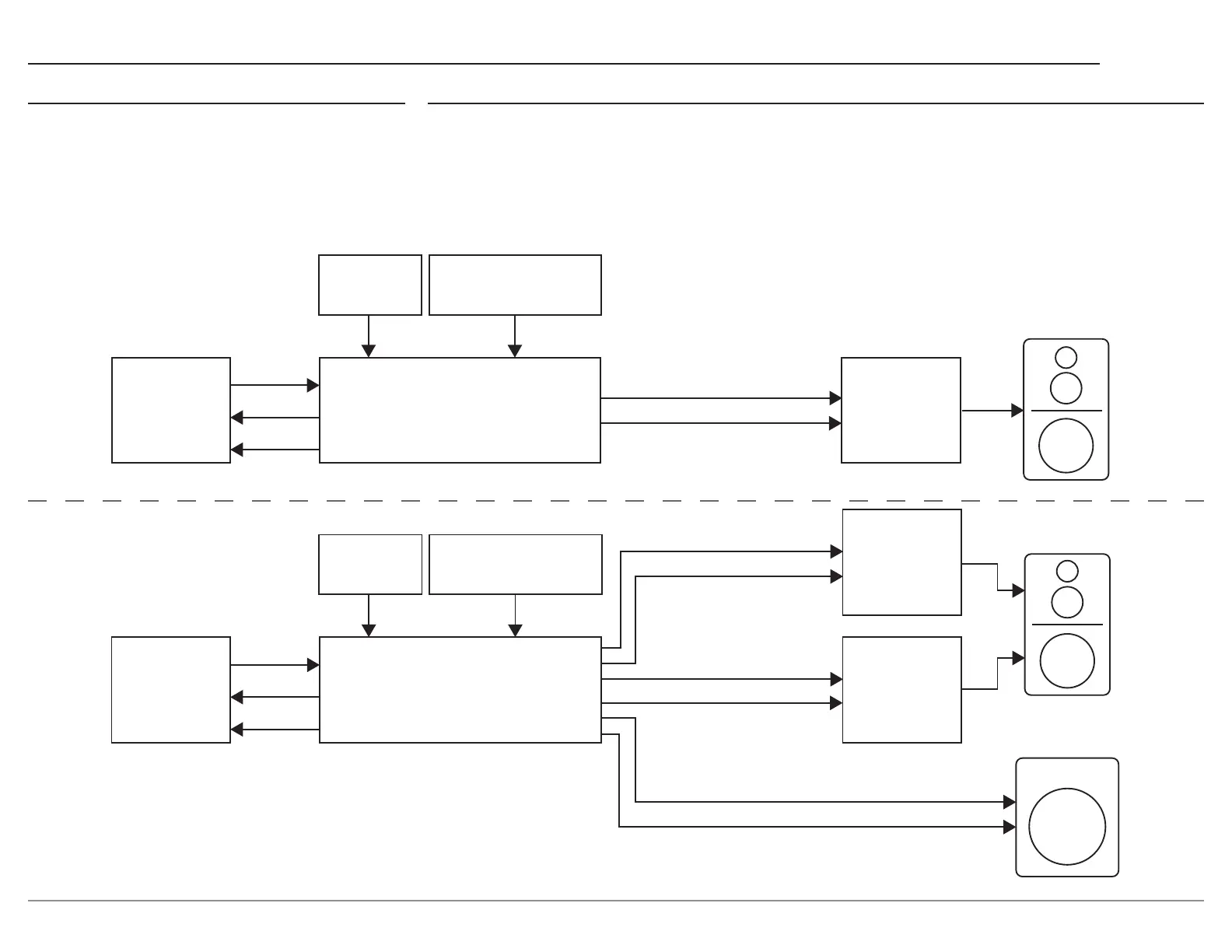

System Conguration
Shown below are two typical system congura-
tions. Your system may vary from this, however
the actual components would be connected in a
similar manner.
Note: The preamplifier or power amplifier may be connected to
the C2800 balanced or unbalanced outputs.
IR
REMOTE
CONTROL
AUDIO
SOURCES
C2800 TUBE
PREAMPLIFIER
POWER
AMP
(
FULL RANGE)
ANALOG OR
DIGITAL
AUDIO
POWER
CONTROL
VARIABLE ANALOG AUDIO
POWER CONTROL
RS232 / NETWORK
CONTROL SYSTEM
DATA
MAIN
SPEAKER
IR
REMOTE
CONTROL
AUDIO
SOURCES
POWER
AMP
(
LOW PASS)
ANALOG OR
DIGITAL
AUDIO
POWER
CONTROL
VARIABLE ANALOG AUDIO
POWER CONTROL
RS232 / NETWORK
CONTROL SYSTEM
DATA
POWER
AMP
(HIGH PASS)
VARIABLE ANALOG AUDIO
POWER CONTROL
VARIABLE ANALOG AUDIO
POWER CONTROL
SPEAKER
POWERED
SUBWOOFER
(OPTIONAL)
C55 AUDIO
PREAMPLIFIER
MAIN
OUT 1
OUT 2
Example 1
Example 2
