The MA5200 can be part of a Multichannel Sound
System for SACD, DVD-Audio and Home Theater.
The Right and Left Front Channels from an Audio/
Video Control Center can “Passthru” the MA5200. In
the following example the AUX Input will become the
“Passthru” input:
1. Connect Audio Cables from the A/V Control
Center Front Left and Right Channel Outputs to
the MA5200 AUX Input Left and Right Jacks.
2. Connect a Control Cable from the A/V Control
&HQWHU=$=RQH$3&3RZHU&RQWURO2XWSXW
WRWKH0$3:5&75/3RZHU&RQWURO
PASSTHRU Input Jack.
Note: Refer to Setup “Passthru” on page 20 to assign
the AUX Input as the “Passthru” Input.
3. Proceed to “Connecting Loudspeaker” on
Page 12.

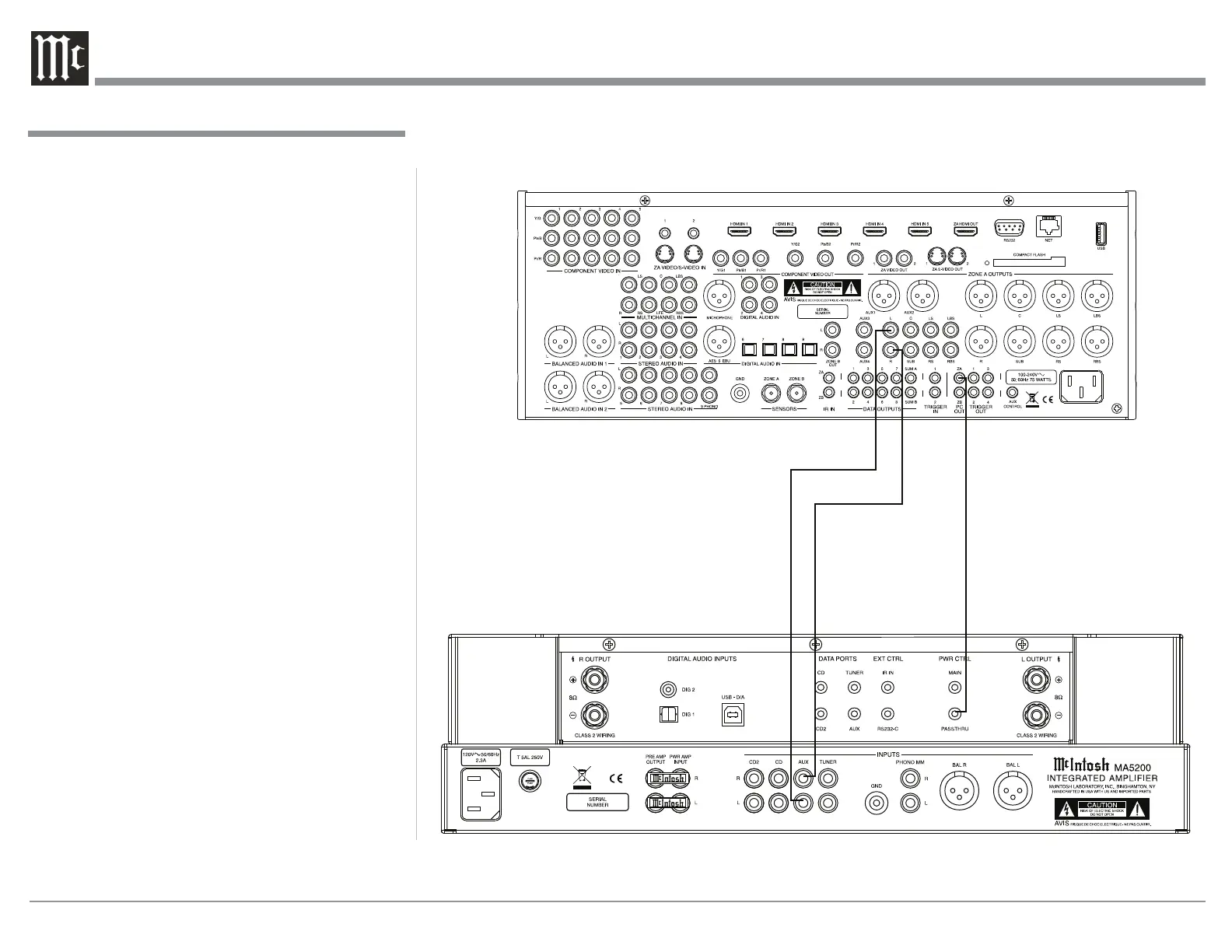

Passthru Connections
Passthru Connections
A/V Control Center

McIntosh MA5200 Specifications

General

Power Output per Channel	100 Watts
Number of Channels	2
Total Harmonic Distortion	0.005%
Input Impedance	20k ohms
Rated Power Band	20Hz to 20kHz
Dynamic Headroom	1.8dB
Preamplifier Output	Yes
Dual Mono Power Supply	No
USB Input	1
Coaxial Input	1
Optical Input	1
Damping Factor	>200
Power Requirement	120V 50/60Hz
Digital Inputs	Coaxial, Optical, USB
Frequency Response	+0, -0.5dB from 20Hz to 20kHz +0, -3dB from 10Hz to 100kHz
