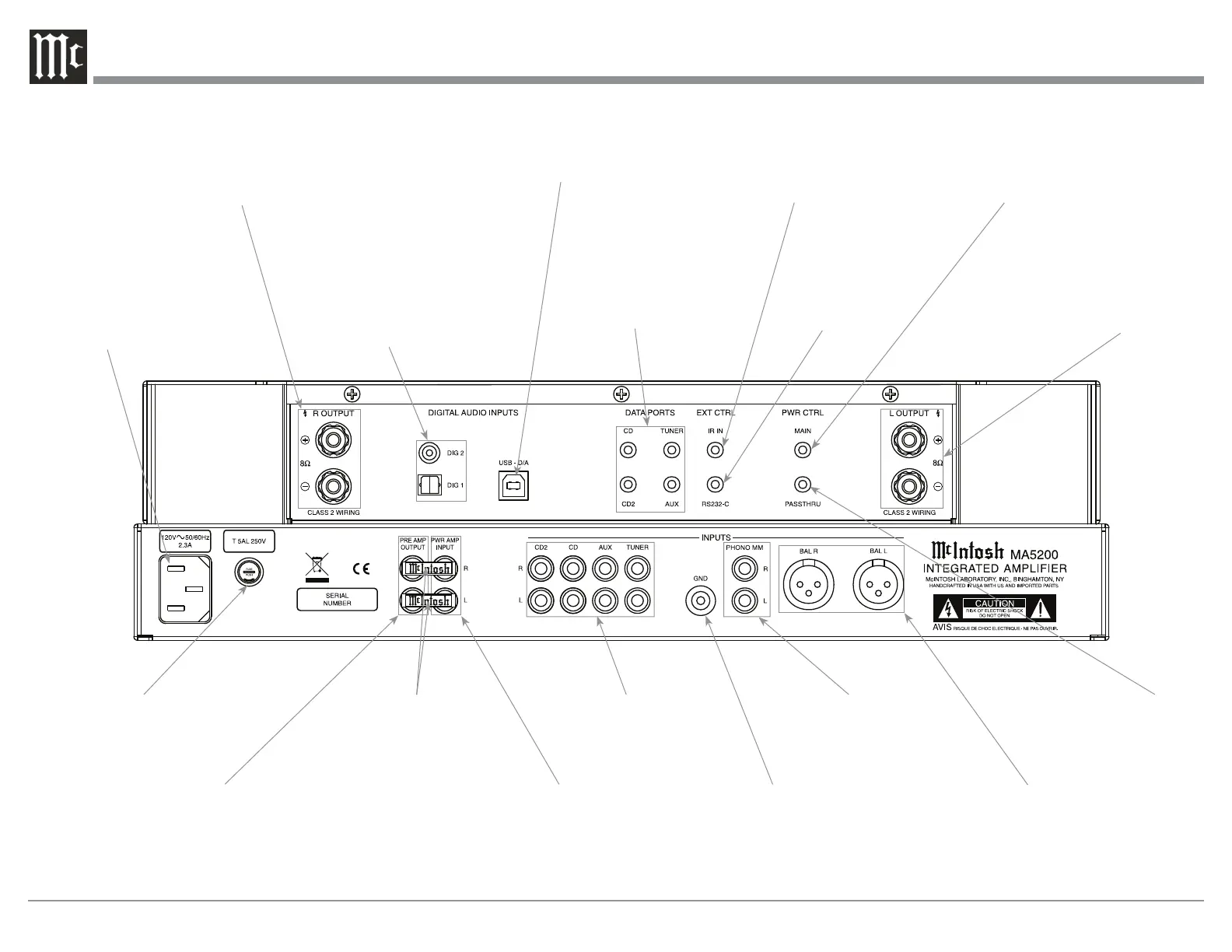

MA5200 Rear Panel Connections
RIGHT OUTPUT
connections for
an 8 ohm
Loudspeaker
CD2, CD, AUX and
TUNER INPUTS accept
high level program source
signals
PHONO MM accepts signals
from a Moving Magnet Phono
Cartridge or a high output
Moving Coil Cartridges
GND terminal
accepts a ground
wire from a
turntable
BALanced INPUTS
accept high level pro-
gram source signals
PREAMP OUTPUT sends
signals to the internal Power
Amplifier or to an external
Power Amplifier
PWR AMP INPUT accepts
signals from the internal
Preamplifier or a separate
external Preamplifier
JUMPER PLUGS connect
the Preamp Output to the
PWR AMP Input and are
required for normal operation
POWER CONTROL MAIN Output
sends turn On/Off signals to a
McIntosh Component when the
MA5200 is switched On/Off
PASSTHRU Power Control
Input receives turn On/
Off signals from an Audio/
Video Control Center
DATA PORTS send signals
to Source Components
to allow control with the
MA5200 Remote Control
RS232-C connector
1
for connection to a
computer or other
control device
IR INput for
signals from a
compatible IR
Room Sensor
DIGITAL AUDIO INPUTS
for components with Digital
2SWLFDODQG&RD[LDO
Outputs sending digital
audio signals
USB D/A Digital Audio
Input for connection to
a computer
Connect the MA5200 power cord
to a live AC outlet. Refer to infor-
mation on the back panel of your
MA5200 to determine the correct
voltage for your unit
Main Fuse holder, refer to
information on the back panel of
your MA5200 to determine the
correct fuse size and rating
LEFT OUTPUT
connections for
an 8 ohm
Loudspeaker
1
Refer to page 4 for additional
cable information.
