7
Installation
Installation
The MA5200 can be placed upright on a table or
shelf, standing on its four feet. It also can be custom
installed in a piece of furniture or cabinet of your
choice. The four feet may be removed from the bottom
of the MA5200 when it is custom installed as out-
lined below. The four feet together with the mounting
screws should be retained for possible future use if the
MA5200 is removed from the custom installation and
used free standing. The required panel cutout, ventila-
tion cutout and unit dimensions are shown.
Always provide adequate ventilation for your
MA5200. Cool operation ensures the longest possible
operating life for any electronic instrument. Do not
install the MA5200 directly above a heat generat-
ing component such as a high powered amplifier. If
all the components are installed in a single cabinet, a
quiet running ventilation fan can be a definite asset in
maintaining all the system components at the coolest
possible operating temperature.
A custom cabinet installation should provide the
following minimum spacing dimensions for cool
operation.
$OORZDWOHDVWLQFKHVFPDERYHWKHWRS
LQFKHVFPEHORZWKHERWWRPDQGLQFKHVFP
on each side of the Integrated Amplifier, so that
DLUIORZLVQRWREVWUXFWHG$OORZLQFKHVFP
GHSWKEHKLQGWKHIURQWSDQHO$OORZLQFKFP
in front of the mounting panel for knob clearance. Be
sure to cut out a ventilation hole in the mounting shelf
according to the dimensions in the drawing.

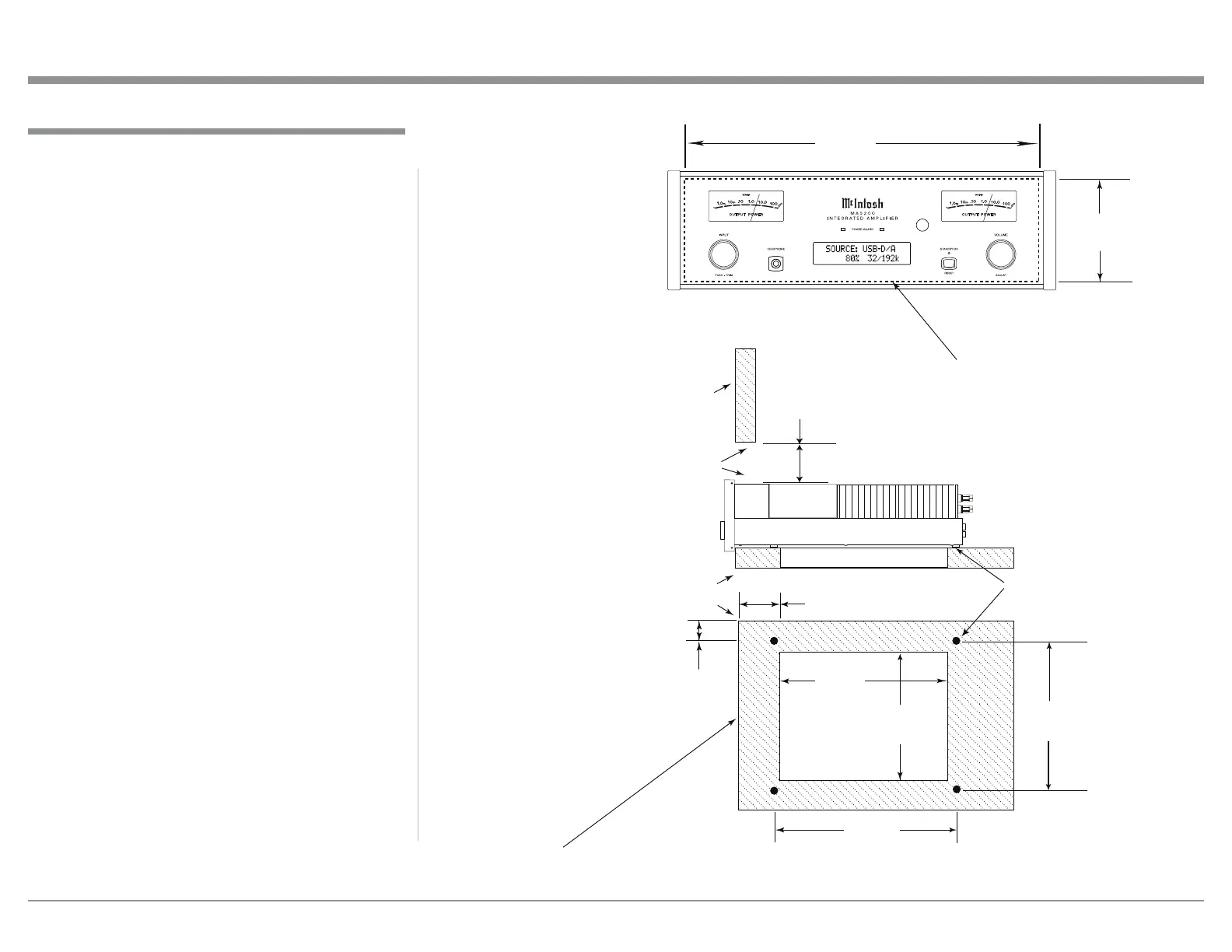

Cutout Opening for Custom Mounting
MA5200 Front Panel
Custom Cabinet Cutout
Cutout Opening
for Ventilation
Cutout Opening for Ventilation
Support
Shelf
Cabinet
Front
Panel
Chassis
Spacers
MA5200 Side View
in Custom Cabinet
MA5200 Bottom View
in Custom Cabinet
1"
2.5cm
Note: Center the cutout Horizontally on the unit.
For purposes of clarity, the above
illustration is not drawn to scale
6"
15.2cm
Opening
for Ventilation
15-1/16"
38.3cm
13-5/16"
33.8cm
2"
5.1cm
17-3/16"
43.7cm
4-7/8"
12.9cm
14-1/2"
36.8cm
13"
33cm
