McIntosh MA5200 User Manual

16

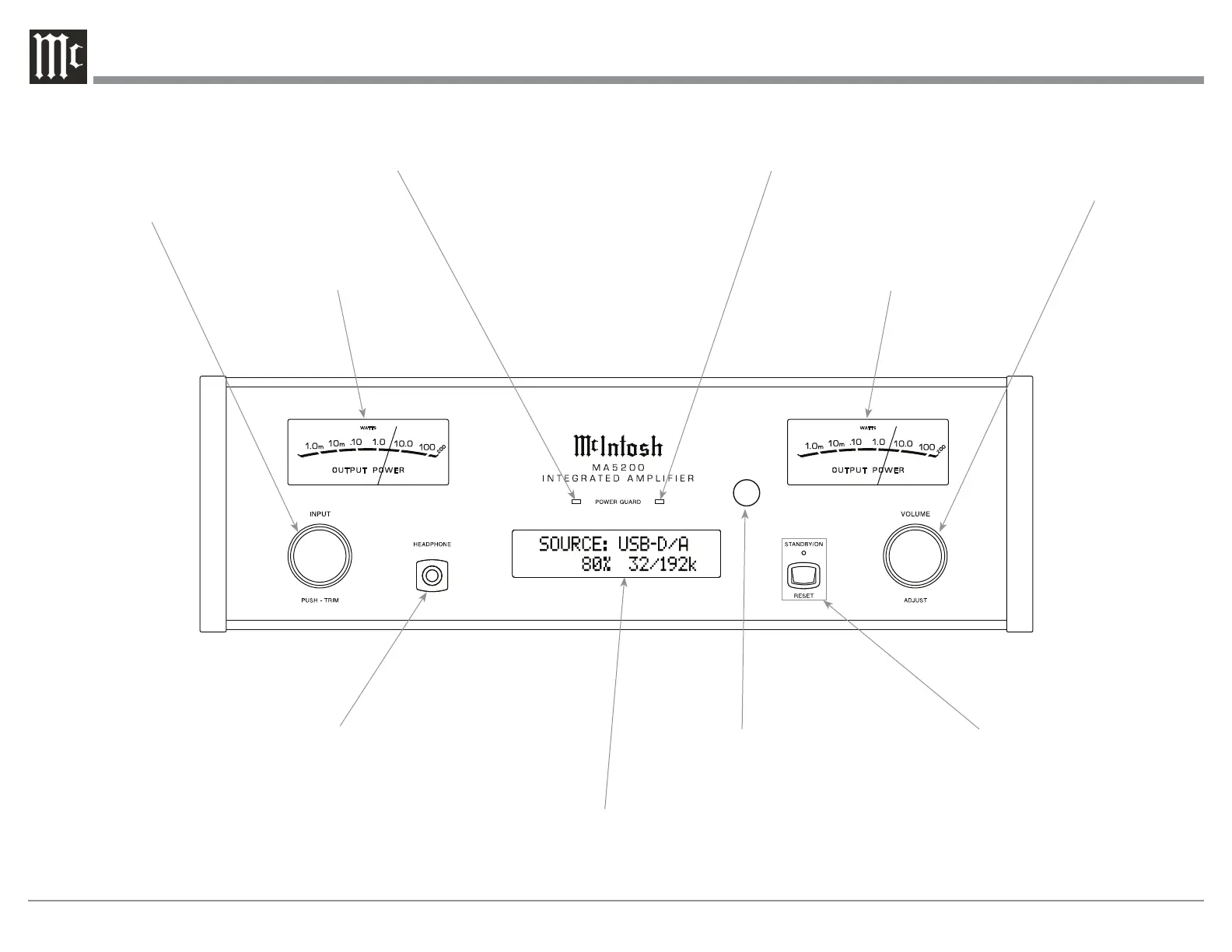

IR Sensor receives
commands from a
Remote Control
STANDBY/ON Push-button with indica-
tor switches the MA5200 ON or OFF
6WDQGE\DQGUHVHWVWKHPLFURSURFHVVRUV
VOLUME Control allows adjust-
ment of the listening level for both
channels.
ADJUST is also used in the setup
mode for various functions
Connection for dynamic
type headphones, for
private listening
INPUT Control allows the selection
of various sources for listening and
recording.
TRIM allows selection of various
types of audio settings. It is also
used in the setup mode for various
functions
Meter indicates the
Right Channel Output
of the amplifier
LED indicates when the Left
Channel Amplifier POWER
GUARD circuit activates
Meter indicates the
Left Channel Output
of the amplifier
LED indicates when the Right
Channel Amplifier POWER
GUARD circuit activates
INFORMATION DISPLAY indicates the
Sources, Volume, other Audio Settings,
Operational Functions and Setup Mode
Settings

McIntosh MA5200 Specifications

General

Power Output per Channel	100 Watts
Number of Channels	2
Total Harmonic Distortion	0.005%
Input Impedance	20k ohms
Rated Power Band	20Hz to 20kHz
Dynamic Headroom	1.8dB
Preamplifier Output	Yes
Dual Mono Power Supply	No
USB Input	1
Coaxial Input	1
Optical Input	1
Damping Factor	>200
Power Requirement	120V 50/60Hz
Digital Inputs	Coaxial, Optical, USB
Frequency Response	+0, -0.5dB from 20Hz to 20kHz +0, -3dB from 10Hz to 100kHz
