Rear Loader
44
8
3
1
2
5
6
7
4

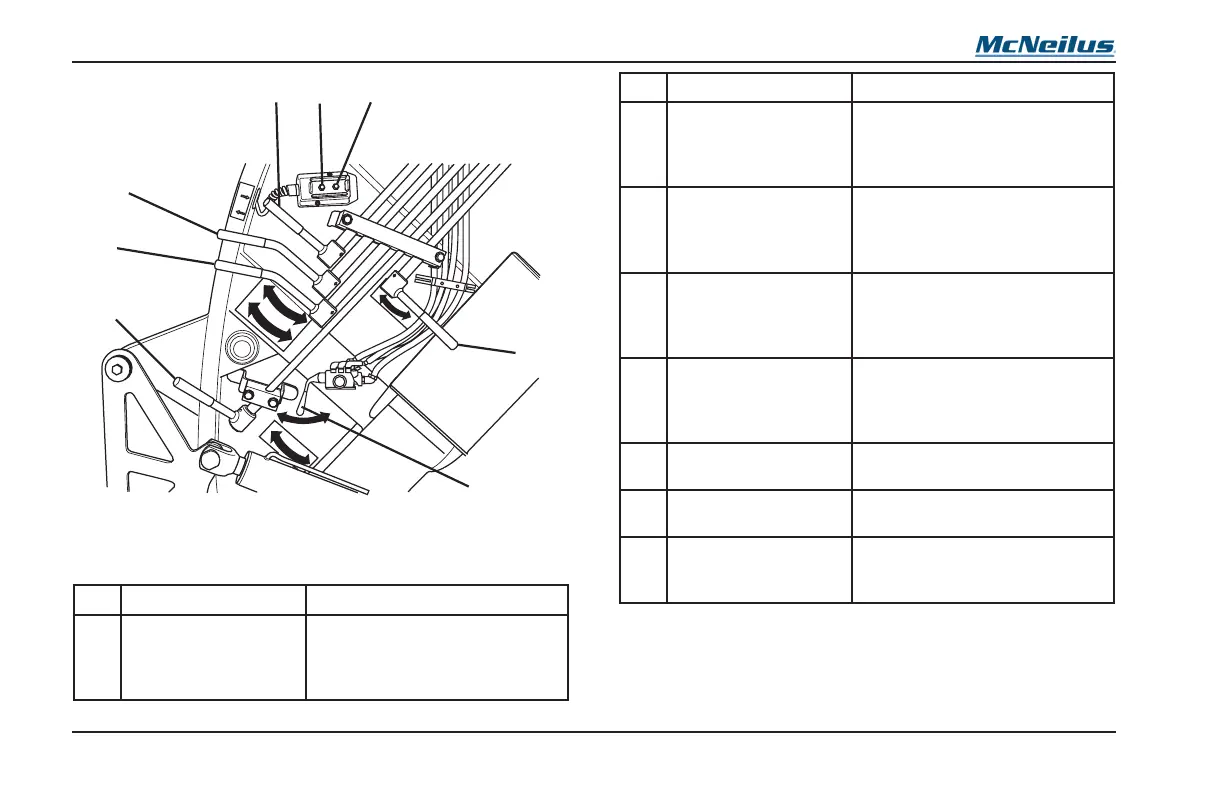

Figure 11
The following table describes the controls shown in Figure 11.
No. Position Normal Use or Reading
1
SWEEP/PACKER
Lever
Push control lever FORWARD to
raise the sweep panel.
Pull control lever BACK to lower
the sweep panel.
No. Position Normal Use or Reading
2 SLIDE Control Lever
Push control lever FORWARD to
retract slide panel.
Pull control lever BACK to extend
slide panel.
3
CART TIPPER Control
Lever (Optional)
Push control lever FORWARD to
lower cart tipper.
Pull control lever BACK to raise
cart tipper.
4
TIPPER BAR Control
Lever (Optional)
Push control lever FORWARD to
lower tipper bar.
Pull control lever BACK to raise
tipper bar.
5
WINCH or REEVING
CYLINDER Control
Lever (Optional)
Push control lever FORWARD to
retract cable.
Pull control lever BACK to extend
cable.
6
WORK LIGHTS
(Optional)
Turn on work lights as equipped.
7
CAB BUZZER
(Optional)
Push and hold to sound buzzer
in cab.
8
CONTAINER STOP
Control Lever
(Optional)
The container stop lever may be
in locations 3, 4, 5, or 8 depending
on the truck options.
Operation
