McQuay M5CKY28ER User Manual

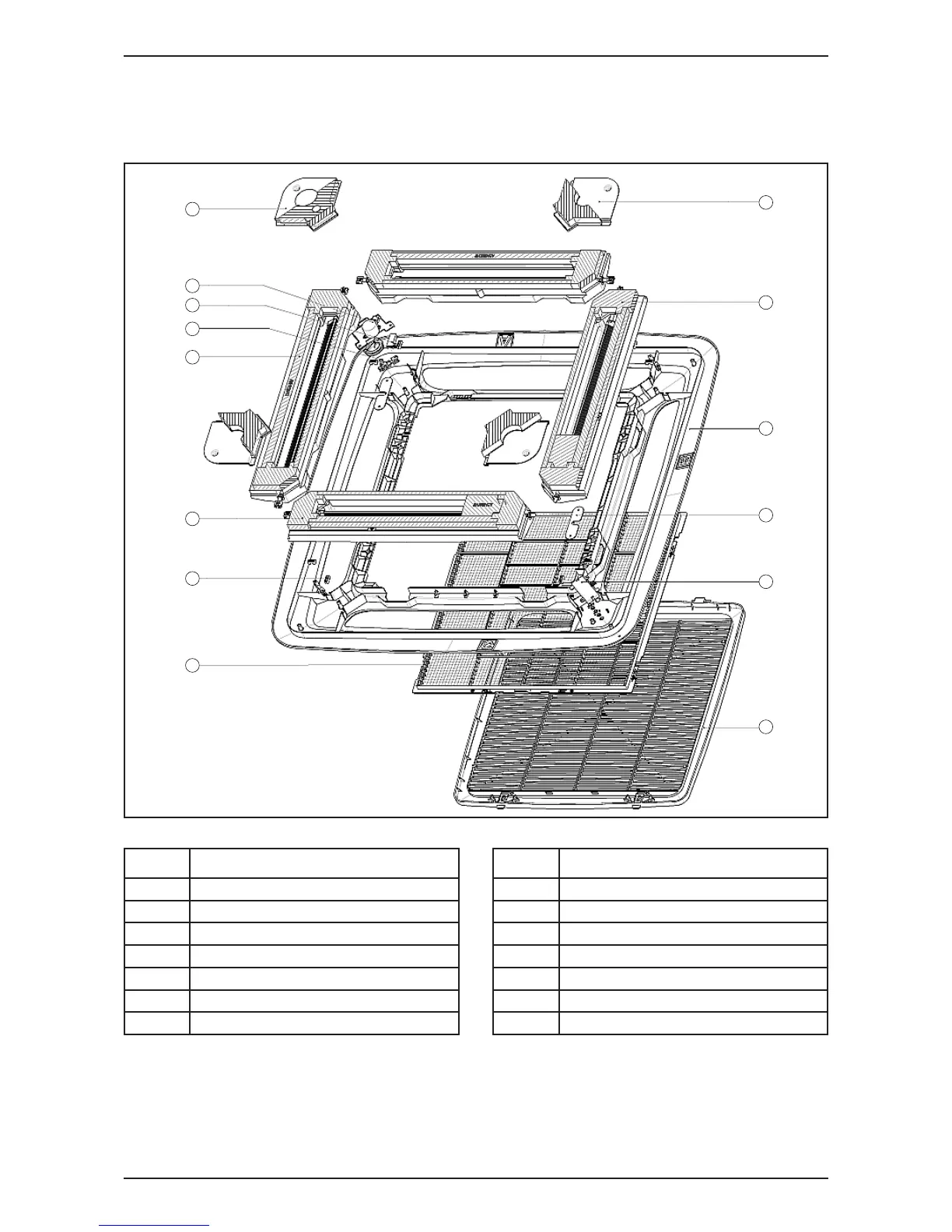

Exploded View and Part List M5LCY-II_(i)
52
Exploded View and Part List
Indoor Unit
Model: PLCKY-ER
12
4
13
7
10
8
3
5
11
6
1
14
9
2
70024109309
No Description
1 Front, Frame
2 Assy., Intake Grille
3 Assy., Air Discharge Main
4 Assy., Air Discharge Main Right
5 Assy., Air Discharge Main Left
6 Air Filter, CK-A/AR
7 Assy., Air Swing Motor
No Description
8 Crank Connector
9 Assy., LED
10 Wire, Guide
11 Cover, Cross Connector
12 Assy., Cover Corner A
13 Assy., Cover Corner B
14 Mounting Plate
