McQuay M5CKY28ER User Manual

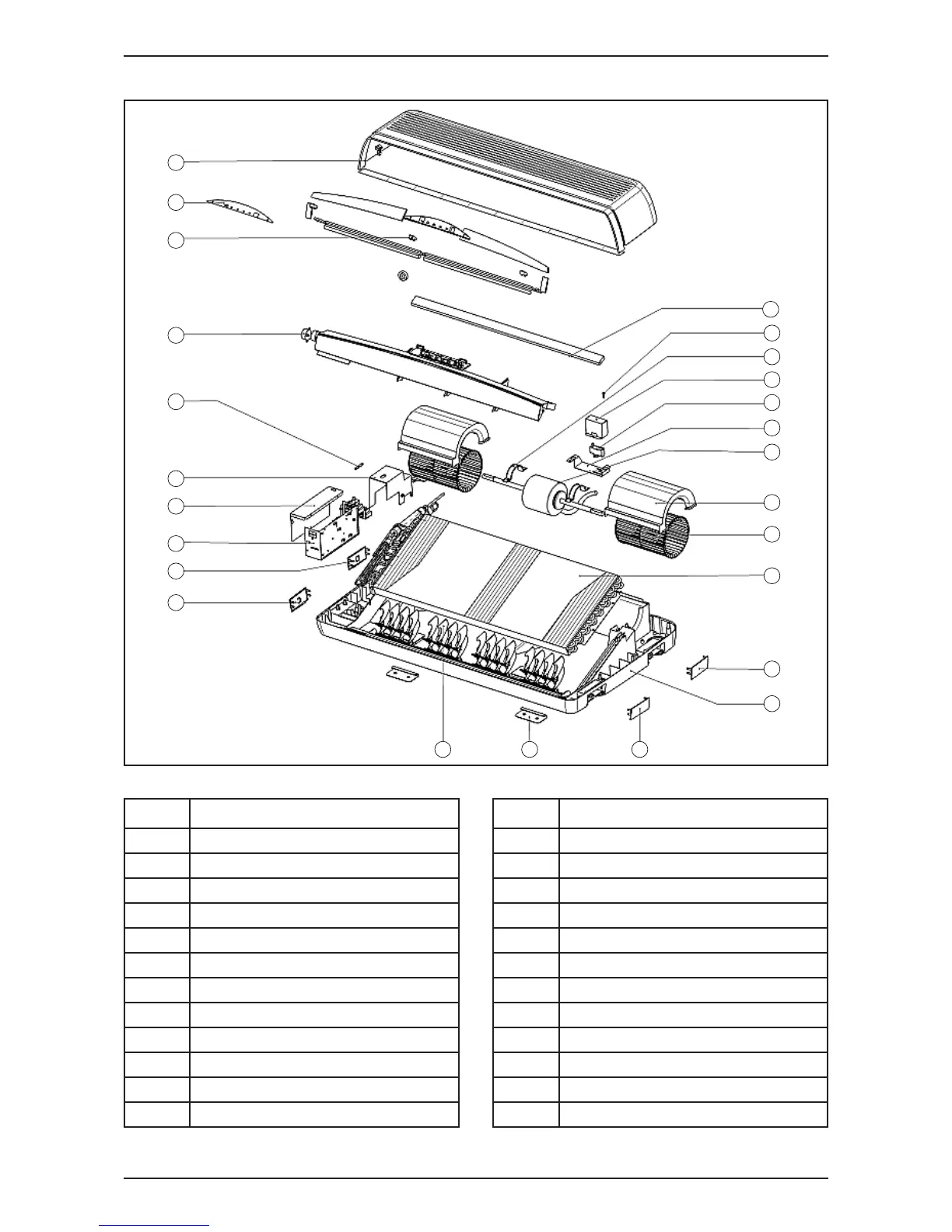

Exploded View and Part List M5LCY-II_(i)
60
Model: M5CMY28ER
4
24
22
23
21
7
10
9
2
17
1
16183
8
12
21
11
13
20
19
15
14
5
6
70024108764
No Description
1
Assy. Top Panel
2
Assy. Coil Indoor
3
Assy. Vane
4
Assy. Ins. Drain Pan
5 Assy. Control Box
6 Cover, Terminal Box
7 Motor, MCE28E-501 4P 70W 1PH
8 Bracket, Motor
9 Blower
10 Housing, Blower Top
11 Motor, Air Swing
12 Assy., Bottom Panel
No Description
13 Cap Screw
14 Cover, Hanger Left 1
15 Cover, Hanger Left 2
16 Cover, Hanger Right 1
17 Cover, Hanger Right 2
18 Mounting Bracket
19 Cover, Control Box
20 Clamp, Wire
21 Bracket, Capacitor
22 Cover, Capacitor
23
Capacitor
24
Screw, PH Binding Head 8x3/4” A

McQuay M5CKY28ER Specifications

General

Brand	McQuay
Model	M5CKY28ER
Category	Air Conditioner
Language	English
