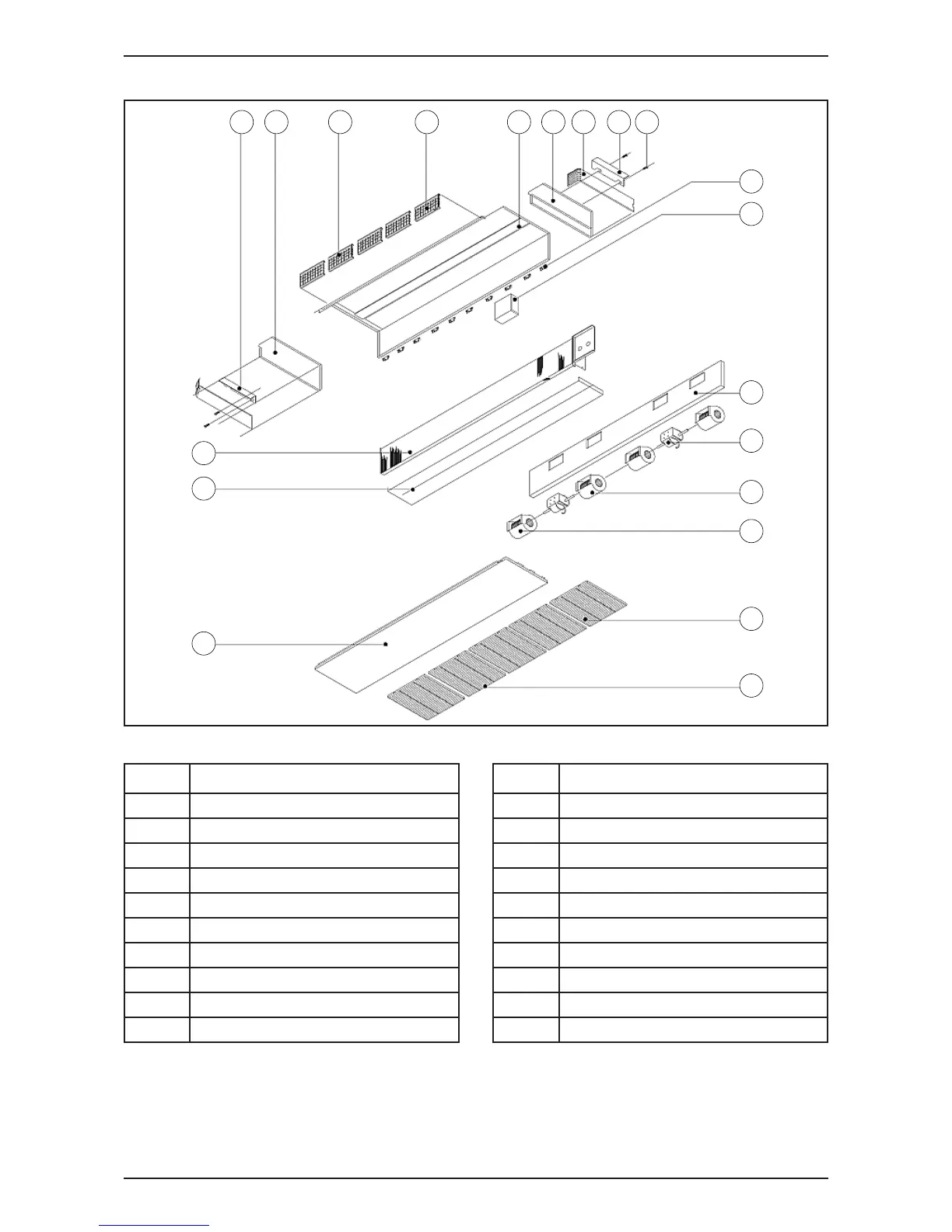

M5LCY-II_(i) Exploded View and Part List
63
Model: M5CMY62CR
9 2 15 16 1 8 17 11 10
18
14
4
5
6
7
19
20
13
12
3
70024108767
No Description
1
Assy. Top/Back Panel
2
Assy. Coil Holder - L
3
Assy. Coil
4
Assy. Fan Deck
5 Motor, MCC20C-504 4P 80W 1PH
6 Assy., Blower SYP160/200L
7 Assy., Blower SYP160/200R
8 Assy., Coil Holder - R
9 Hanger, Bracket L/H
10 Bolt, Dome Head Hex.
No Description
11 Hanger, Bracket R/H
12 Assy., Drain Pan
13 Panel, Bottom
14 Assy., Control Box
15 Assy., Air Discharge
16 Assy., Air Discharge LED Logo
17 Assy., Side Panel
18 Hook
19 Air Intake Grille C/W Filter 390mm
20 Air Intake Grille C/W Filter 350mm
To Next Page
