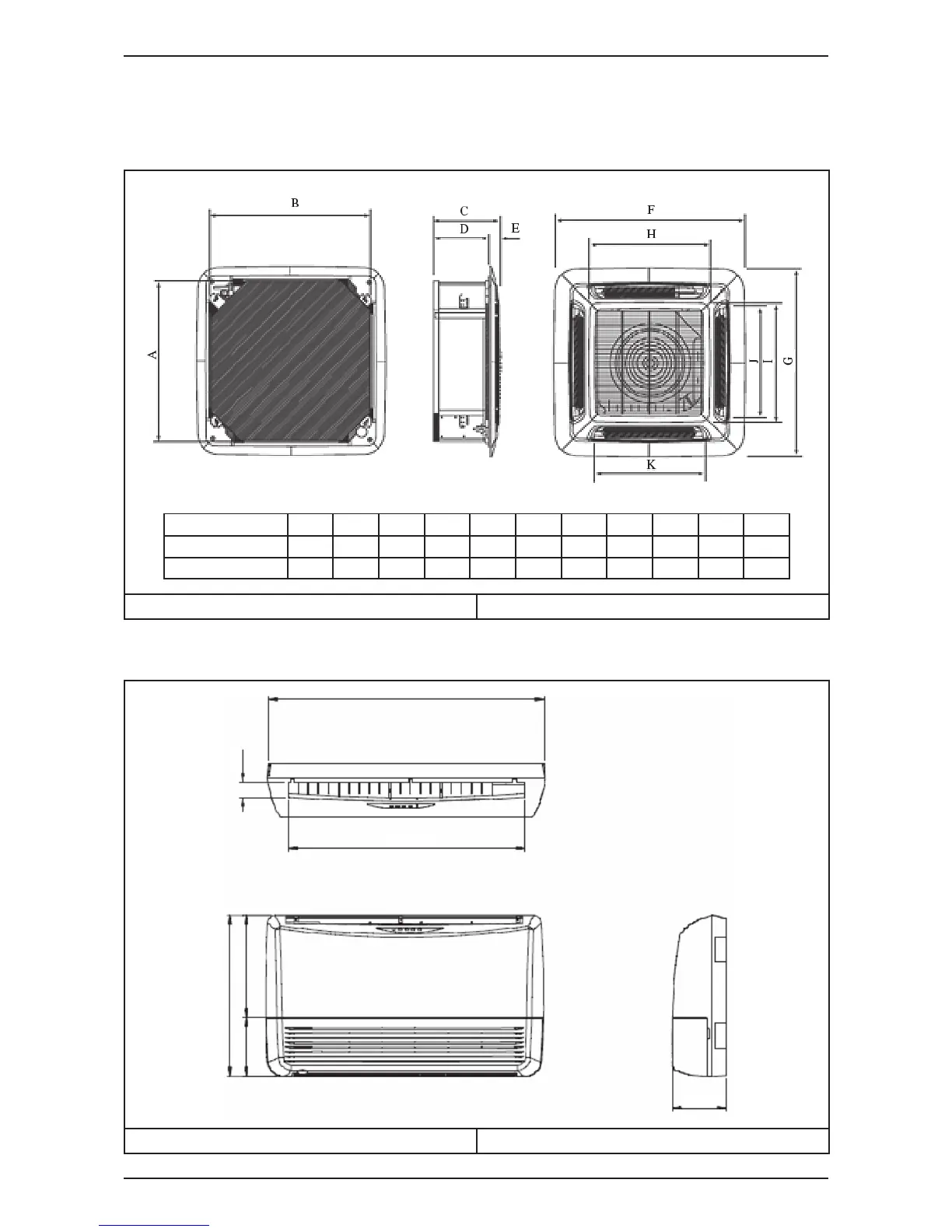

Outlines & Dimensions
M5LCY
-II_(i)
30
Outlines & Dimensions
Indoor Unit
Model: M5CKY 28/40/50ER
Model
A
B
C
D
E
F
G
H
I
J
K
M5CKY 28ER
820
820
340
300
40
990
990
627
627
607
430
M5CKY 40/50ER
820
820
375
335
40
990
990
627
627
607
430
Drawing number: -
Note: Dimension in mm
Indoor Unit
Model: M5CMY 28ER
1080.0
928.0
218.0
65.0
630.0
400.0
230.0
Drawing number: -
Note: Dimension in mm
28
30
Table of Contents
Table of Contents
2
Nomenclature
3
Indoor Unit
3
Outdoor Unit
3
Product Line-Up
4
Application Information
6
Operating Range
6
Refrigerant Circuit Diagrams
7
Installation Guideline
8
Cable Size
12
Refrigerant Piping
12
Additional Charge
12
Sound Data
13
Sound Pressure Level
13
NC Curve
16
Engineering & Physical Data
22
Safety Device
28
Outlines & Dimensions
29
Wiring Diagrams
33
Model
40
Model
41
Model
42
Model
43
Service & Maintenance
44
Model
45
Troubleshooting
46
Model
47
Exploded View and Part List
51
Model
52
Model
53
Model
54
Model
55
Model
56
Model
57
Model
58
Model
59
Model
60
Model
61
Model
62
Model
63
Model
64
