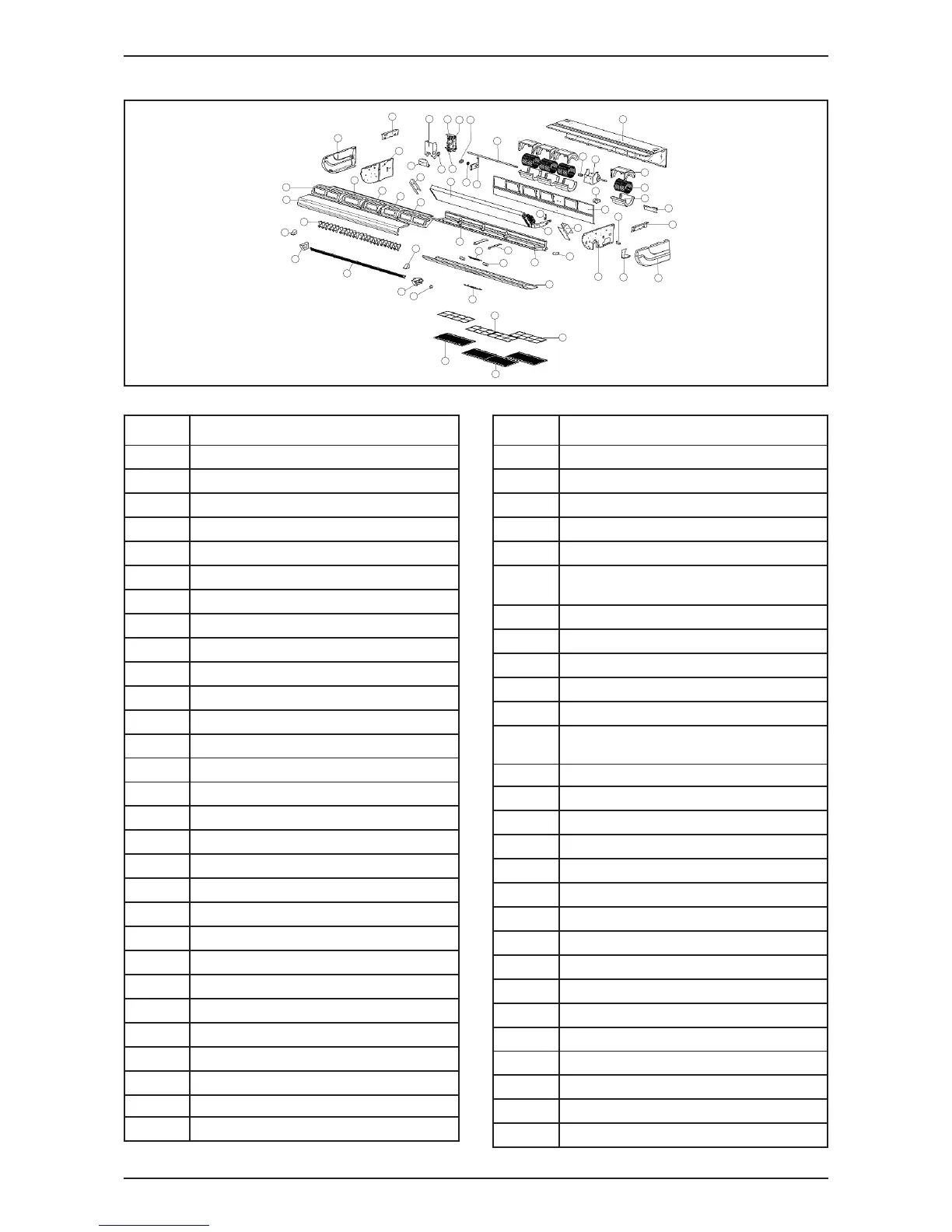

Exploded View and Part List M5LCY-II_(i)
62
Model: M5CMY50ER
34
53
14
51
11
13
12
17
50
10
31
30
36
45
41 32
40
44
43
42
49
7
52
3
16
28
26
19
2
9
5
4
57
6
15
46
56
55
20
23
21
22
25
18
27
24
33
37
38
35
39
29
54
47
8
48
1
70024108766
No Description
1
Assy. Panel Top/Back
2
Panel Front
3
Foam, Discharge Left
4
Foam Discharge Center A
5 Foam Discharge Center B
6 Foam, Discharge Right
7 Assy., Bracket Left
8 Assy., Bracket Right
9 Assy., Coil Expanded
10 Support, Coil Right
11 Support, Coil Left
12 Assy., Liquid Tube
13 Assy., Gas Tube
14 Assy., Valve Plate
15 Assy., Drain Pan
16 Assy., Vane
17 Support, Louver
18 Ins., Discharge Right
19 Ins., Discharge Left
20 Panel, Bottom
21 Panel, LED
22 Assy., Mounting LED
23 Ins., Stopper Bottom Panel
24 Cover, Louver Right
25 Motor, STCE50E-117MNM
26 Assy., Louver
27 Assy., Intake Grille A (467mm)
28 Cover Louver Left
29 Assy., Panel Fan Deck
No Description
30 Bracket, Bearing
31 Bearing, Assy. CE (4PAD4079C)
32 Bracket, Bearing Fixing
33 Blower Wheel - 2PA51505
34 2PA54302D Fan Housing -1-FHYJ140
35 Coupling, Rubber DIA. 14MM
(R3763650G)
36 Shaft, Diameter 15-L829 (3PA54347E)
37 2PA54303D Fan Housing -1-FHYJ140
38
Motor, CE50E 4P 149W 1PH
39
Cover, Capacitor
40 Assy., Metal Control Box
41 CTRL MODULE,5CEY50E/ER EC/AP
C201AMVBA0A
42 Assy., Cover Control Box
43
Bush, Rubber
44
Terminal Block, T3020A-1-4P-C1.0 20A
45
Cover, Control Box
46
Filter, A (457.0)
47
Bracket, Drain Pipe
48
Bracket, Hanger Right
49
Bracket, Hanger Left
50
Support, Fan Deck
51
Drain Hose, Flexible
52 Panel, Left
53 Panel, Right
54
Assy., Cover Connector
55
Assy., Intake Grille B (358mm)
56
Filter, B (348.0)
57
Foam, Discharge Center C
