McQuay M5CKY28ER User Manual

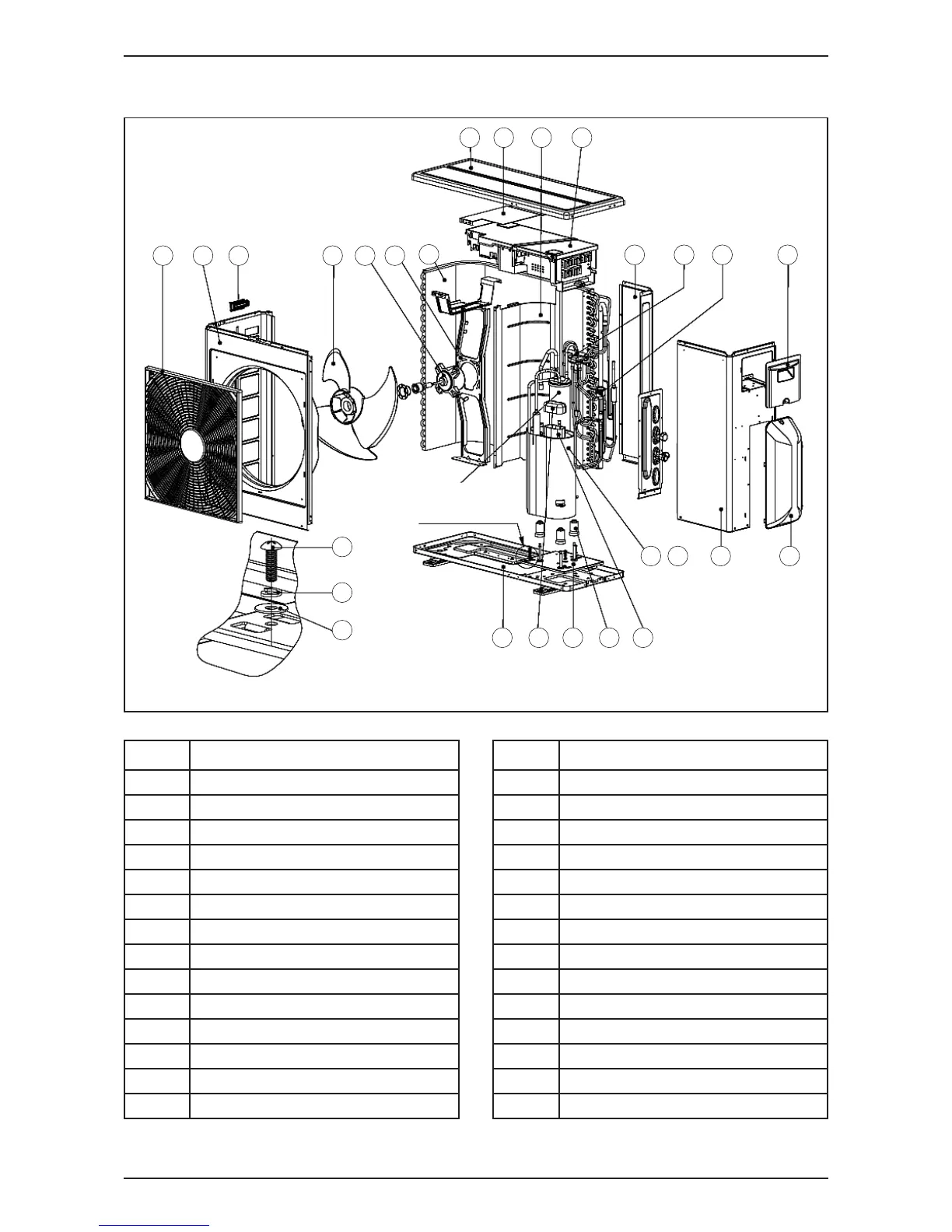

Exploded View and Part List M5LCY-II_(i)
64
Outdoor Unit
Model: M5LCY28CR
10 12 13
7
24 8 11 14
2
15 15
23 28 26
2527 22 9
193201
6
5
4
17
21
DETAIL A
SCAKE 0.400
SEE DETAIL A
70014113428
No Description
1
Assy., Panel Base
2 Assy., Condensor Coil
3
Assy., Comp Mounting Plate
4 Flat Washer
5 Washer, Spring
6 Screw, Truss Head Philip M6x20
7 Assy., Panel Right Back
8 Panel, Front/Left
9 Panel, Service
10 Assy., Panel Top
11 Plastic, Handle
12 Partition
13 Assy., Control Box (5SLY28CR)
14 Motor, Bracket
No Description
15 Assy., Propeller Fan (2P160641-1)
16 Motor, M5MSY20/25/30BR-1 53W
17 Grommet, Compressor 2YC Daikin
18 Daikin Accumulator
19 Daikin Compressor 2YC45DXD
20 Terminal Cover, Daikin 2YC
21 Plate, Seal Board
22 Assy. Valve Plate with Flare Valve
23 Assy., 4 Way Valve
24 Plastic, Front Grille
25 Plastic, Valve Cover
26 Access, Cover
27 Compressor, Felt
28 Assy., EXV
