Application Information M5LCY-II_(i)
8

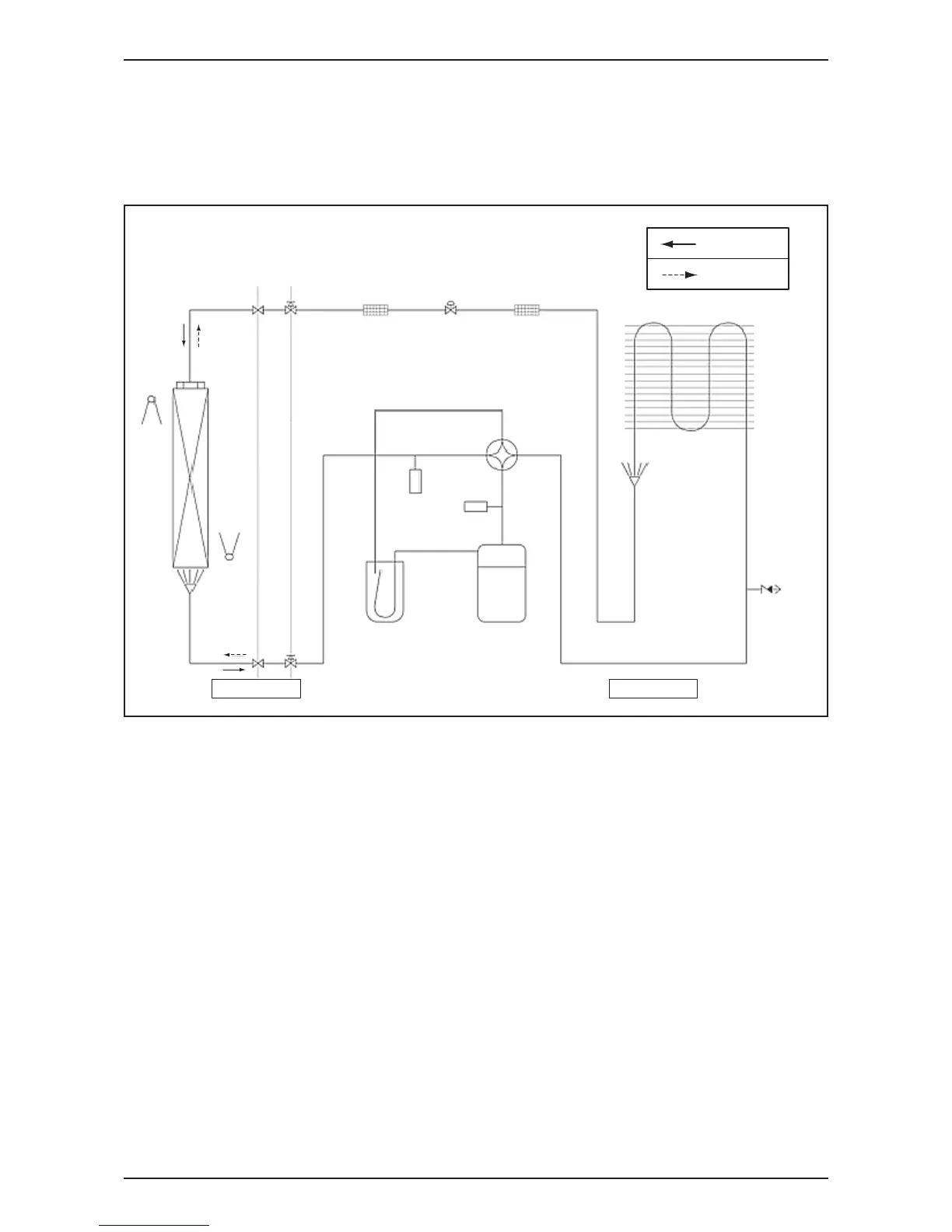

Refrigerant Circuit Diagrams
Model: M5CKY28ER / M5CMY28ER / M5CCY28CR – M5LCY28CR
M5CKY40ER / M5CMY40ER / M5CCY38CR – M5LCY40FR
M5CKY50ER / M5CMY50ER / M5CCY50CR – M5LCY50FR
M5CMY62CR / M5CCY60CR – M5LCY60FR
Cooling
Heating
ELECTRONIC
EXPANSION
VALVE
SERVICE PORT
5/16°
ACCUMULATOR COMPRESSOR
HIGH PRESSURE
SWITCH
LOW PRESSURE
SENSOR
4 WAY VALVE
HEAT EXCHANGER
THERMSTOR
HEAT EXCHANGER
(INDOOR UNIT)
AIR
THERMSTOR
FILTER FILTER
STOP VALVE
OUTDOOR UNITINDOOR UNIT
Part Number: 70034108870
