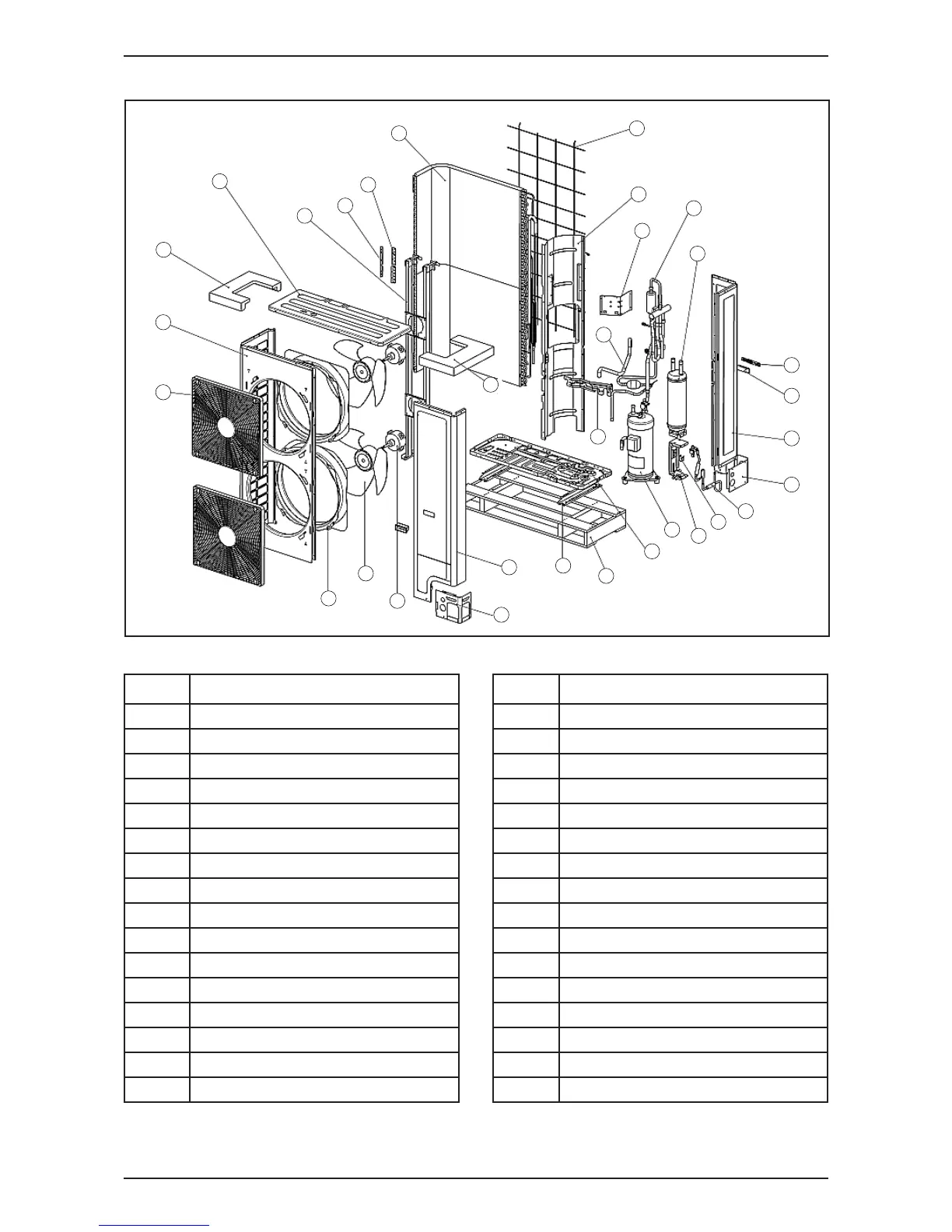

M5LCY-II_(i) Exploded View and Part List
65
Model: M5LCY40/50/60FR
1
2
3
4
5
6
7
8
9
10
11
12
15
14
31
16
17
18
19
22
23
24
13
32
21
29
20
30
28
21
26
25
R70024116170
No Description
1
Cushion, Top Left
2 Front, Plate
3
Front, Grille
4 Bellmouth
5 Propeller, Fan
6 Motor
7 Cover
8 Panel, Service
9 Wooden, Crates
10 Bottom, Plate
11 Compressor
12 Bracket, Accumulator
13 Assy., EXV
14 Cover, Rear
15 Right, Side Plate
16 Thermistor Holder
No Description
17 Assy., Accumulator
18 Assy., 4WV
19 Reactor, Mounting Plate
20 Tube, Suction
21 Stop Valve, Mounting Plate
22 Partition Plate
23 Suction Grille
24 Assy., Outdoor Coil
25 Endplate, Hairpin
26 Endplate, Connector
27 Assy., Fan Motor Stand
28 Top, Plate
29 Cushion Top Right
30 Installation Leg
31 Plastic Handle Front
32 Clip, Muffl er
