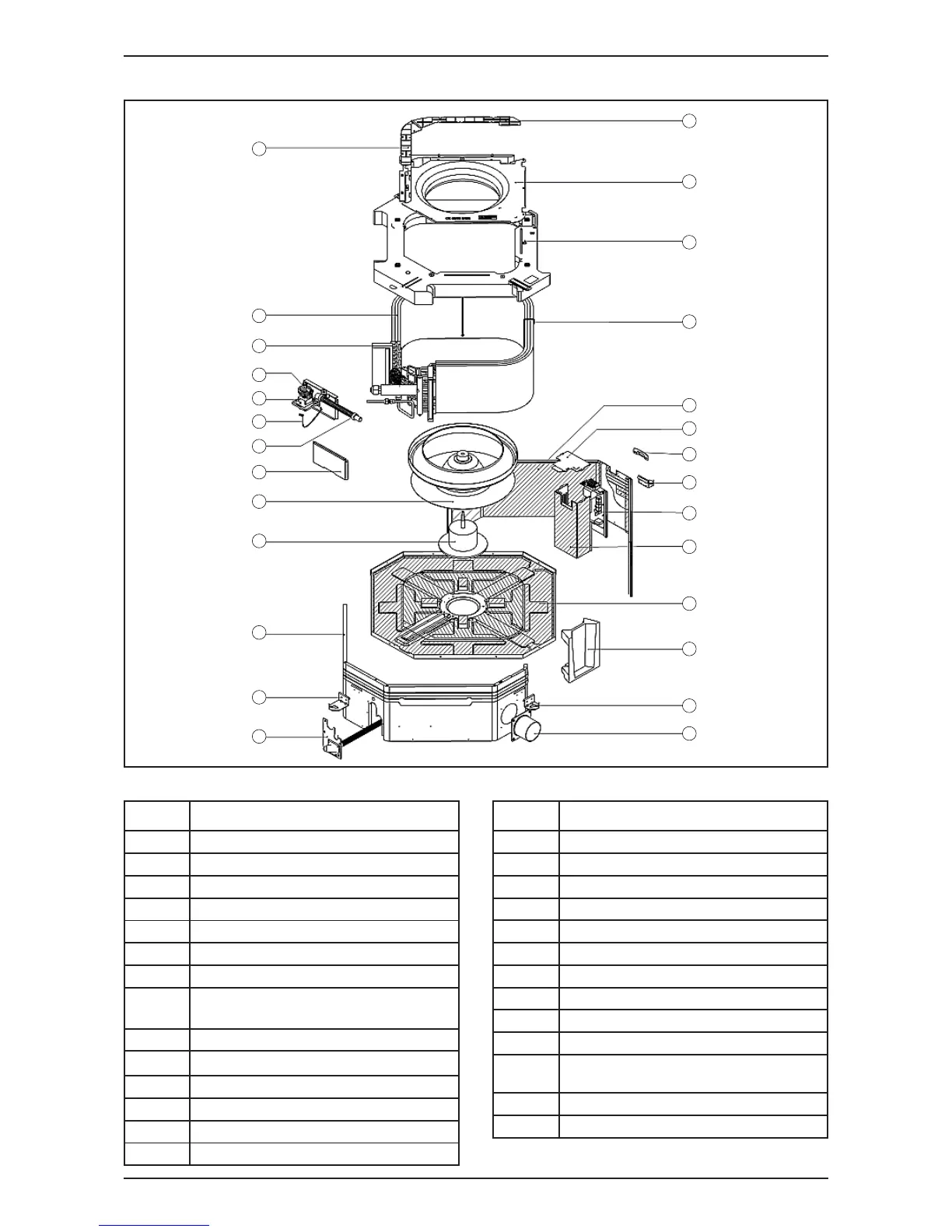

Exploded View and Part List M5LCY-II_(i)
54
Model: M5CKY40ER
15
10
9
14
24
5
13
17
12
11
1
22
20
19
16
2
23
26
25
27
8
7
6
18
21
3
4
70024108769
No Description
1 Assy. Base Pan
2 Assy. Coil
3 Assy. Coil Bracket
4 Assy. Drain Pump Support Bracket
5 Assy. Panel Side Back
6 Assy. Side Panel Front
7 Assy. Motor & Rubber
8 Blower, Turbo Fan DIA462 X 171.5
3P085496-1
9 Assy. Drain Pan
10 Assy. Fan Cover
11 Assy. Cover Control Box
12 Assy. Control Box
13 Assy. Cover Terminal
14 Support, Coil
No Description
15 Cover, Wire A
16 Cover, Wire B
17 Bracket, Hanger A
18 Bracket, Hanger B
19 Bracket, Hanger C
20 Fresh Air Adaptor
21 Assembly, Valve Plate
22 Assy. Air Guide
23 Assy. Partition Holder
24 Cover, Wire
25 Switch Water Level 1A - CK Drain
Pump
26 Pump, Water PC-04226-OYOB YCK
27 Hose, Drain PE 18.3 X 0.5 X 315.0
To Next Page
