McQuay M5CKY28ER

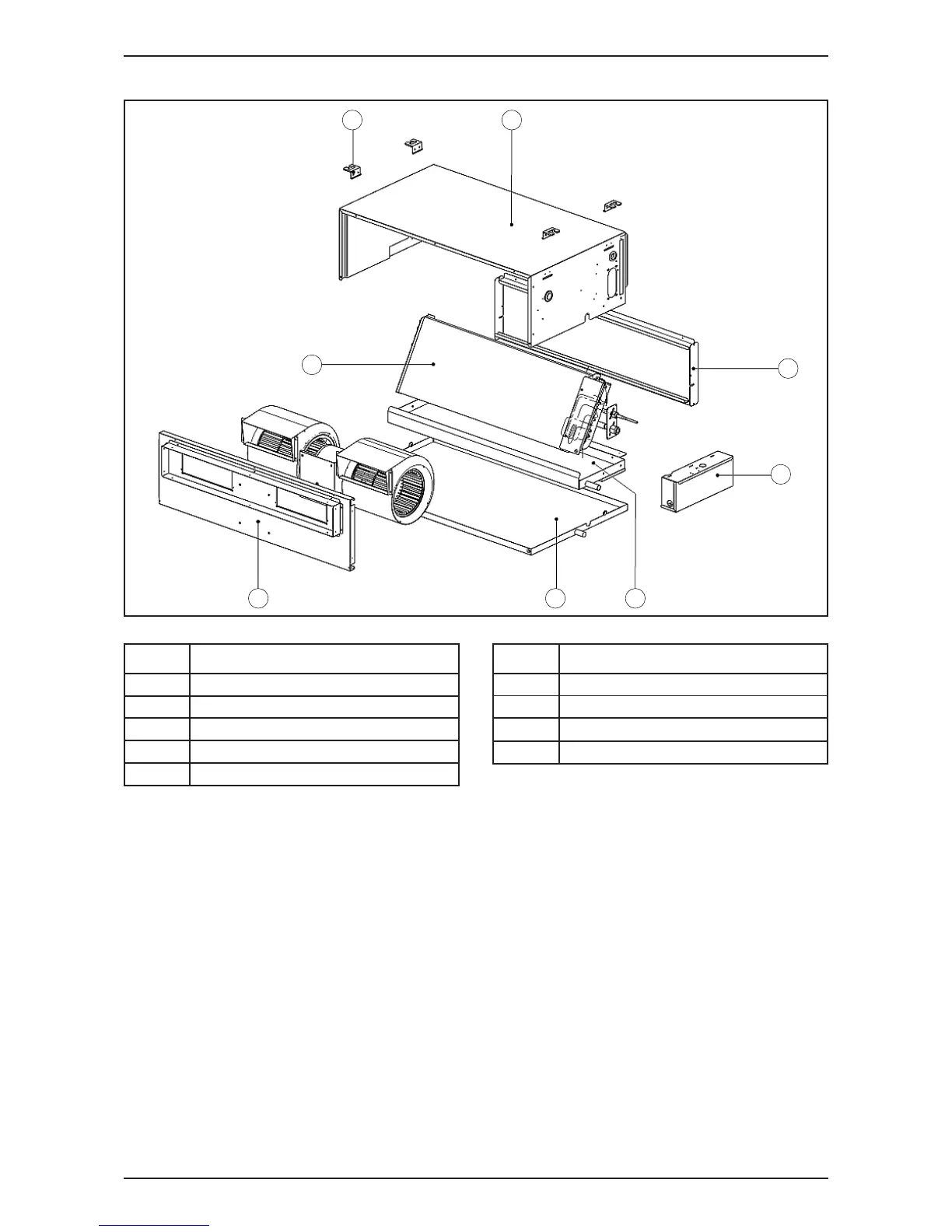

Exploded View and Part List M5LCY-II_(i)
56
Model: M5CCY28CR
9 1
3
2 6 5
8
4
70024108760
No Description
1
Panel Top
2 Assy., Panel Blower
3 Assy., Coil Main
4 Rail, Filter Cover
5 Assy., Drain Pan Small
No Description
6 Assy., Drain Pan Big
7 Filter, Saranet
8 Assy., Control Box
9 Hanger
